4.3 Connecting appliances
1. Start the engine. See section 4.2.2.
2. Wait 3 or 4 minutes before connecting the
appliances to allow the engine to warm up. Then
plug in the socket (X1).

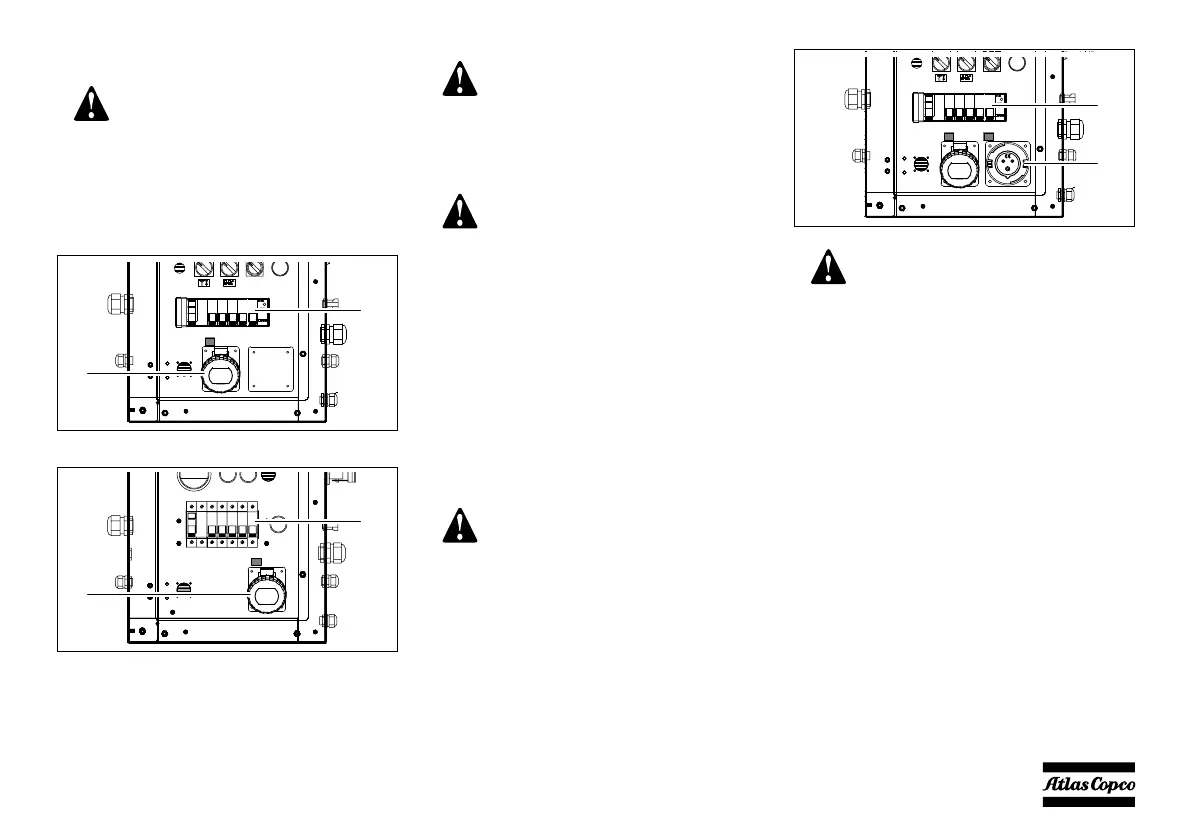

For cubicle with Lc1003™ controller
For cubicle with Lc1001™ controller
3. Make sure that a correct voltage is displayed.
4. Switch on circuit breaker Q6.
5. Switch on your appliance.
6. If circuit breaker Q6 trips (10 A), adjust the load
until it falls within the maximum power limit
allowed.
7. Make sure that the load does not exceed the
nominal power of the generating set as indicated
in the technical data sheet and guaranteed with a
tolerance of ± 5% when the engine has run in.
For derating values, check the derating table on
page 81.
8. Make sure the load does not exceed the nominal
current capacity of the socket or the cable
connected to it.
9. For cubicle with Lc1003™ controller, only
connect the light tower directly to the mains, if the
optional External power input (230 VAC) is
installed. In this case use the X2 socket (3).
10. Stop the engine. See section 4.2.8.
Keep in mind that this machine is a
light tower, not a generator set!
P1
H16
H3
1
2
Q2
1
2
Q3
1
2
Q4
1
2
Q5
N1
N2
Q1
1
2
Q6
Dimming
X1
Q6
X1
Power is limited to 10 Amps!
If the 4 lamps are switched ON and
the load of the socket is exceeded, an
Under voltage or Over current
alarm will be triggered and the
engine will shutdown.
Avoid long low-load periods
(< 30%). In this case, an output
drop and higher oil consumption of
the engine could occur. Refer to
chapter “Preventing low loads”.
To correctly disconnect the
appliances from the light tower
generator, first turn the switch to
OFF to isolate the electric load and
only then remove the plug.
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
X2
X1
Q6
X2
