5.4.2 Engine oil system
5.4.2.1 Engine oil level check
1. Make sure the light tower is standing level.
2. Switch off the engine and wait several minutes till
all engine oil has been collected in the crank
housing.
3. Remove the oil level dipstick (1) and swipe it
clean. Reinstall the oil level dipstick and screw it
tight. Unscrew the oil level dipstick and check the
oil level.
4. If the oil level is close to the MIN level indicator,
top up engine oil to the MAX level indicator.
5. Reinstall the oil level dipstick and screw it tight.

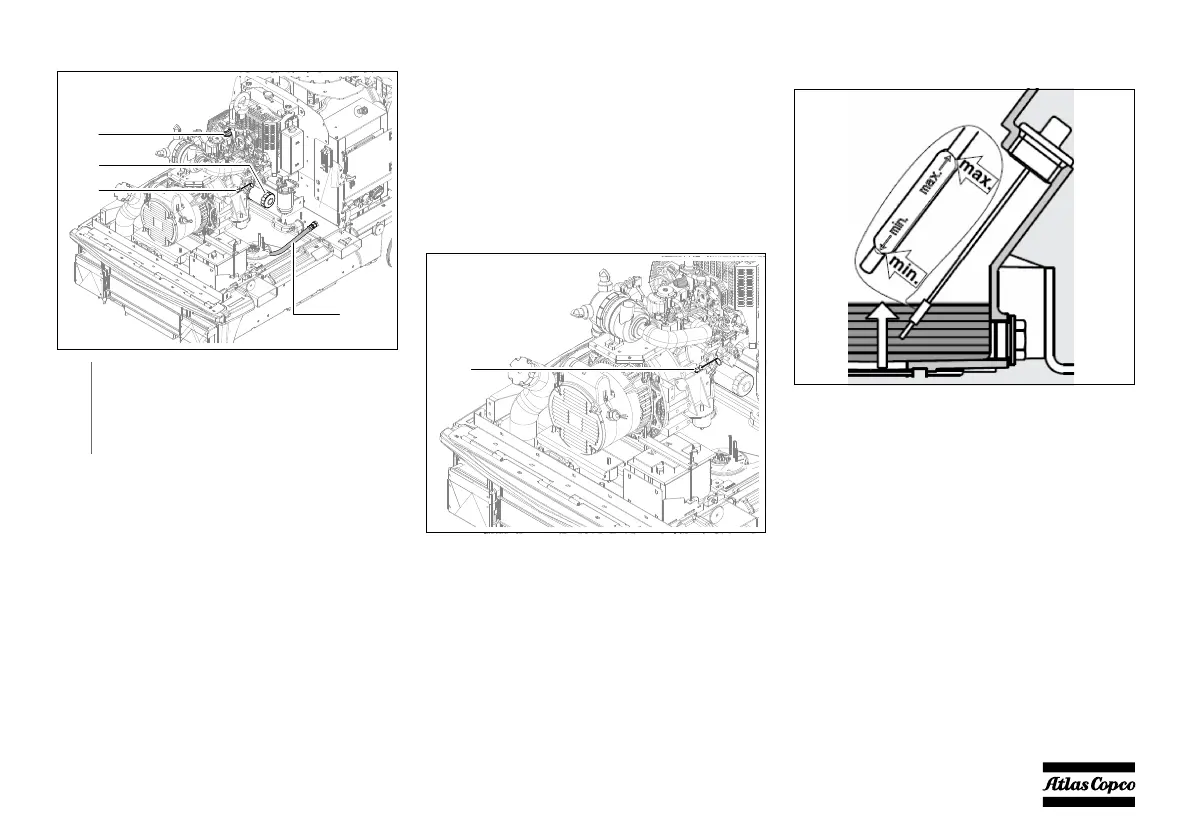

1 Oil drain hose
2 Dipstick
3 Oil filter
4 Oil filling point
