Atlas Copco HiLight H6+ Kd ESF User Manual

- 33 -

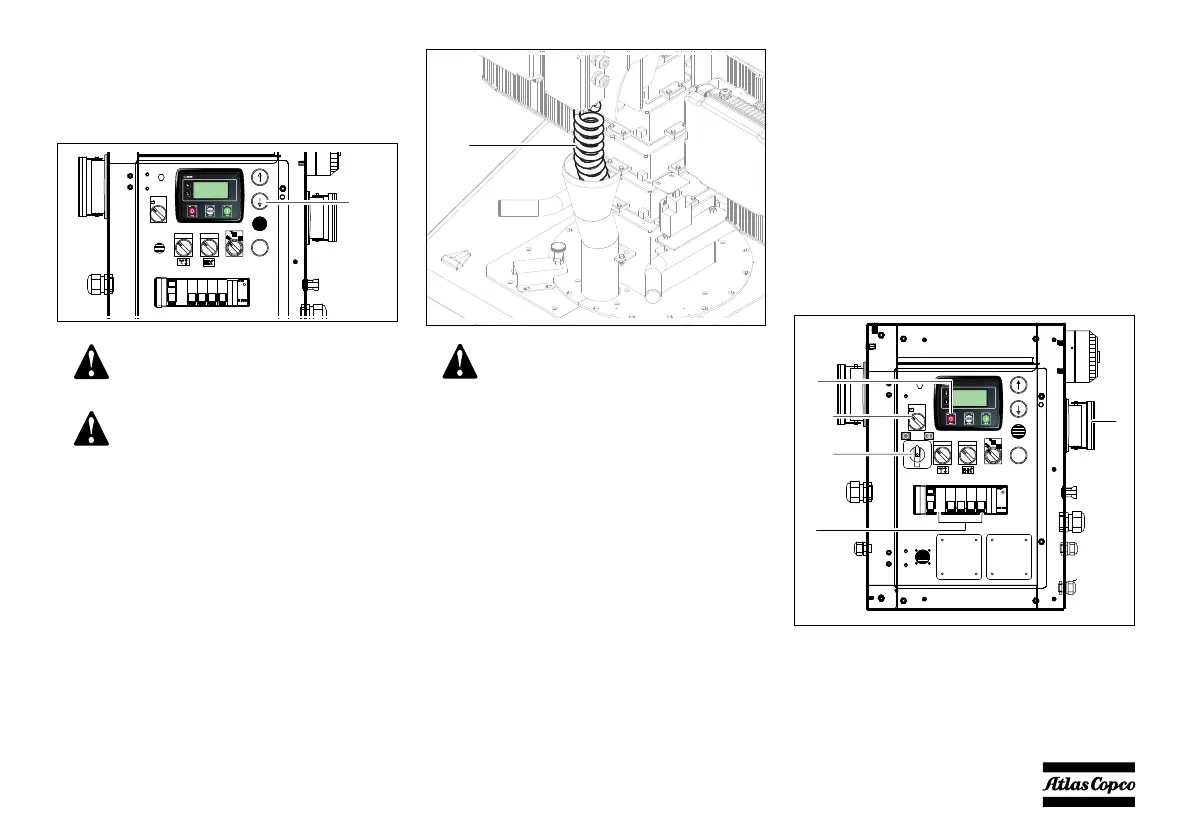

4.2.7 Lowering the mast
1. If the floodlights are not to be used again, lower
the mast using the DOWN button (S51) on the
control panel.
4.2.8 Stopping the engine
Follow the instructions below to switch the engine off
correctly:
1. Lower the mast. See section 4.2.7.
2. Disconnect the electrical appliances connected to
the socket (1), if applicable.
3. Push the STOP button on the Lc1003™ module
(2) to go into cool down.
4. After cool down, which takes approx. 30 sec.:
• For Lc1003™, put the starter switch S20 in
position O (OFF).
Mind your head while lowering the
mast!
When lowering the mast, check that
the power cord on the mast (spiral
cable (2)) collapses freely into its
holder and does not become pinched
or tangled!
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
S51
If an optional “Photocell” is
provided and the Auto start lighting
level option is enabled, the mast will
be lowered automatically.
A buzzer will indicate that the mast
is moving.
2
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
GE
S10
3
S10
S20
2
1
00_00_HiLight H6+_EN.book Page 33 Friday, June 4, 2021 11:52 AM
