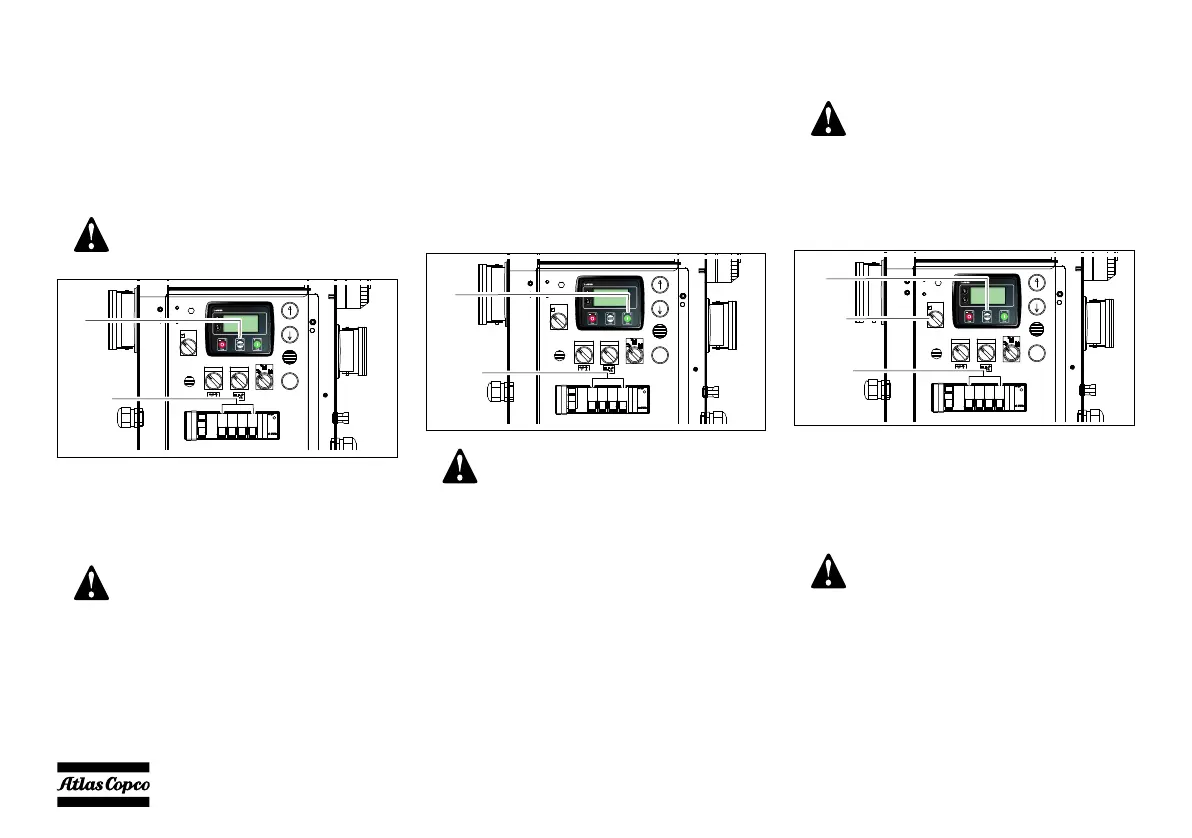

4.2.6 Switching on/off the floodlights
4.2.6.1 Switching on the floodlights
manually
1. Make sure the mast is up and in the desired
operating position. See section 4.2.4.
2. Switch ON the 4 circuit breakers (Q2-5).
3. Push the AUTO button on the Lc1003™ module
(1) to ignite the lamps.
In sequence, every 2 seconds one lamp will ignite
automatically.
4.2.6.2 Switching off the floodlights
manually
To switch the lights off manually, follow the
procedure described below and proceed to lower the
mast.
1. Push the START button on the Lc1003™ module
(1) to shut down the lamps.
2. Place the 4 automatic switches (Q2-5) in their
OFF position.
4.2.6.3 Switching on/off the floodlights
automatically
1. Make sure the mast is up and in the desired
operating position. See section 4.2.4.
2. Put the starter switch S20 in position REMOTE.
3. Switch ON the 4 circuit breakers (Q2-5).
4. Push the AUTO button on the Lc1003™ module
(1) to activate AUTO mode.
The floodlights will ignite/switch off
automatically depending on the luminosity
(optional Photocell) or a set time schedule.
On light towers with Lc1001™
module the flood lights are now
ignited.
When the light tower is connected to
the mains (“External power input
(230 VAC), with battery charger”
option, S10 in position 2) all lights
will ignite at the same time, as soon
as circuit breakers Q2-Q5 are
switched ON.
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
Q2-5
1
On light towers with Lc1001™
module the flood lights can be
switched on/off manually by
switching ON/OFF the automatic
switches (Q2-Q5).
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
Q2-5
1
Only applicable with timer or
optional Photocell.
When the light tower is connected to
the mains (“External power input
(230 VAC), with battery charger”
option, S10 in position 2) all lights
will ignite at the same time, as soon
as circuit breakers Q2-Q5 are
switched ON.
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
Q2-5
1
