Atlas Copco HiLight H6+ Kd ESF User Manual

- 30 -

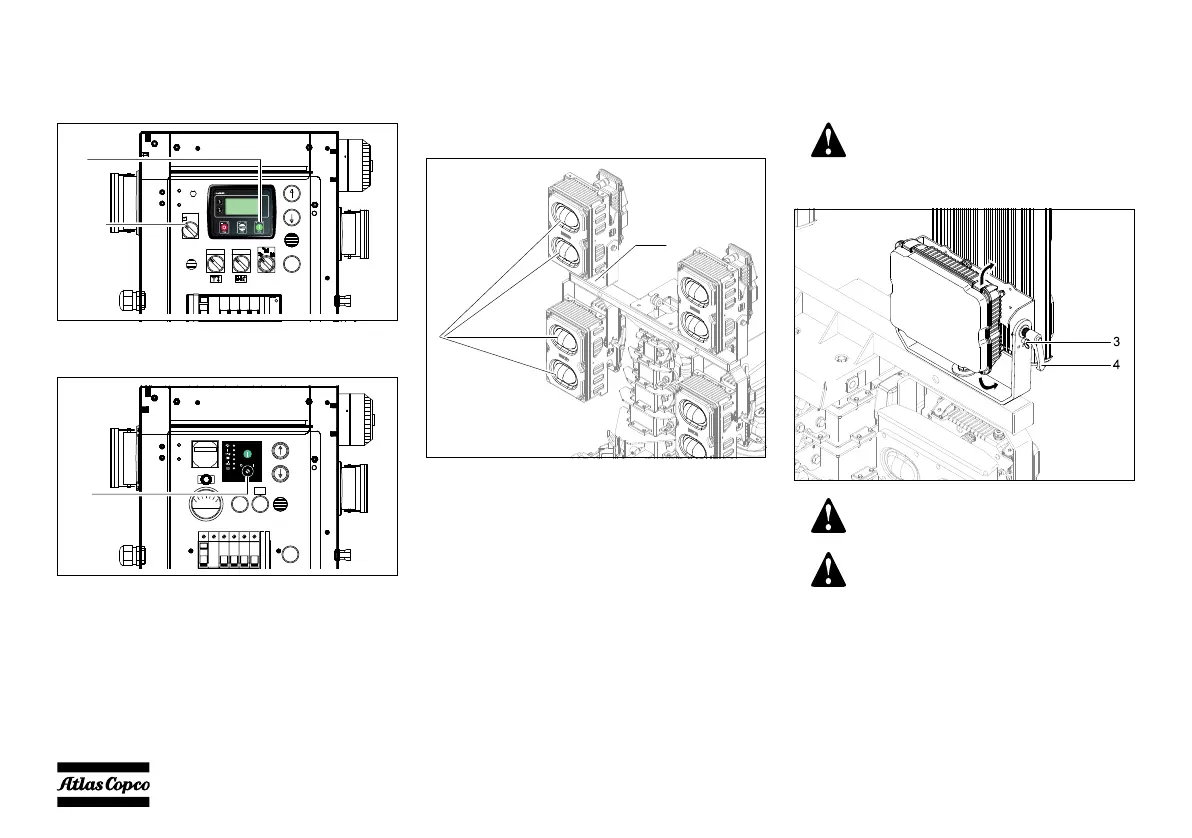

4.2.2 Starting the engine
1. For Lc1003™, put starter switch S20 in position I
(ON) and push the START button (1).
For Lc1001™, turn the ignition key to position I
(ON).
2. Once the machine starts, the controller will check
that all functioning conditions are OK. If there is
any failure (low oil pressure, high coolant
temperature, etc.), the controller will display a
signal.
4.2.3 Positioning the floodlights
Rotation
1. Check that the glass panes of the lights (1) are in
good condition.
2. Adjust the rotation of the floodlight by loosening
the bolt (2) on the bracket of the support.
3. After adjusting the floodlight rotation, fasten the
bolt again. Carefully check the tightness of the
bolt, torque if necessary.
Inclination
Each floodlight has a central handle and thumb screw
that is used to set the angle.
1. Loosen the wing screw (3).
2. Untighten the central handle (4) slightly.
3. Select one of the configured positions and tighten
the wing screw.
4. Tighten the central handle again.
5. Proceed with extending the mast as described
below.
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
S20
1
A1
F10
000000.00
H2
P1
H16
H3
1
2
Q2
1
2
Q3
1
2
Q4
1
2
Q5
N1
N2
Q1
1
2
Q6
Dimming
ECU
1
1
2
Carefully tighten the wing screws
after adjusting the inclination of the
floodlights to avoid any unexpected
inclination.
Maximum luminosity is obtained
when the tilting angle is 70°.
Refer to section 10.5 for more
detailed information on the
installation of the floodlights.
00_00_HiLight H6+_EN.book Page 30 Friday, June 4, 2021 11:52 AM
