Reference Description
Ca Air cooler
CV Check valve
E Compressor element
ER Touch controller
M Motor
SV Safety valve
TSHH Temperature sensor
Full-Feature
A Touch controller module, fitted in the front panel, controls the compressor and the dryer.
The electric components are located in the cubicle behind the front panel door.
A check valve (CV) prevents loss of compressed air when the compressor is stopped.
A temperature sensor and a safety valve (SV) protect the compressor element against overheating
and too high pressure respectively.
The compressed air is cooled by an air cooler (Ca) before it enters the dryer.
Single-phase units are equipped with a vent valve for easy starting.

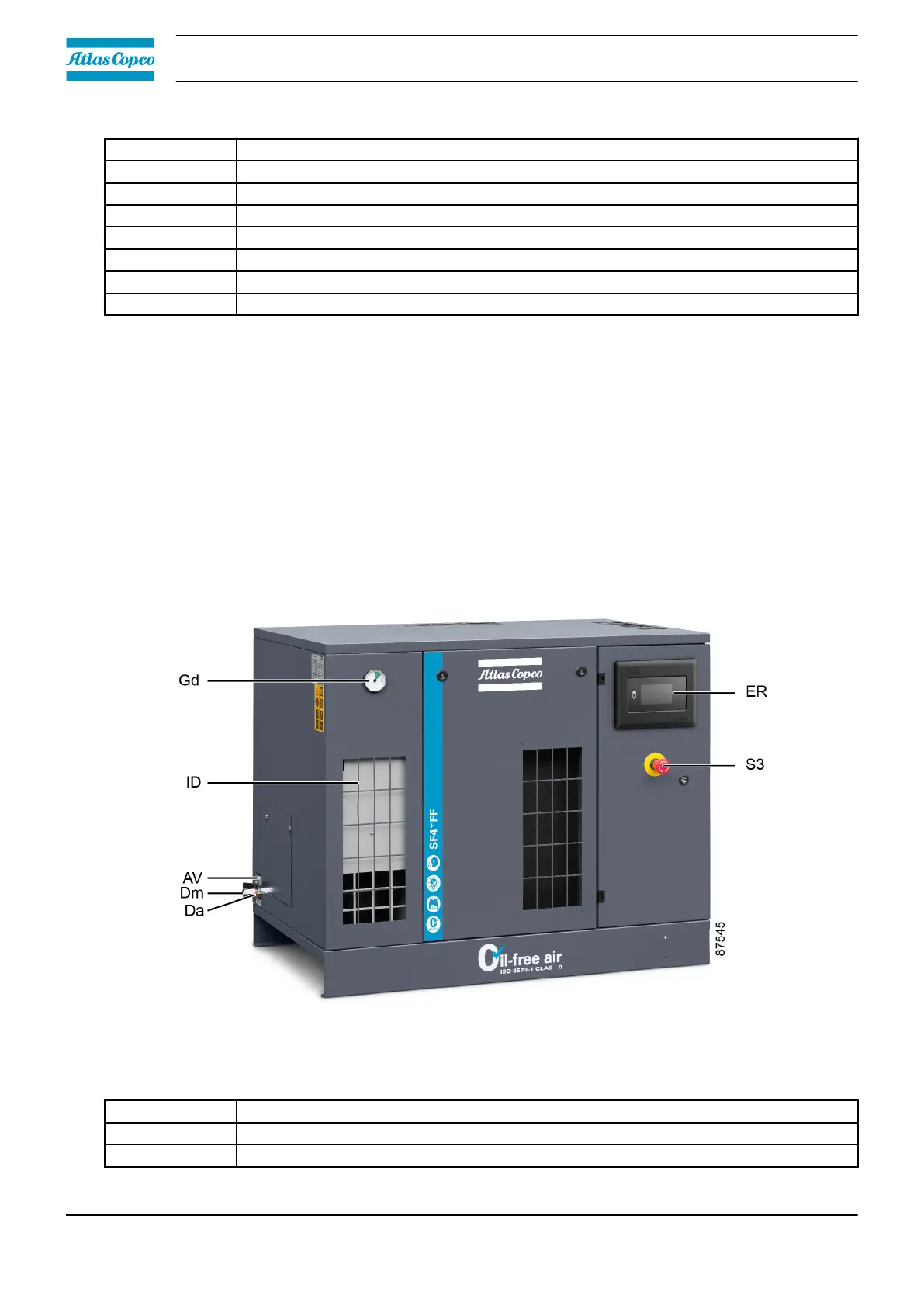

Figure 3: SF 4
+
Full-Feature, floor-mounted
Reference
Description
AV Air outlet valve
Da Automatic drain outlet
Instruction book
14 2920 7219 10
