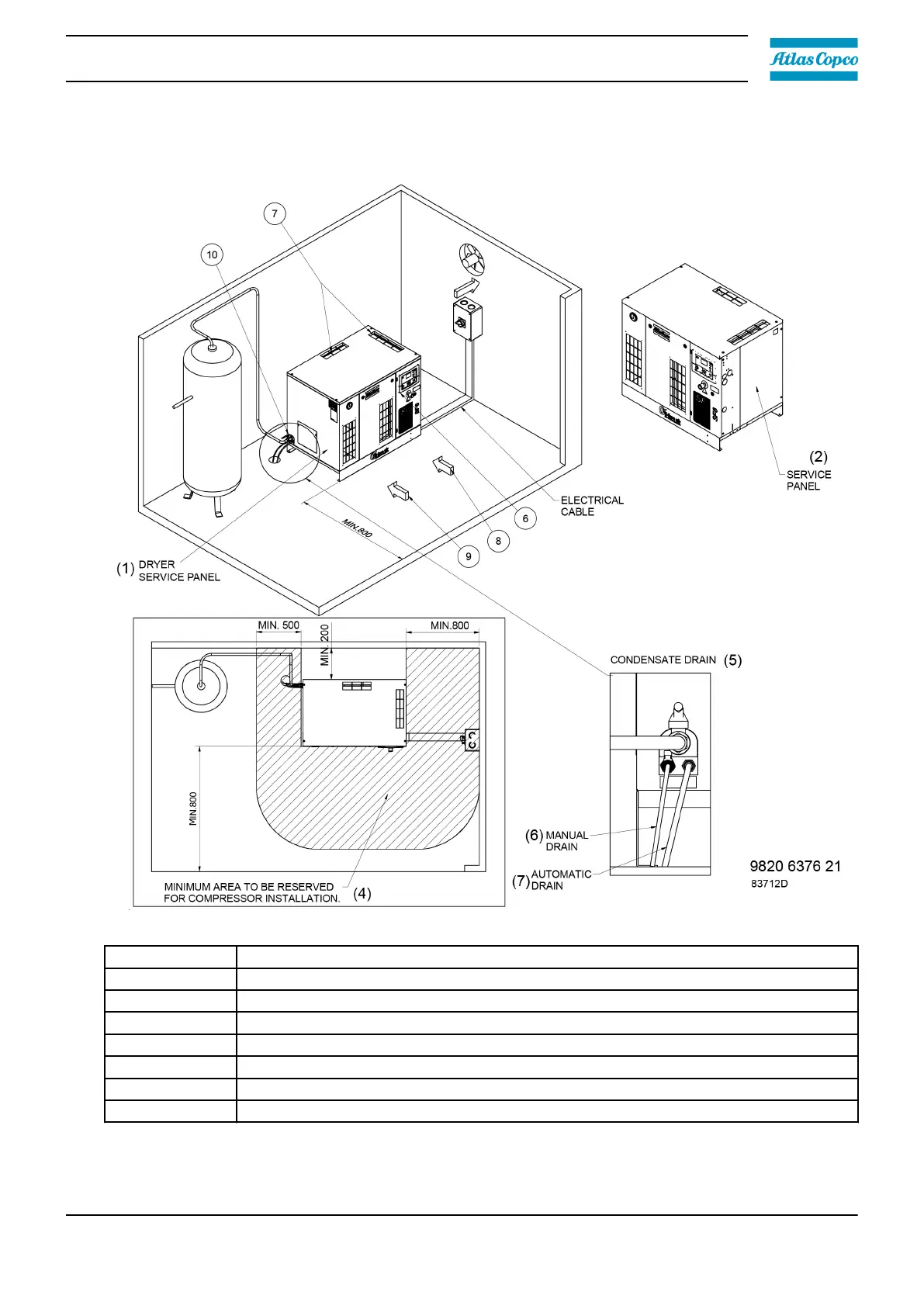

4.2 Installation proposal
Reference Description
1 Dryer service panel
2 Service panel
3 Supply cable
4 Minimum area to be reserved for servicing purposes
5 Condensate drain
6 Manual drain
7 Automatic drain
Instruction book
2920 7219 10 53
