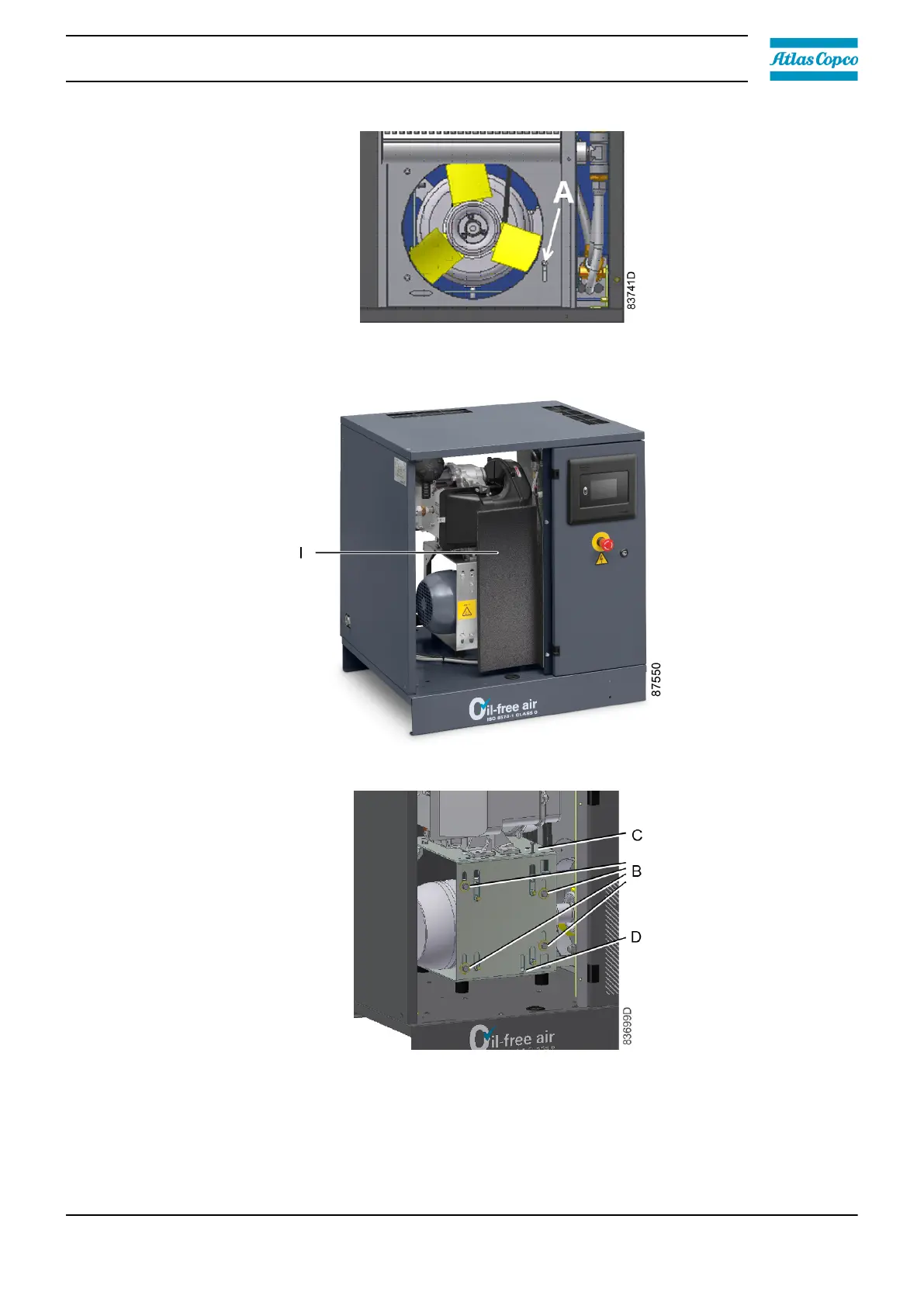

3. Remove the front panel.
4. Remove the inlet baffle (I).
5. Loosen the screws (B).
6. Loosen the screw (C).
7. Use slot (D) to lift the motor plate.
8. Install the new belt(s) in the pulley grooves.
9. Set the tension of the belt(s) by adjusting bolt (C) out. Refer to the label on the motor plate for
the tensioning data:
Instruction book
2920 7219 10 67
