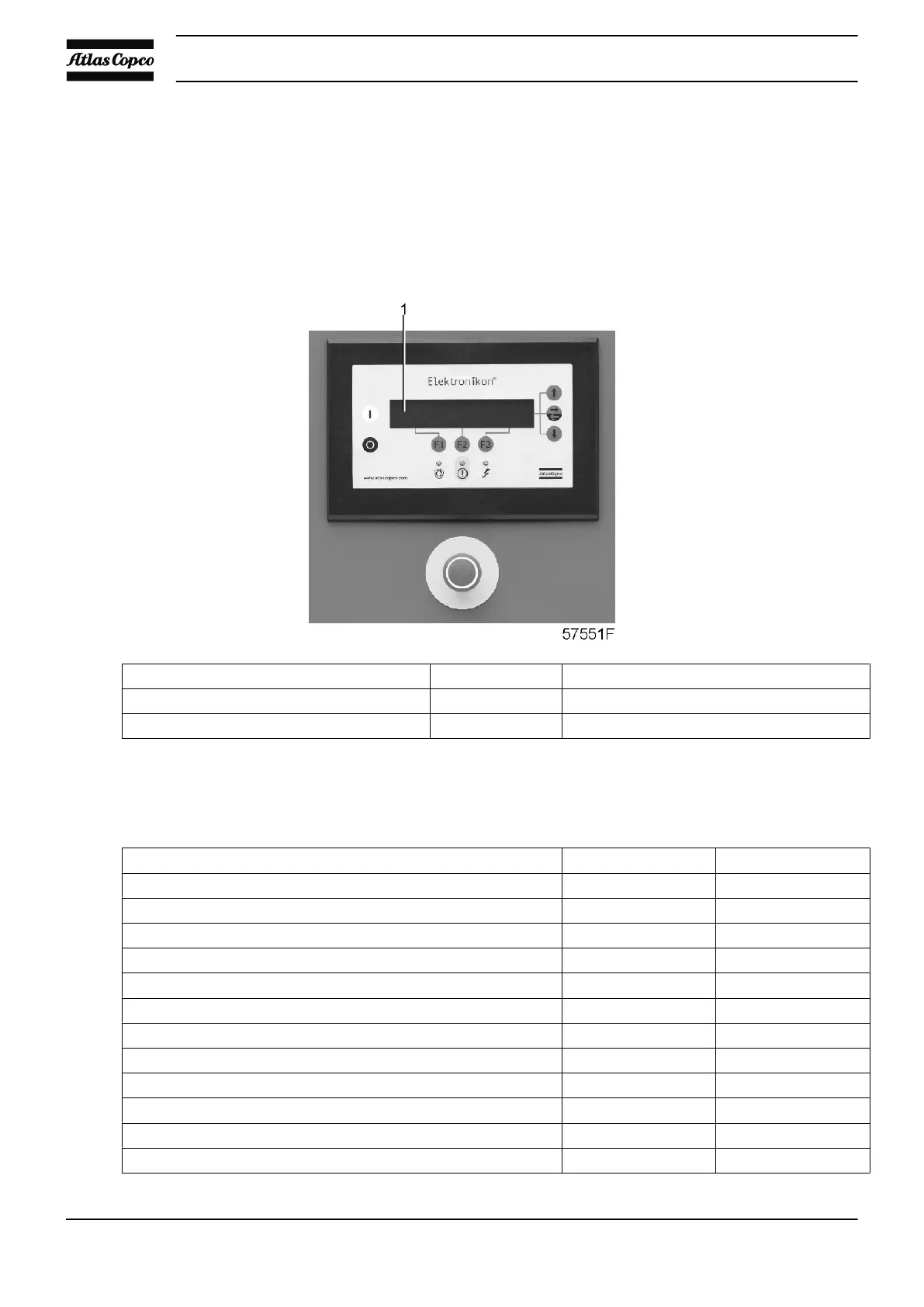

9 Principal data
9.1 Readings on display
Display
Reference Unit Reading
Outlet pressure bar(e) Depends on pressure setpoint.
Maximum working pressure bar(e) See “Compressor data”.
Full-Feature compressors
Temperature readings
Item Reading (min - max) Reading (min - max)
Dryer heater outlet (optional) 130 - 210 ˚C 266 - 410 ˚F
Dryer PDP (optional) (-50) - 0˚C (-58) - 32 ˚F
Dryer outlet maximum 80 ˚C maximum 176 ˚F
Regeneration air inlet 120 - 200 ˚C 248 - 392 ˚F
Regeneration air outlet 55 - 150 ˚C 131 - 302 ˚F
Dryer mix air maximum 50 ˚C maximum 122 ˚F
Dryer water out 0 - 50 ˚C 32 - 122 ˚F
Temperature difference, dryer outlet - inlet maximum 25 ˚C maximum 45 ˚F
Temperature difference, dryer regeneration air inlet - inlet 100 - 160 ˚C 180 - 288 ˚F
Temperature difference, dryer mix. - inlet maximum 10 ˚C maximum 18 ˚F
Temperature difference, dryer regeneration inlet - outlet 30 - 80 ˚C 54 - 144 ˚F
Dryer PDP - inlet temperature (optional) -30 - (-60) ˚C -22 - (-76) ˚F
