3.9 Status data menu
Warning
Before starting any maintenance or repairs, press the stop button (4), wait until the
compressor has stopped, press the red emergency stop button and open the isolating
switch (customer's installation) to switch off the voltage to the compressor.
Close the air outlet valve and depressurize the air system.
Function

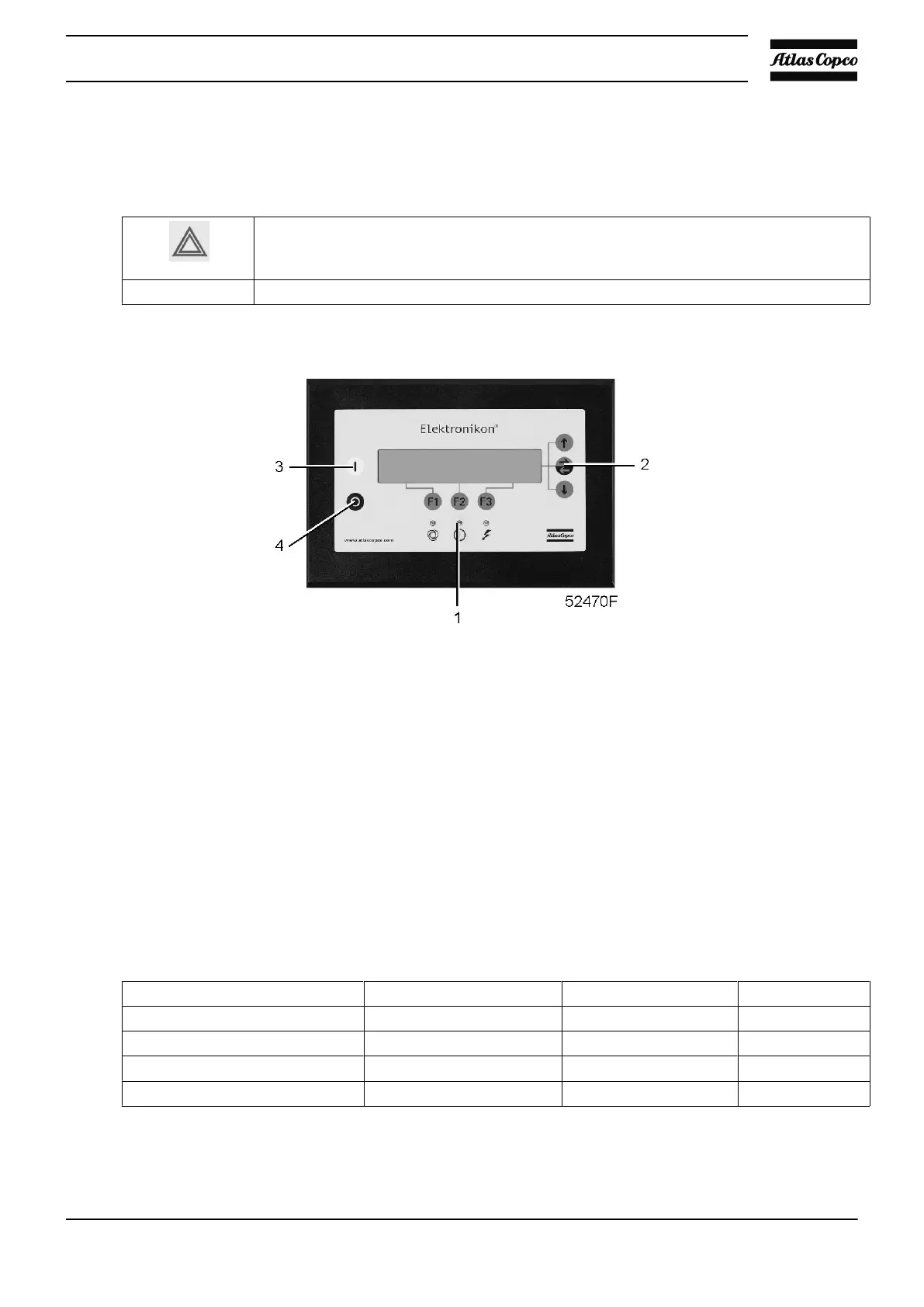

Control panel
The Status data submenu gives information regarding the status of the compressor protection functions (shut-
down, shut-down warning and service warning) and allows resetting of a shut-down, motor overload and
service condition.
Procedure
Starting from the Main screen (see Main screen menu):
• Press the key “Menu” (F1): the option “Status Data” will be followed by a horizontal arrow.
• Press the tabulator key (2).
No message exists
• General alarm LED (1) is out and the message on the display will indicate that all conditions are normal:
“All Conditions Are OK”
.
.
“Menu” “Help”
F1 F2 F3
Instruction book
51
