Example of a Counters screen
.
“Running Hours” 2455 “hrs”
“Loaded Hours” 1973 “hrs”
“Motor Starts” 945
“Menu”
F1 F2 F3

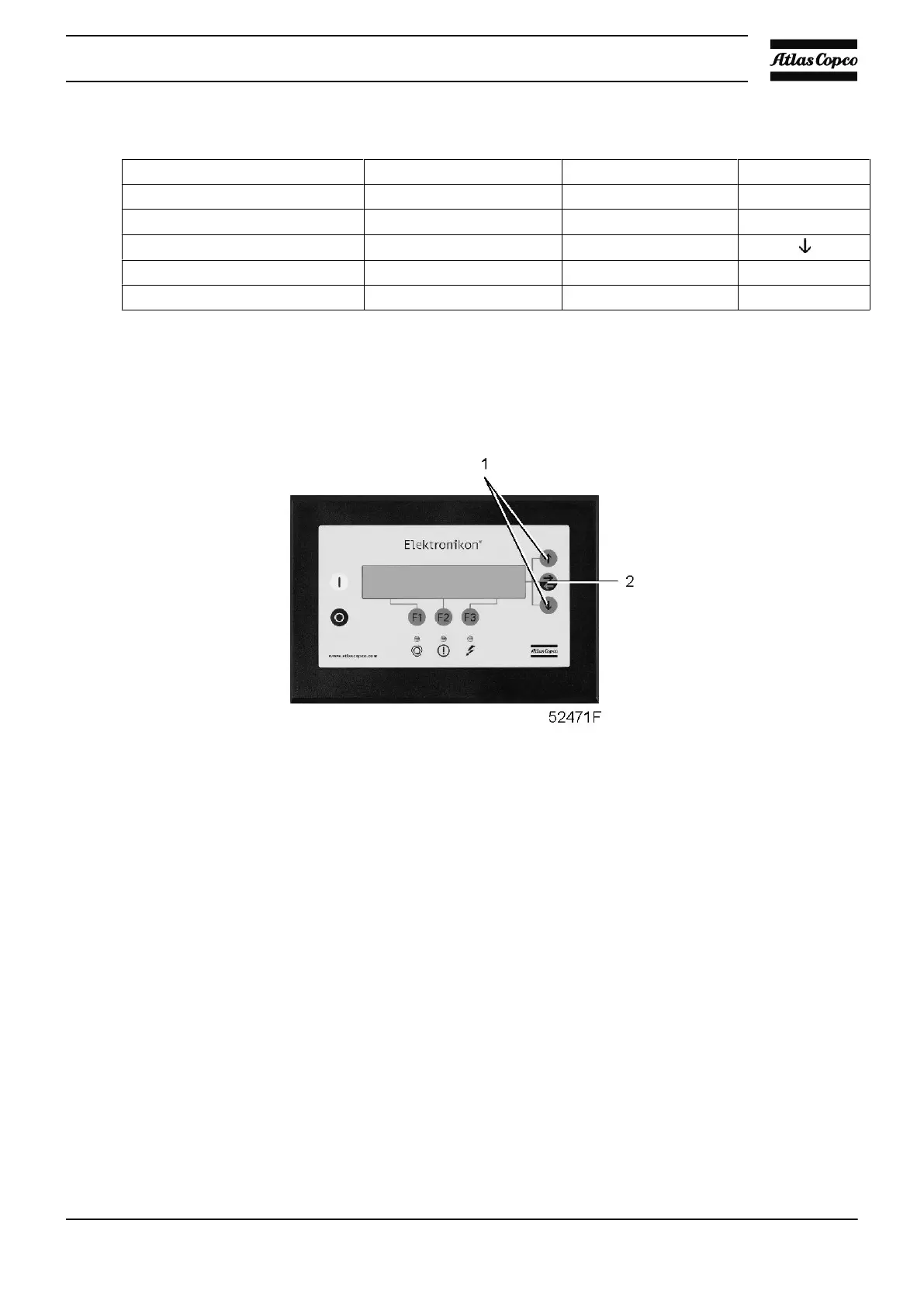

3.12 Test menu
Control panel
Function
To carry out a display test, i.e. to check whether the display and LEDs are still intact.
Procedure
• Starting from the Main screen (see Main screen menu), press the “Menu” (F1) key.
• Press arrow down key (1) until “Test” is followed by a horizontal arrow.
• Activate the menu by pressing the key (2).
To perform a display test:
• If necessary, scroll through the menu until “Display Test” is followed by a horizontal arrow.
• Press the key (2).
• During testing, the regulator will generate a series of patterns on the display which enable the operator to
check that each pixel still functions normally; the LEDs are lit at the same time.
• Press the “Menu” key (F1) to return to the submenu.
