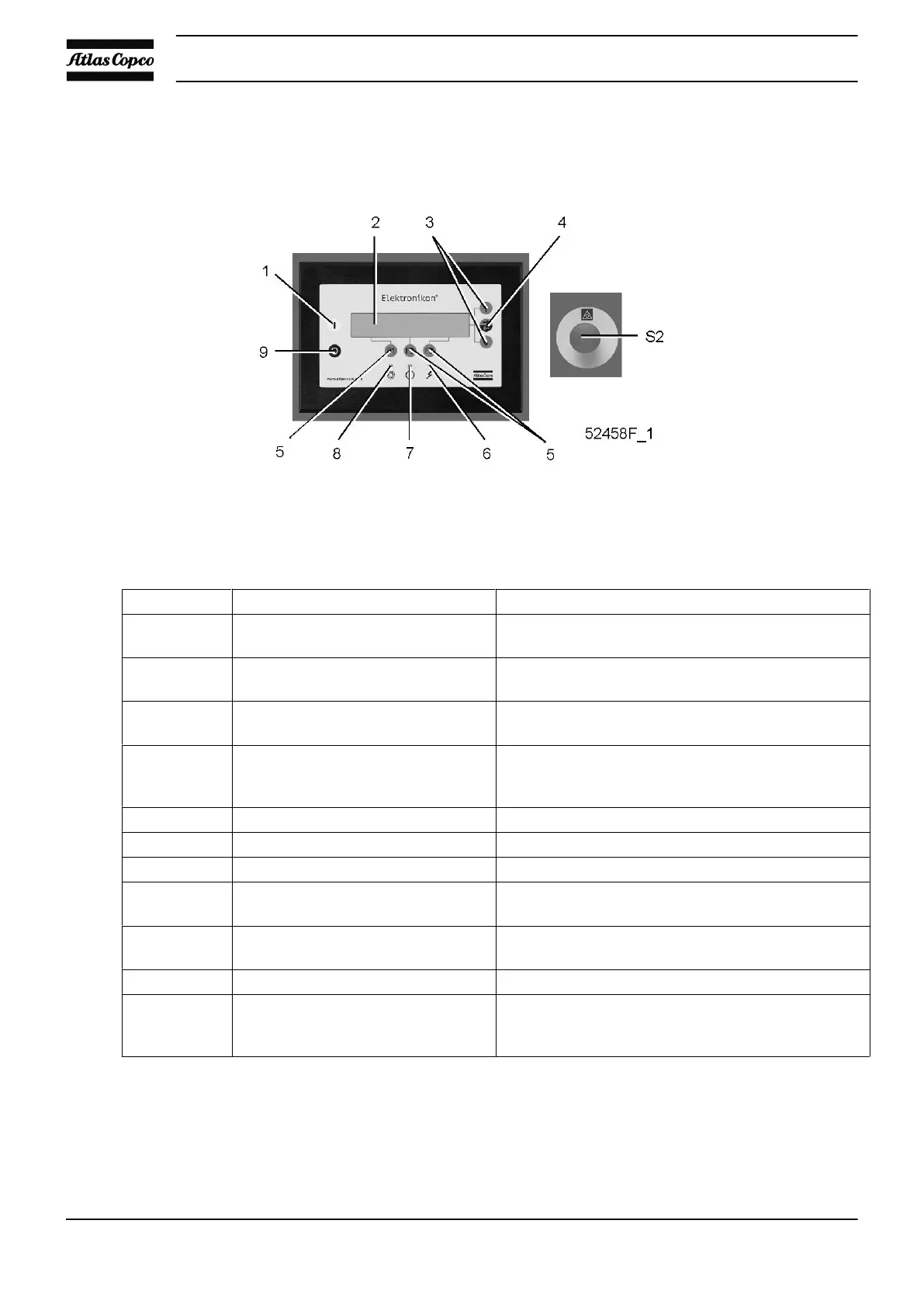

3.2 Control panel
Elektronikon regulator
Control panel
Parts and functions
Reference Designation Function
1 Start button Button to start the compressor. LED (8) lights up
indicating that the Elektronikon regulator is operative.
2 Display Shows messages about the compressor operating
condition, a service need or a fault.
3 Scroll keys Keys to scroll upwards or downwards through the
display.
4 Tabulator key Key to select the parameter indicated by the horizontal
arrow. Only the parameters followed by an arrow
pointing to the right can be modified.
5 Function keys Keys to control and program the compressor.
6 Voltage on LED Indicates that the voltage is switched on.
7 General alarm LED Is lit if a shut-down warning condition exists.
7 General alarm LED Flashes if a shut-down condition exists, if an important
sensor is out of order or after an emergency stop.
8 Automatic operation LED Indicates that the regulator is automatically controlling
the compressor.
9 Stop button Button to stop the compressor. LED (8) goes out.
S2 Emergency stop button Push button to stop the compressor immediately in the
event of an emergency. After remedying the trouble,
unlock the button by pulling it out.
Instruction book
44
