Settings - limitations
Item Setting
Maximum cooling water temperature at compressor
outlet
90 ˚C (85 ˚C if MD dryer is fitted)
194 ˚F (185 ˚F if MD dryer is fitted)
Maximum cooling water temperature at compressor
inlet
40 ˚C
104 ˚F
Safety valve opening pressure 2.5 bar(e)
36.3 psig

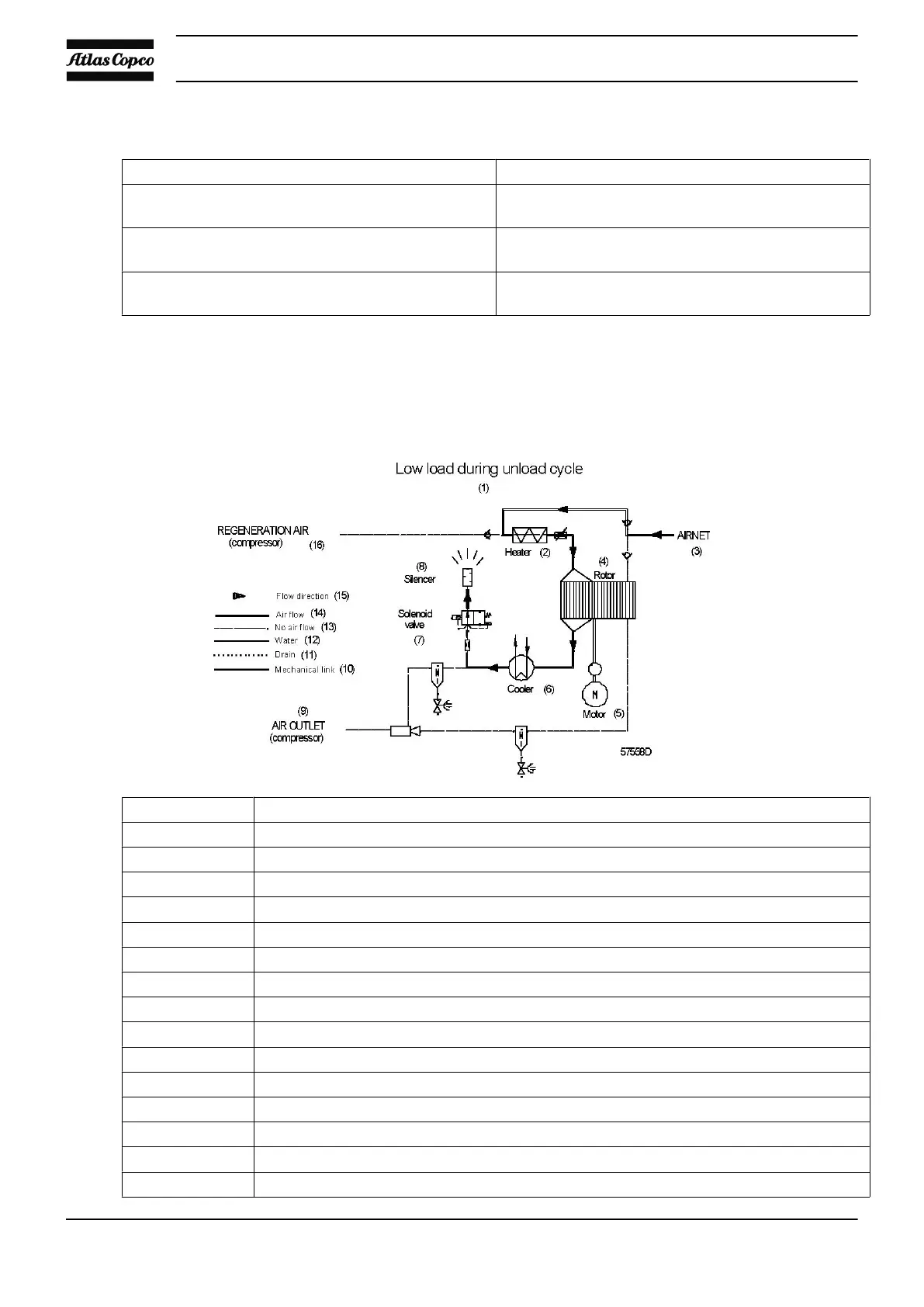

2.7 Low load compensator
Description
Reference Name
1 Low load during unload cycle
2 Heater
3 Air net
4 Rotor
5 Motor
6 Cooler
7 Solenoid valve
8 Silencer
9 Air outlet (compressor)
10 Mechanical link
11 Drain
12 Water
13 No air flow
14 Air flow
15 Flow direction
Instruction book
38
