The low load compensator is needed when the load cycle of the compressor is below 40 %.
Full-Feature ND
The Z Full-Feature ND compressor has an integrated heat of compression rotary drum dryer. The regeneration
air passes over a heater. The heater maintains a preset regeneration temperature to a have guaranteed dew
point at stated conditions. A thermostatic control puts on the heater and shuts it off automatically based on
the regeneration temperature requirements.
2.2 Air flow

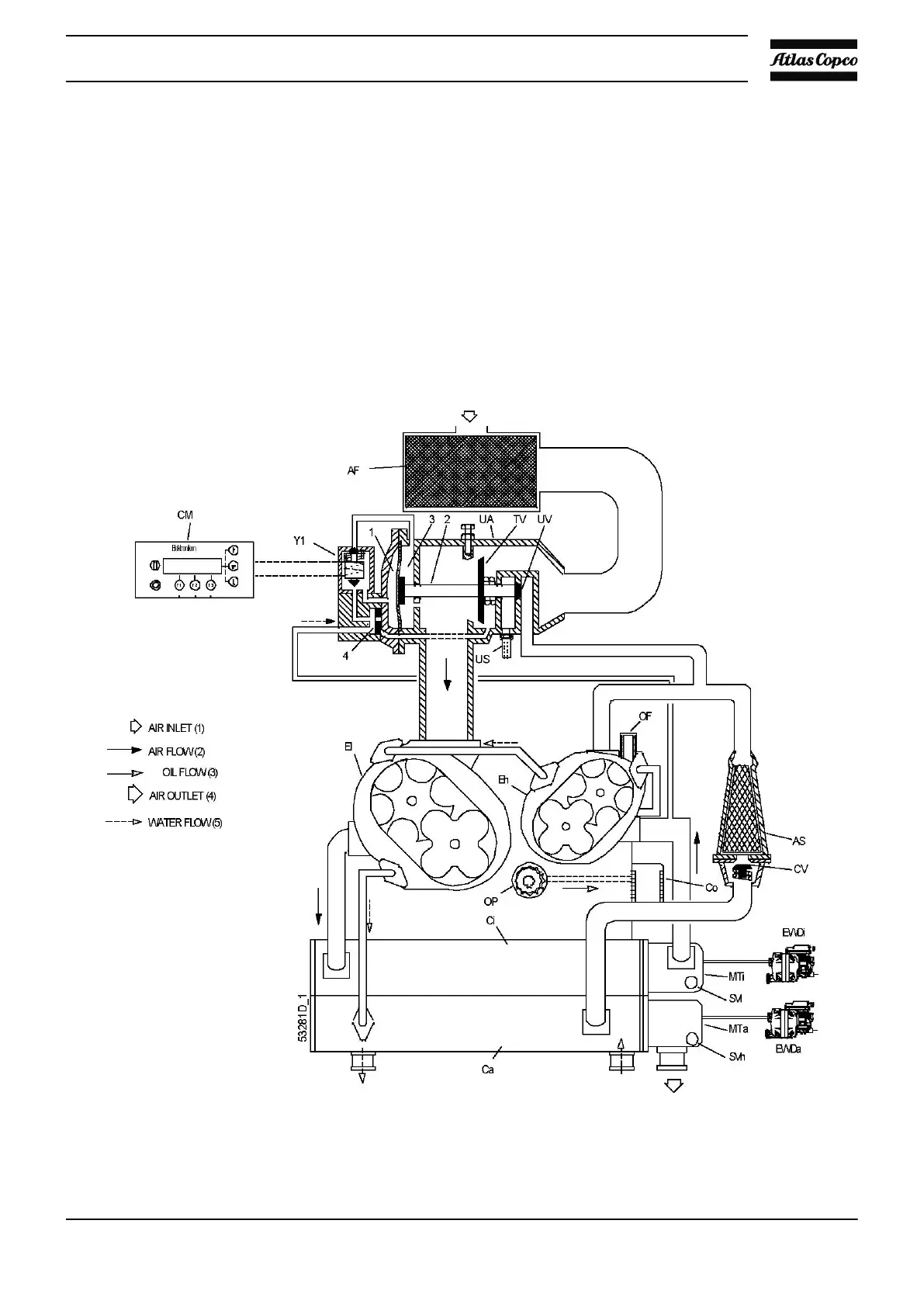

Flow diagram, ZR
Instruction book
19
