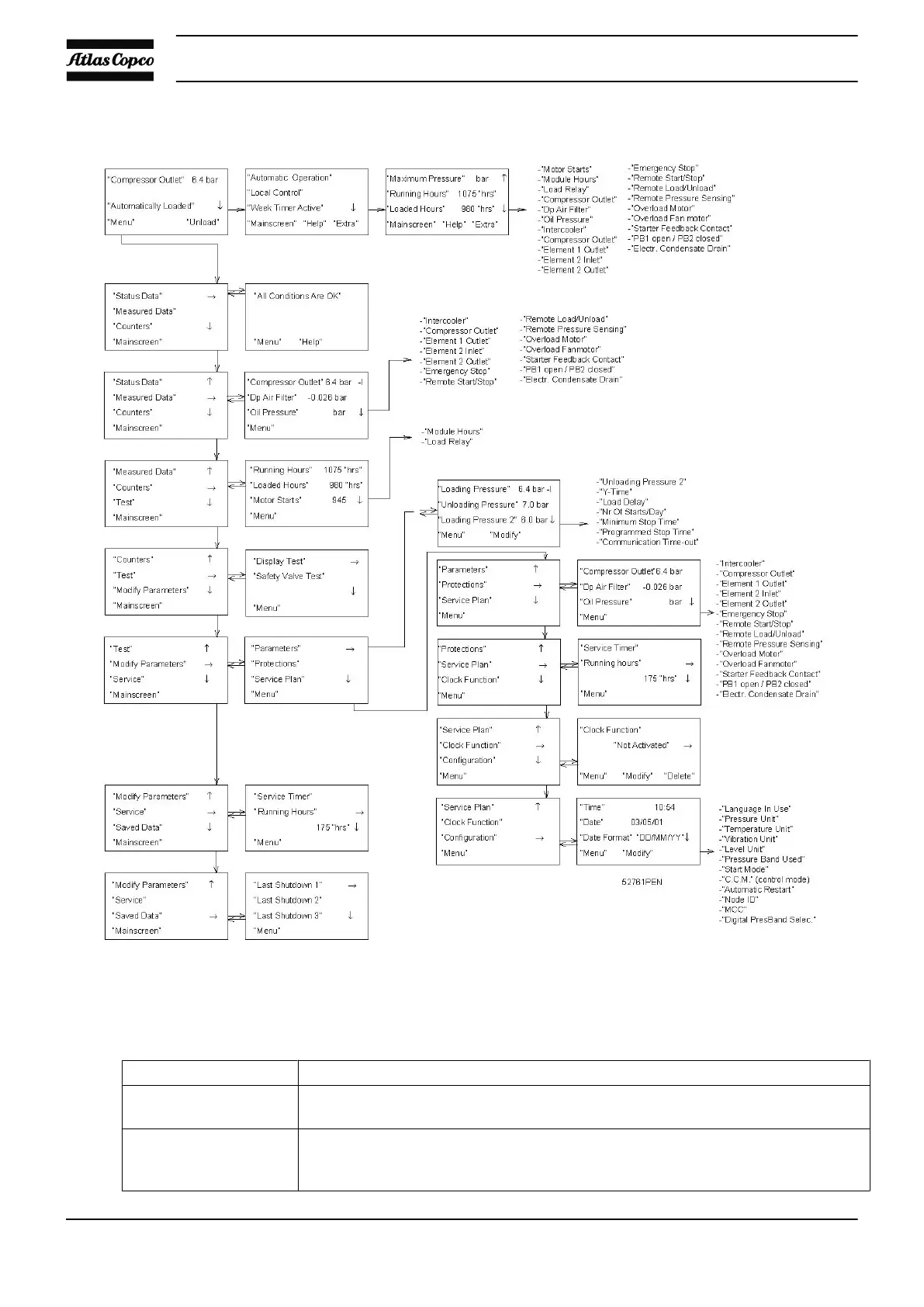

Menu flow for ZR/ZT 55 up to ZR/ZT 90 (simplified)
Main menu
Program
Function
Main screen
Shows in short the operation status of the compressor. Is the gateway to all
functions.
“Status data”
Calls up the status of the compressor protection functions (shut-down, shut-down
warning, service warning and warning). Resets a shut-down, motor overload and
service condition.
Instruction book
48
48
50
Table of Contents
Table of Contents
3
Safety Precautions
6
Safety Icons
6
Safety Precautions During Installation
6
Safety Precautions During Operation
8
Safety Precautions During Maintenance or Repair
9
General Description
11
Introduction
11
Air Flow
20
Condensate Drain System
27
Oil System
30
Cooling System
32
Energy Recovery
36
Low Load Compensator
39
Electrical System
40
Elektronikon Regulator
43
Control Panel
45
Function Keys
46
Scroll Keys
47
Emergency Stop Button
47
Control Programs
48
Calling up Menus
50
Main Screen Menu
51
Status Data Menu
52
Measured Data Menu
54
Counters Menu
55
Test Menu
56
Modify Parameters Menu
57
Modifying Parameters
57
Modifying Regulation Settings
58
Modifying Protection Settings
59
Modifying Service Plans
60
Programming Clock Function
61
Modifying Configuration Settings
66
Service Menu
67
Saved Data Menu
69
Programmable Settings
70
Installation
74
Dimension Drawings
74
Installation Proposals
81
Electric Cables
86
Cooling Water Requirements
91
Pictographs
94
Operating Instructions
97
Operation Introduction
97
Initial Start-Up
97
Before Starting
108
Starting
110
During Operation
111
Stopping
112
Taking out of Operation
115
Maintenance
116
Maintenance Warnings
116
Preventive Maintenance Schedule
116
Service Kits
117
Service Agreements
117
Service Plan
117
Motor Greasing
117
Oil Specifications
119
Storage after Installation
119
Servicing Procedures
120
Air Filter (Af)
120
Oil and Oil Filter Change
122
Safety Valves
123
Problem Solving
124
Faults and Remedies
124
Principal Data
127
Readings on Display
127
Settings of Safety Valves
128
Circuit Breakers and Fuses
128
Reference Conditions
129
Limitations
129
Compressor Data
130
Pressure Equipment Directives
136
Ressure Equipment Directives
136
4
