Atlas Copco ZR-90 - Page 79

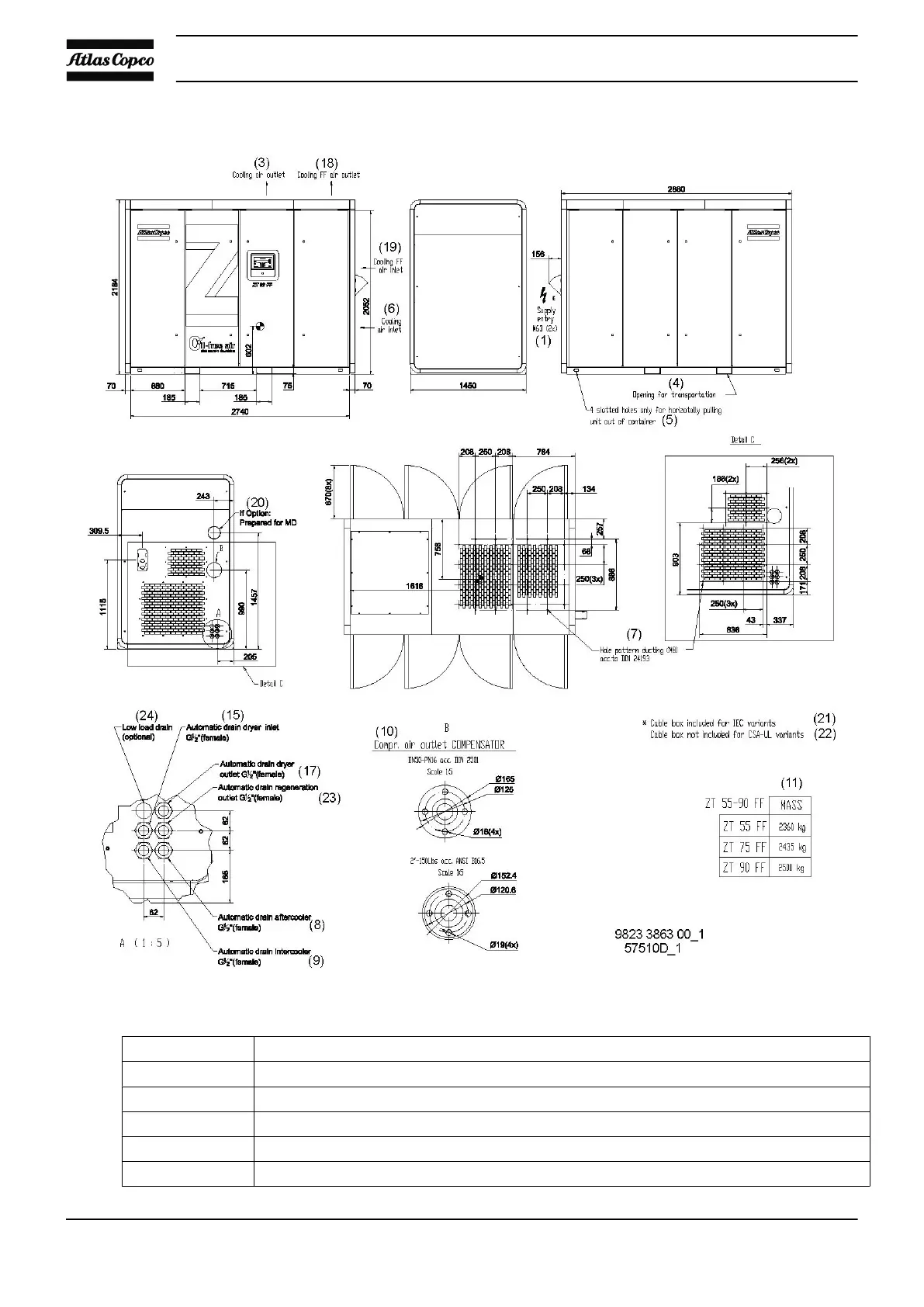

Dimension drawing, ZT Full-Feature
Text on drawing
Ref Name
(1) Voltage supply entry
(2) Compressed air outlet
(3) Cooling air outlet
(4) Opening for transportation
(5) 4 slotted holes only for horizontally pulling unit out of container
