OPERATION
Other Operation Procedures

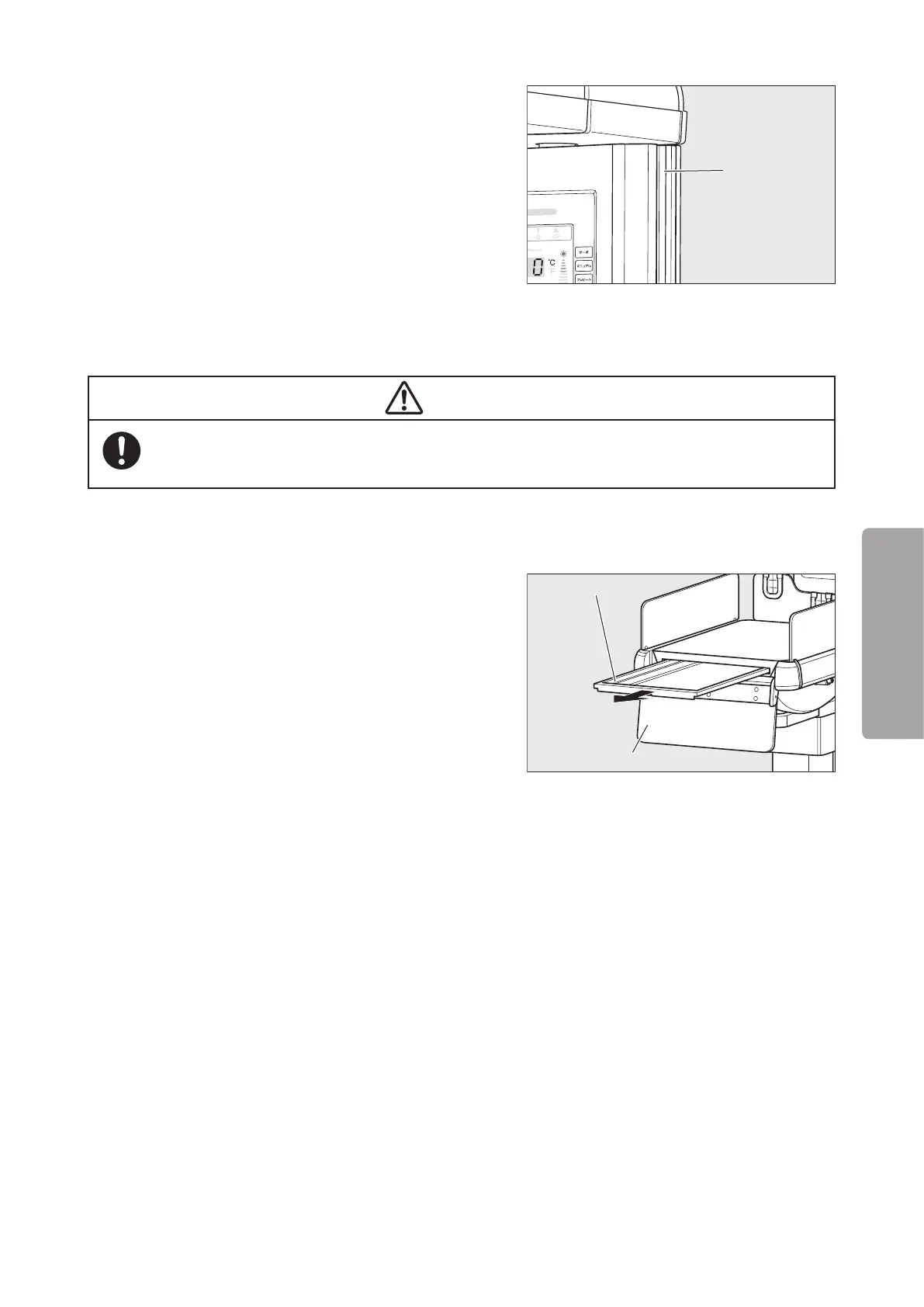

A rail is attached to either side of the support column.
The optional tray set, the I.V. pole, etc. can be mounted
to either support column rail.
X-ray Cassette Tray7-7.
If the baby guards are left open, the infant may fall out. Be sure to close and lock them securely
when taking radiographs.
An X-ray cassette tray is supplied with the unit as a standard accessory. To take radiographs, draw out the tray
and set an X-ray cassette on it.
(1) Fold down the baby guard on the front side and draw
out the X-ray cassette tray.
Confirm the part of the patient's body to be radio-(2)
graphed and a corresponding color-coded position
on the sticker affixed to the baby guard on either
side.
Place the X-ray cassette by following the color code (3)
indicated on the stickers affixed to the baby guards
and on the sticker affixed to the X-ray cassette
tray.
Push in the X-ray cassette tray to its former position (4)
and close the baby guard.
The sizes of X-ray cassettes available ■
JL 6 1/2" x 8 1/2"•
JL 8" x 10"•
JL 10" x 12"•
X-ray cassette tray
Baby guard
To Next Page
