34
6. Throttle
Inspect the throttle cable for deformed, twisted or damaged
locations along the cable length.

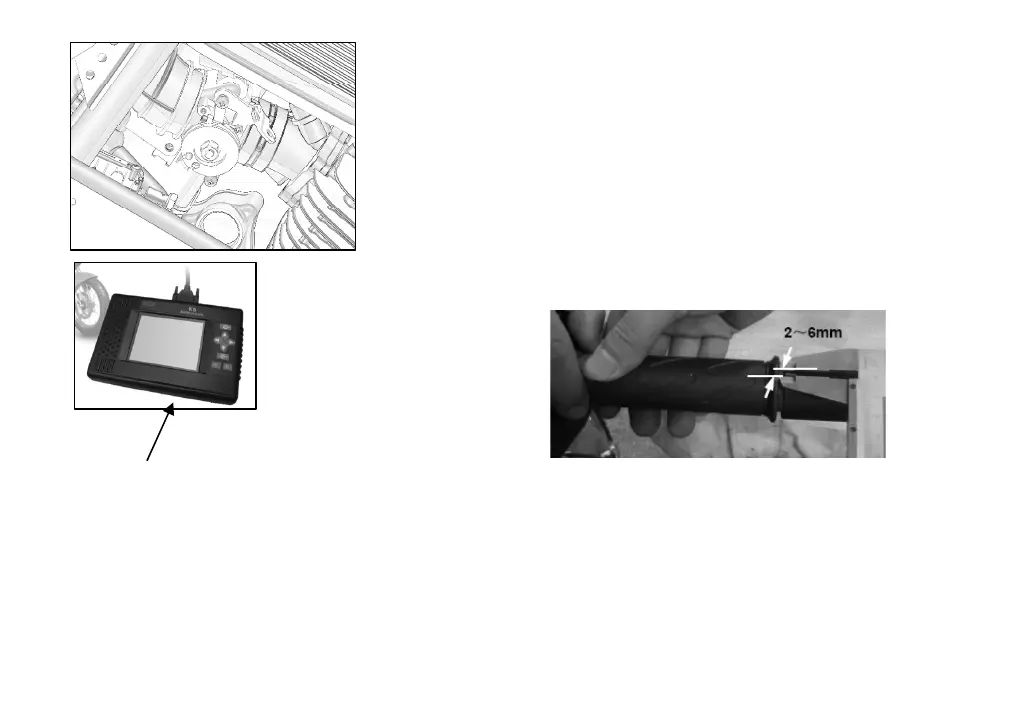

Measure the throttle free-play. Tum the throttle against one side
of the free stroke, and draw a straight line between the bar and
the balance weight. Then turn the bar to lean it against the other
side of the free stroke; measure the distance of the straight line,
i.e. the throttle bar free stroke.
Free-play: 2-6mm.
If the throttle free-play is insufficient or too large, make adjust-
ments as necessary.
Maintaining & diagnostic instrument
