9. Clutch

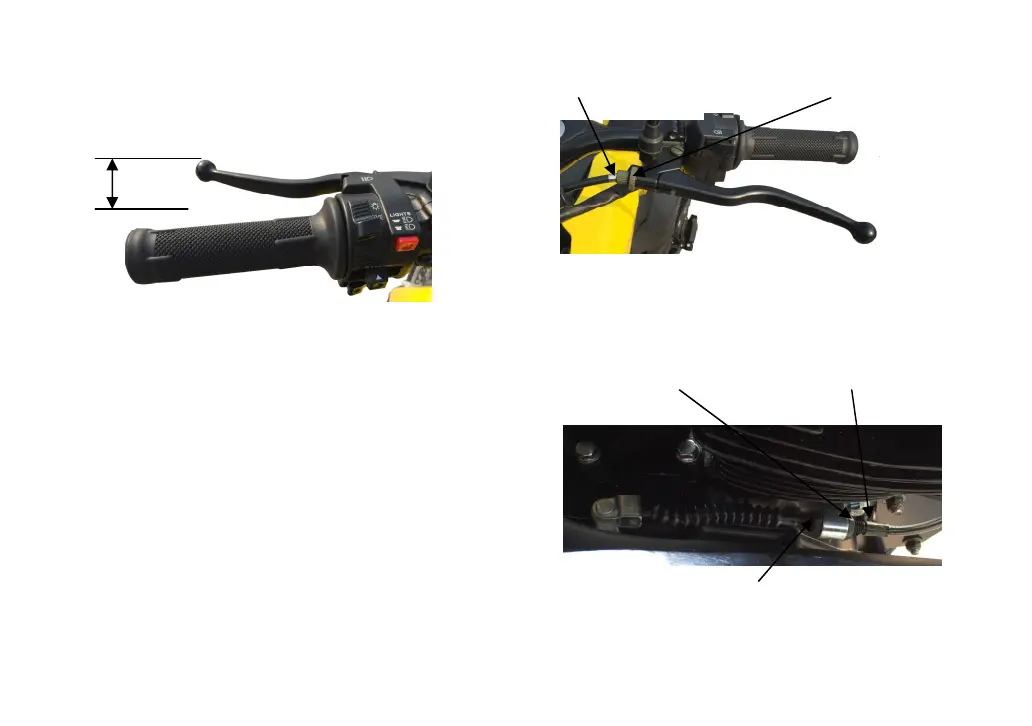

Check the clutch lever free-play.
Clutch lever free- play: 10-20mm
The clutch is adjusted by stretching the cable using the adjusting
unit positioned on the handlebar.
As a rule it is sufficient to operate on the handlebar register to
restore the clearance due to the flexible transmission stretch.
Check the clutch operating handle free stroke. Clutch operating
handle free stroke: 10-20mm.
Adjusting methods:
Fine adjustment: Pull open the rubber lagging, unscrew the
retaining nut, and turn the adjusting nut to adjust to a satisfied
free stroke. And then screw up the retaining nut and mount the
protective rubber lagging.
Coarse adjustment:
If a satisfactory free stroke can't be achieved by fine adjustment,
remove the clutch control line on the handle end to adjust the
engine end.
Adjusting Nut
Retaining nut
Adjusting Nut
Retaining nut
Retaining nut
