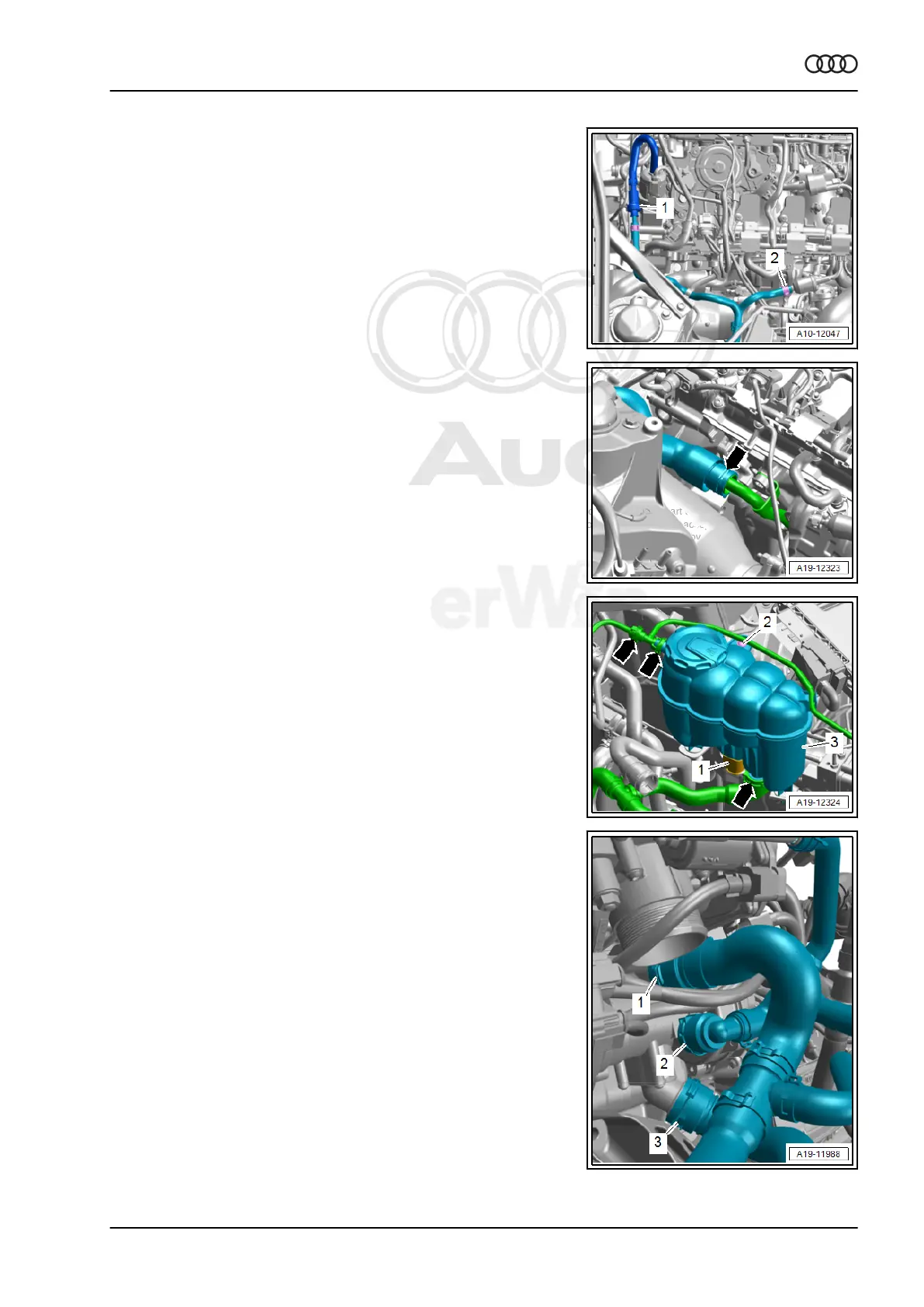

– Disconnect the fuel hose -1-. Refer to ⇒ Fuel Supply System;
Rep. Gr. 20 ; Connector Couplings; Connector Couplings,
Disconnecting .
– Loosen the hose clamp -2- and disconnect the hose for the
EVAP system.
– Pull back the heat shield slightly.
– Lift the clamp -arrow- and remove the coolant hose.
– Lift the clamps -arrows-, remove and free up the coolant ho‐
ses.
– Disconnect the connector -1- for the Engine Coolant Level
Sensor - G32- .
– Remove the bolt -2- and remove the coolant expansion tank
-3-.
– Lift the clamp -1 and 3-, and remove the coolant hoses.
Vehicle with Dual-Clutch Transmission:
– Lift the clamp -2- and remove the coolant hose.
