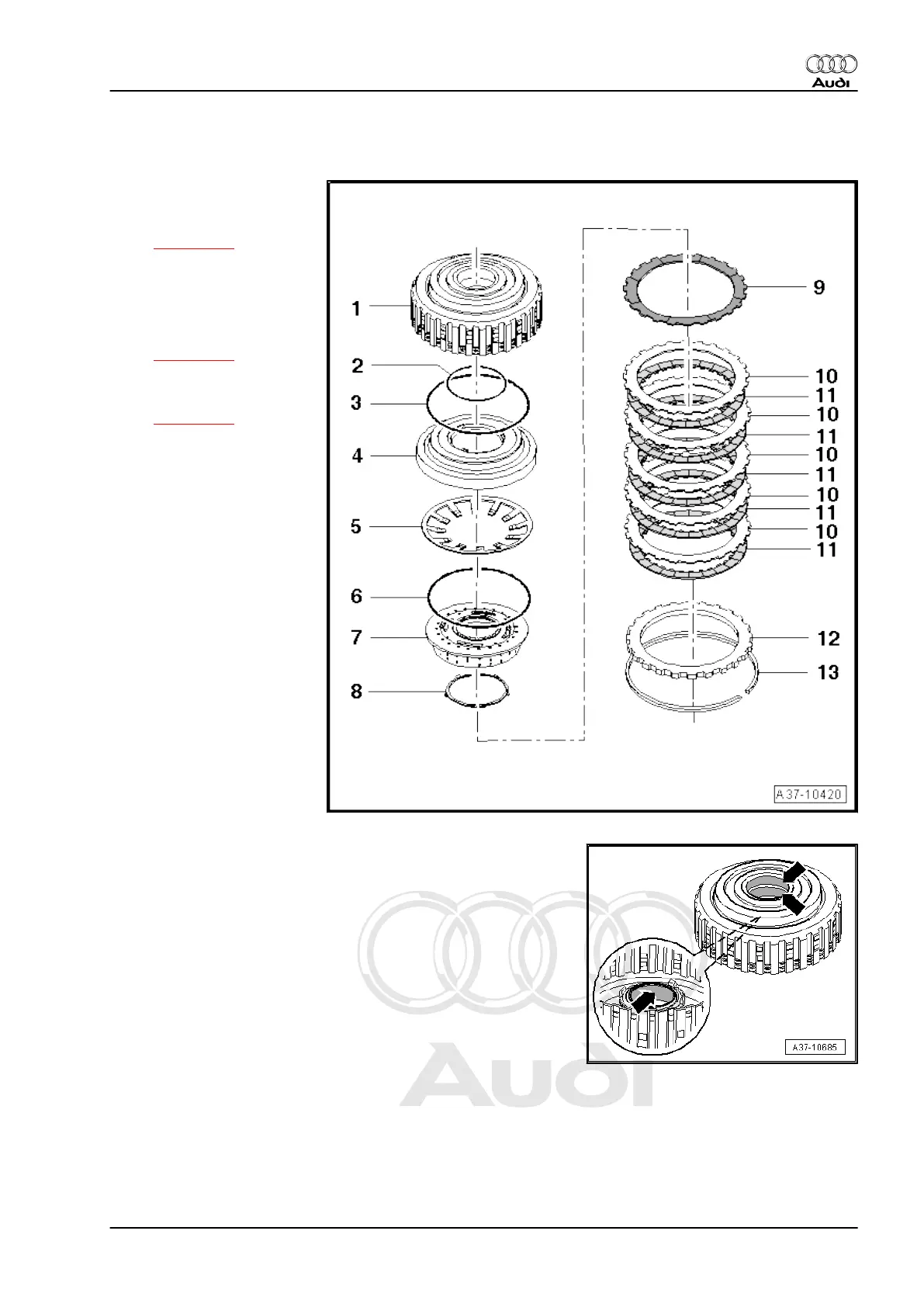

3.7 Clutch „A“
1 - Cylinder „A“
❑ Checking running surfa‐
ces for wear
⇒ page 175
4 - Piston „A“
❑ Check for wear
10 - Outer plate
❑ Checking for wear
⇒ page 176
11 - Friction plate
❑ Checking for wear
⇒ page 176
Checking running surfaces for wear
– Check running surfaces -arrows- on inside of cylinder „A“ for
wear.
• The running surface should not have any deep scoring and/or
blue discoloration.
If there are deep scores and/or blue discolouring:
– Renew cylinder „A“.
Proceed as follows if the running surface has no blue discolora‐
tion and there are only slight scores:
– Rub down running surface one or two times with abrasive pa‐
per and oil (grain size 600).
– Clean running surface thoroughly with clean cloth and check
running surface.
• The running surface should now be in as-new condition.
If scoring is still present after this step:
– Renew cylinder „A“.
Audi A6 2005 ➤ , Audi A8 2003 ➤
Servicing automatic gearbox 09E, four-wheel drive - Edition 12.2011
3. Assessment of wear on gearbox components 175
