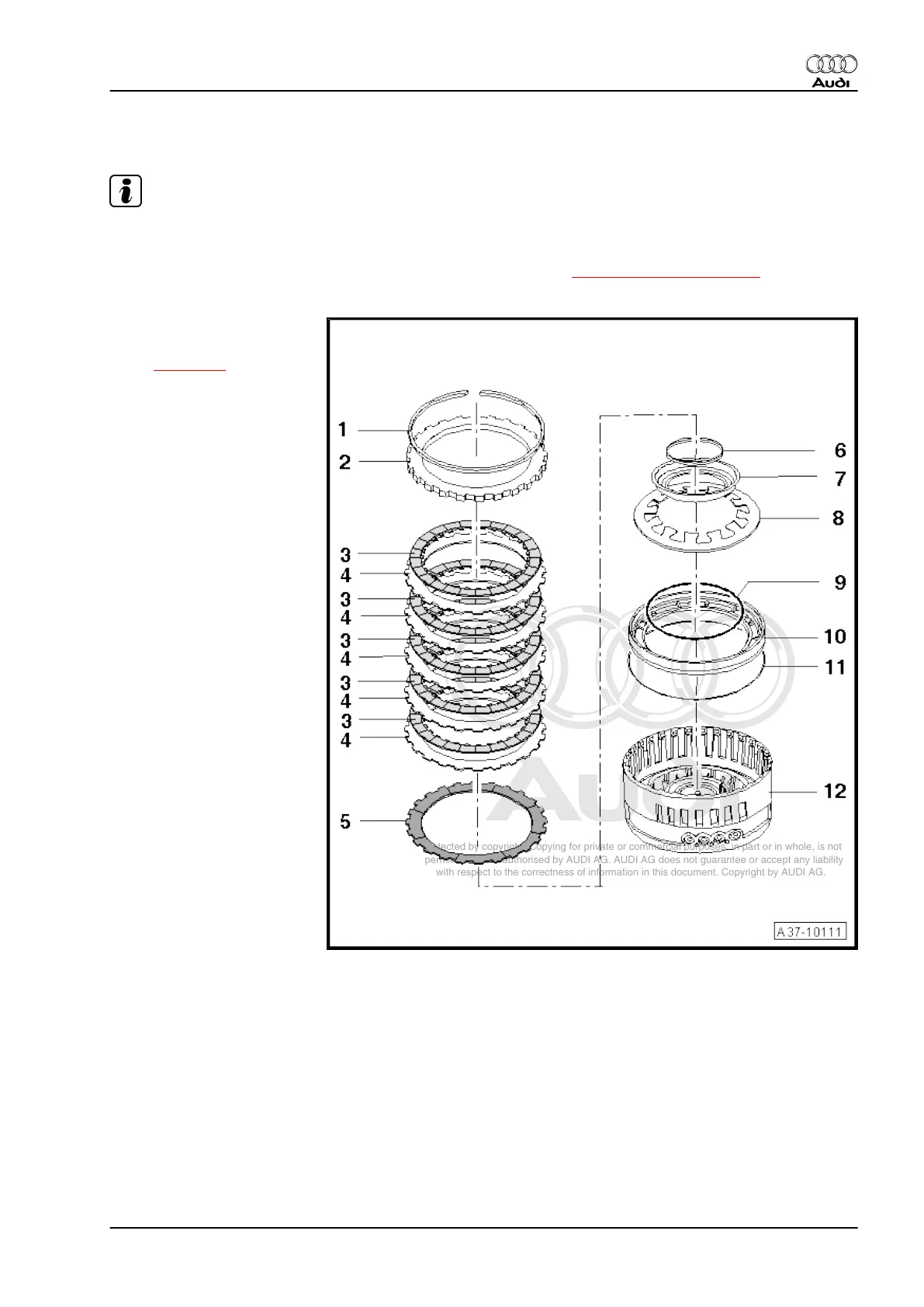

3.2 Clutch „C“ - exploded view
Note
♦ Some of the components shown are supplied as part of an assembly group and cannot be ordered as
separate components ⇒ Electronic parts catalogue .
♦ Check components of clutch „C“ for traces of wear and damage ⇒ „3.2 Clutch C “, page 165 .
1 - Circlip
❑ Determining thickness
⇒ page 52
2 - Thick outer plate
3 - Friction plate
4 - Outer plate
5 - Corrugated spring
6 - Circlip
7 - Retaining ring
8 - Dished spring
9 - O-ring
❑ Renew
10 - Piston„C“
11 - O-ring
❑ Renew
12 - Cylinder „C/D“
Audi A6 2005 ➤ , Audi A8 2003 ➤
Servicing automatic gearbox 09E, four-wheel drive - Edition 12.2011
3. Dismantling and assembling body „I“ 49
