Audient iD24 - Page 20

20
Neutrik
Neutrik
D.I 1
Auto
Sense
Input
Select
ADC
+58dB
+58dB
ADC
Insert
Insert
Direct
Monitor
Path
(software
controlled)
CH1
CH2
OPTICAL
IN 1
Microphone Input
XLR Combi Female
Pin 1: Chassis Ground Pin
Pin 2:Hot (+ve)
Pin 3: Cold (-ve)
Input Impedance: >2.8k ohm
Maximum Input Level: +12dBu
Line Input
1/4” TRS Combi Jack
Tip: Hot (+ve)
Ring: Cold (-ve)
Sleeve: Chassis Ground
Input Impedance: >8k ohm
Maximum Input Level: +22dBu
DI Input
1/4” TS Jack
Tip: Hot (+ve)
Sleeve: Ground
Input Impedance: >500K Ohms
Insert Sends
1/4” TRS Jack
Tip: Hot (+ve)
Ring: Cold (-ve)
Sleeve: Chassis Ground
Output Impedance: >100 ohm
Maximum Output Level: +22dBu
Insert Return
1/4” TRS Jack
Tip: Hot (+ve)
Ring: Cold (-ve)
Sleeve: Chassis Ground
Input Impedance: >10k ohm
Maximum Input Level: +12.5dBu
Digital Reference: 0dBFS = +12.5dBU
Optical Inputs
TOSLink Optical Connector
ADAT: 8 channels @ 48kHz
ADAT SMUX: 4 channels @ 96kHz
S/PDIF: 2 Channels @ All sample rates
Input Specs

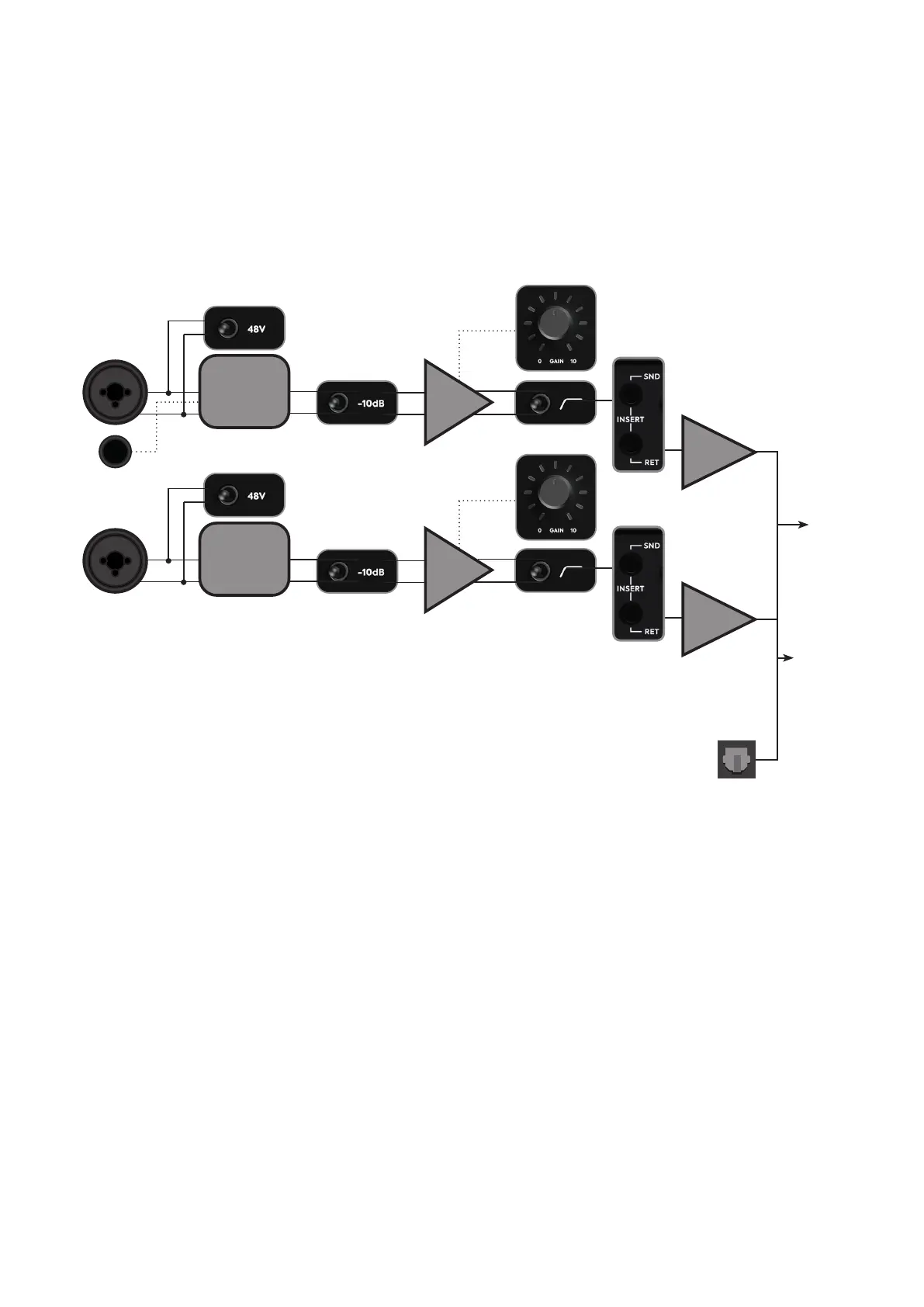

Class A Mic Preamplifer, Inserts, A/D converters and
Optical Input Block Diagram
USB
OUT
Auto
Sense
Input
Select
Hardware Features
