48
Click on Audient iD24 in the side menu. Here
you will see the main iD24 information, where
clock sources can be set as well as activating
i/o ports. Be sure to click Externally Clocked if
clocking from another digital device via ADAT
or SPDIF.
I/O ports can be renamed in the device panel
such that they better represent what you
connect to them (for example Main Monitors,
Headphones). This is useful as any names
chosen here will be those displayed when
assigning i/o on track input/output channel
routing.

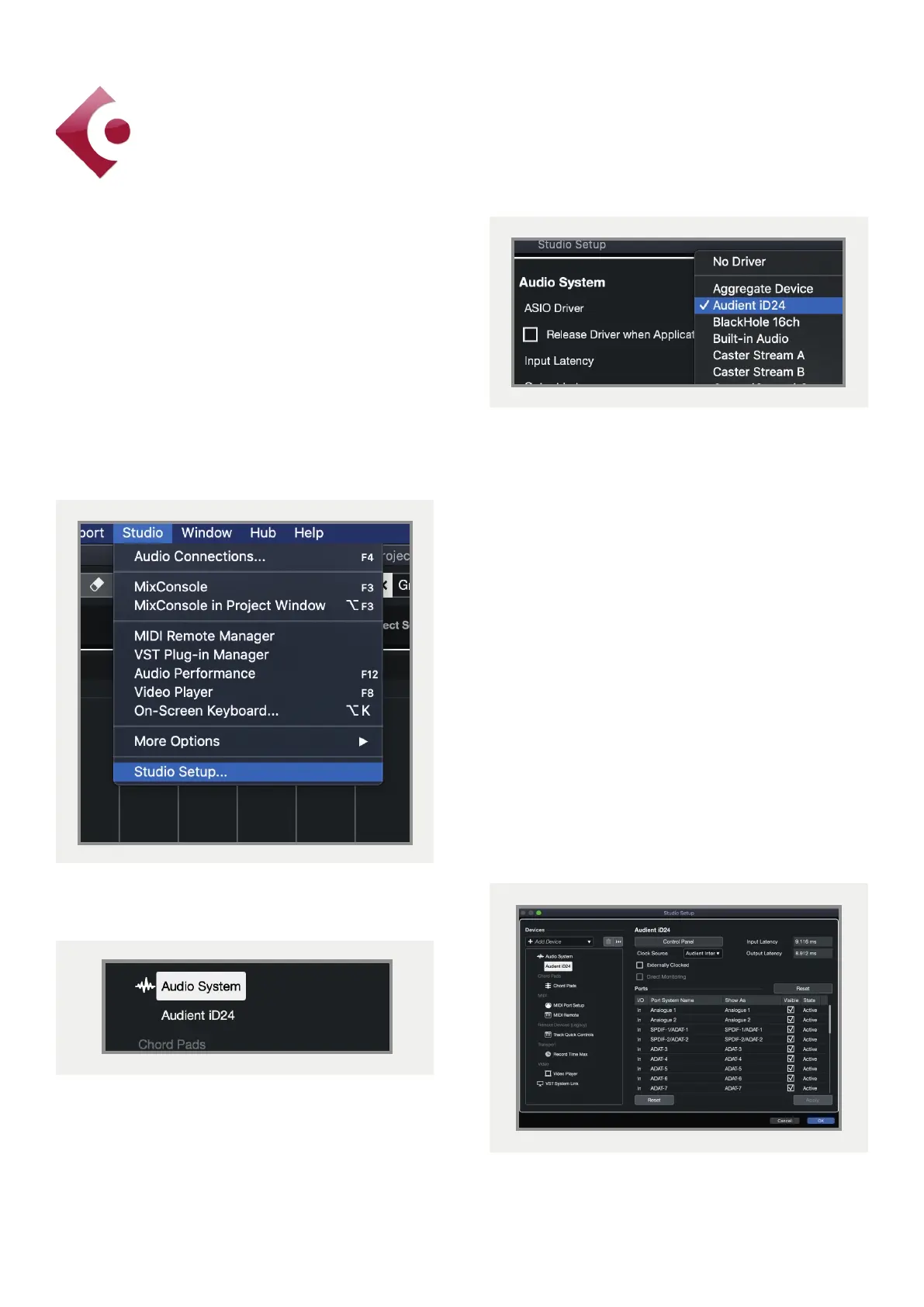

Operation with Cubase / Nuendo
Once iD24 has been successfully installed
following the installation process that can
be found at the start of this manual, launch
Cubase or Nuendo and head straight for the
‘Studio’ menu:
Devices > Device Setup...
Select ‘Audio System’ from the list of options.
Select ‘Audient iD24’ in the dropdown menu
to ensure that Cubase / Nuendo addresses
the iD24 device driver.
Cubase/Nuendo Setup
