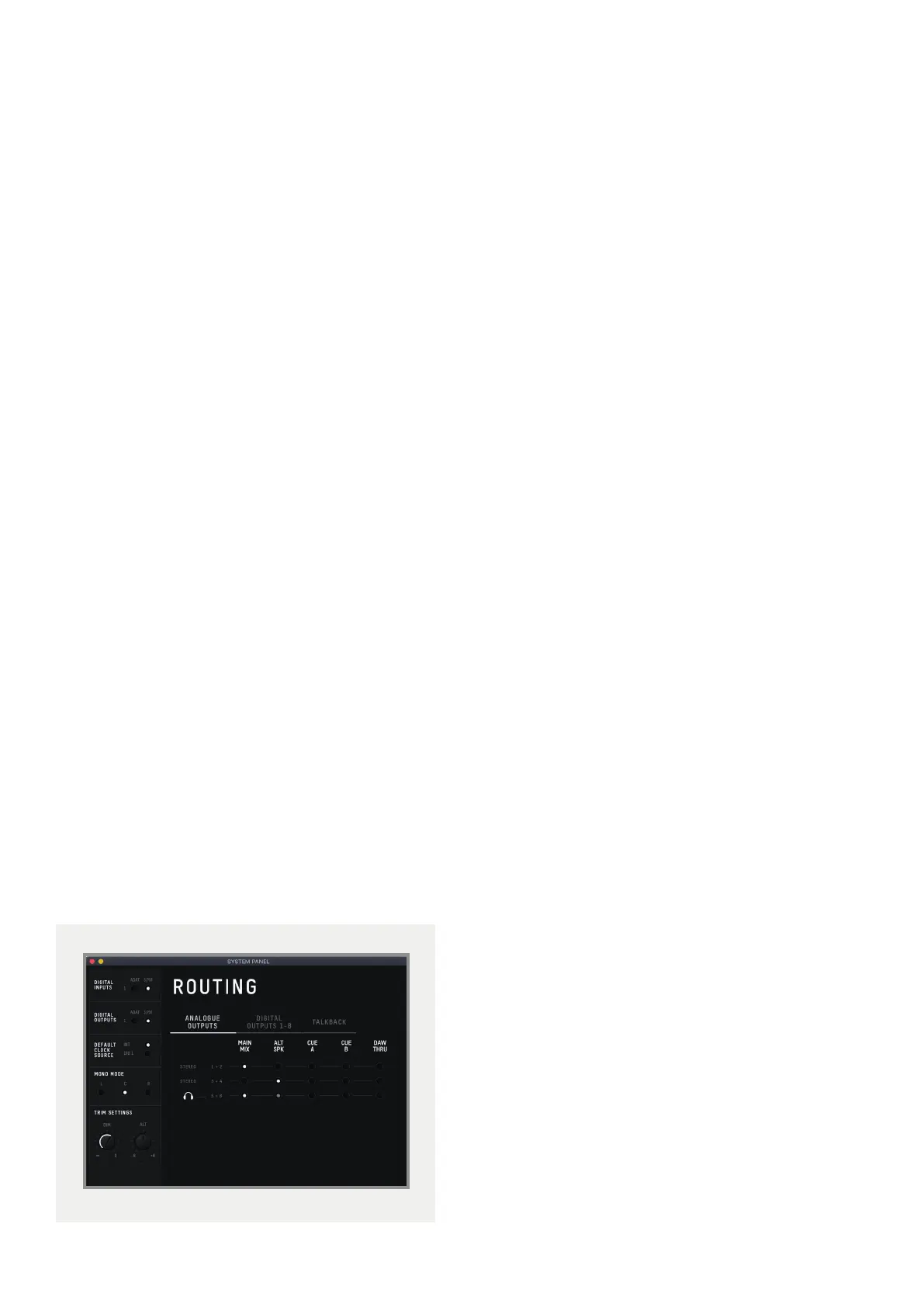

Routing Matrix
The Routing Matrix allows you to control the
audio source for each of iD24’s outputs
from the following options:
• Main Mix - This takes signal from the
Master Mix of the iD Software Mixer. This
is what is usually used for most standard
playback.
• ALT - This takes signal from the Master
Mix but only when the Alt speaker mode
is active.
• Cue A & B - This takes signal from the
two cue mixes which can be created
using the iD Software Mixer. Please note
that the hardware volume control does
not aect these mixes and the Cue’s have
separate trims which can be adjusted
when the Cue Mix is selected in the Main
Mixer Window.
• DAW THRU - This allows you to route to
outputs exactly as they would appear
in your DAW. For example, if you set
Analogue out 1+2 to DAW THRU, anything
your DAW sends out to Outputs 1+2 will be
sent directly to Analogue outputs 1+2.
Please note that in DAW THRU, the
channel in question will bypass any
volume control and audio will be passed
at full scale. If this output is sent to a set
of monitors without inline attenuation, this
may be very loud.
The only exception to this is the
headphone outputs where the volume
control will still function.
