NOTE: 1. CONSOLE CAN ACCOMMODATE UP TO 13 INPUT MODULES, OR 12 INPUT MODULES PLUS ONE SUPERPHONE MODULE.
2. MASTER OUTPUT, CONTROL ROOM, STUDIO CONTROL AND OPTIONAL SUPERPHONE MODULES HAVE THEIR DEDICATED SLOTS (AS SHOWN).
3. LAST TWO SLOTS AT THE RIGHT END OF THE FRAME SHOULD BE USED FOR OPTIONAL LINE PRESELECT AND TAPE REMOTE MODULES.
page 1 – 11

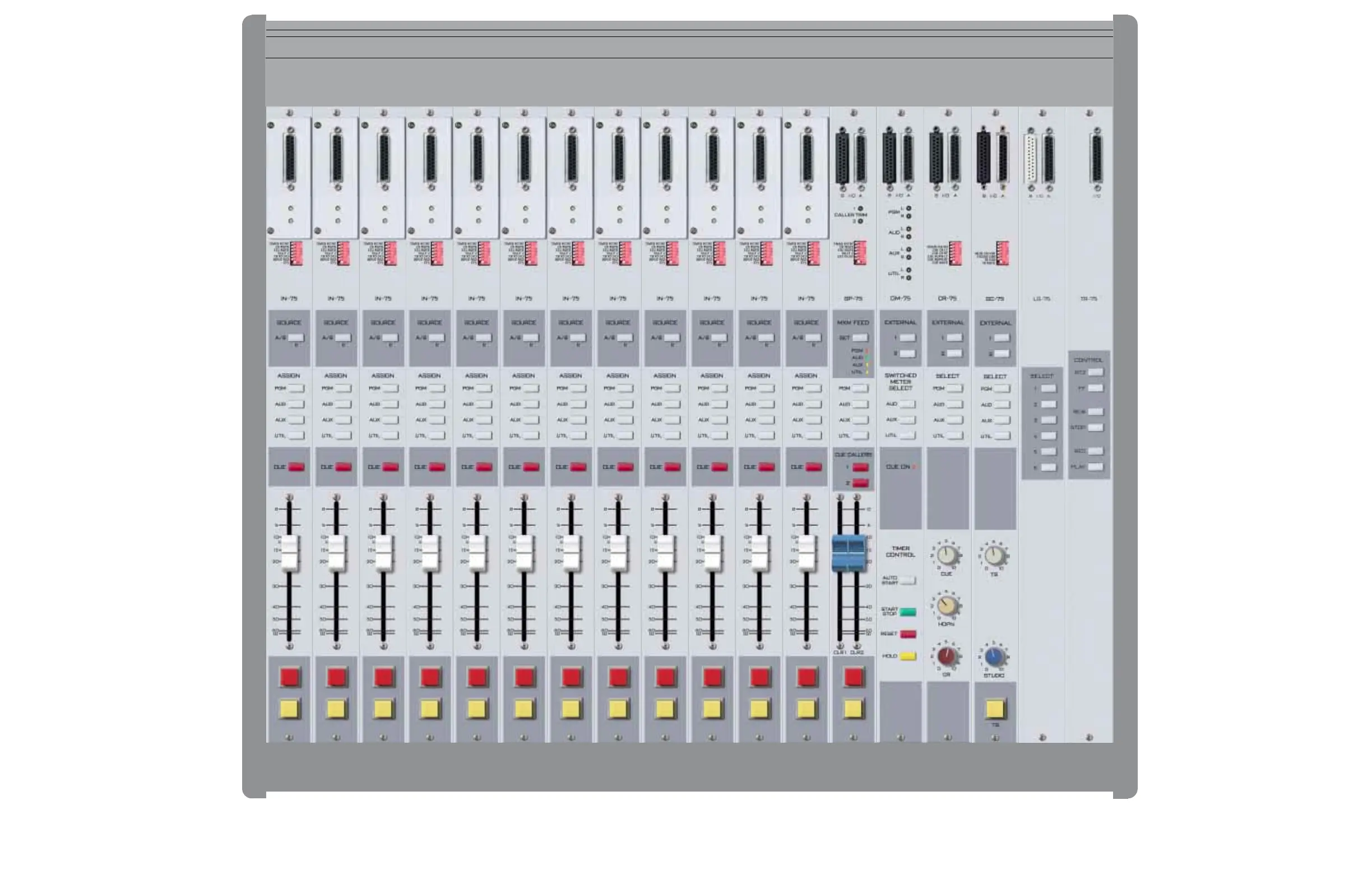

D-75-18 CONSOLE - MODULES LAYOUT
