LINE SELECT MODULE
Line Preselect Module
(LS-75; optional)
Module Overview

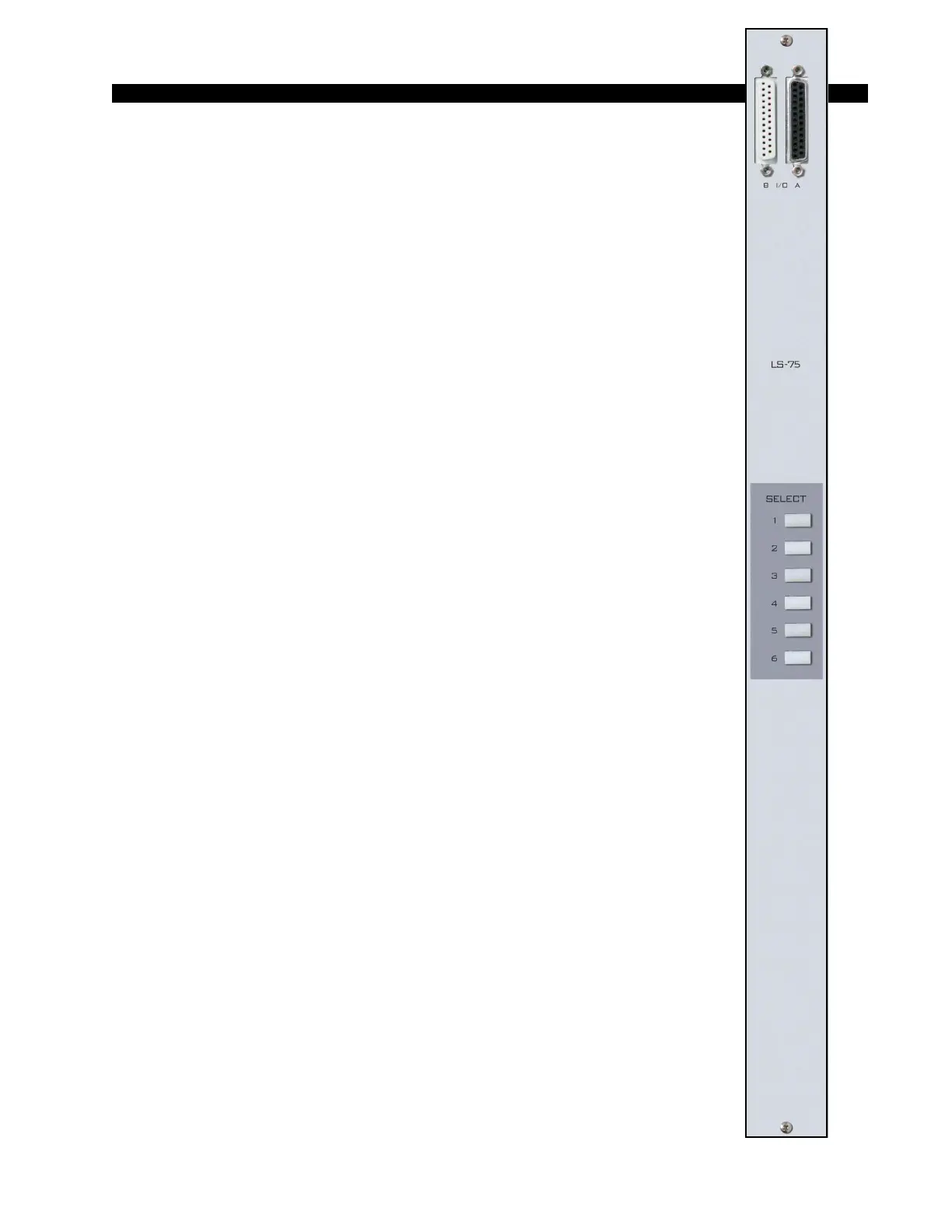

This optional module selects one of six stereo line sources and routes
it to one stereo output, allowing you to expand the source capability of an
input channel or monitor module.
All audio input and output signals are made via two DB-25 multi-pin
connectors mounted at the top of the module and located underneath the
hinged meterbridge.
Internal Programming Options
There are no internal programming options on the LS-75 module.
