AudioArts Engineering D-75 - Analog Inputs - ADC-75

page 3 – 7
D-75 / Sep 2004
STEREO LINE INPUT
D-75 / Feb 2005
IN-75 Analog Input - ADC-75

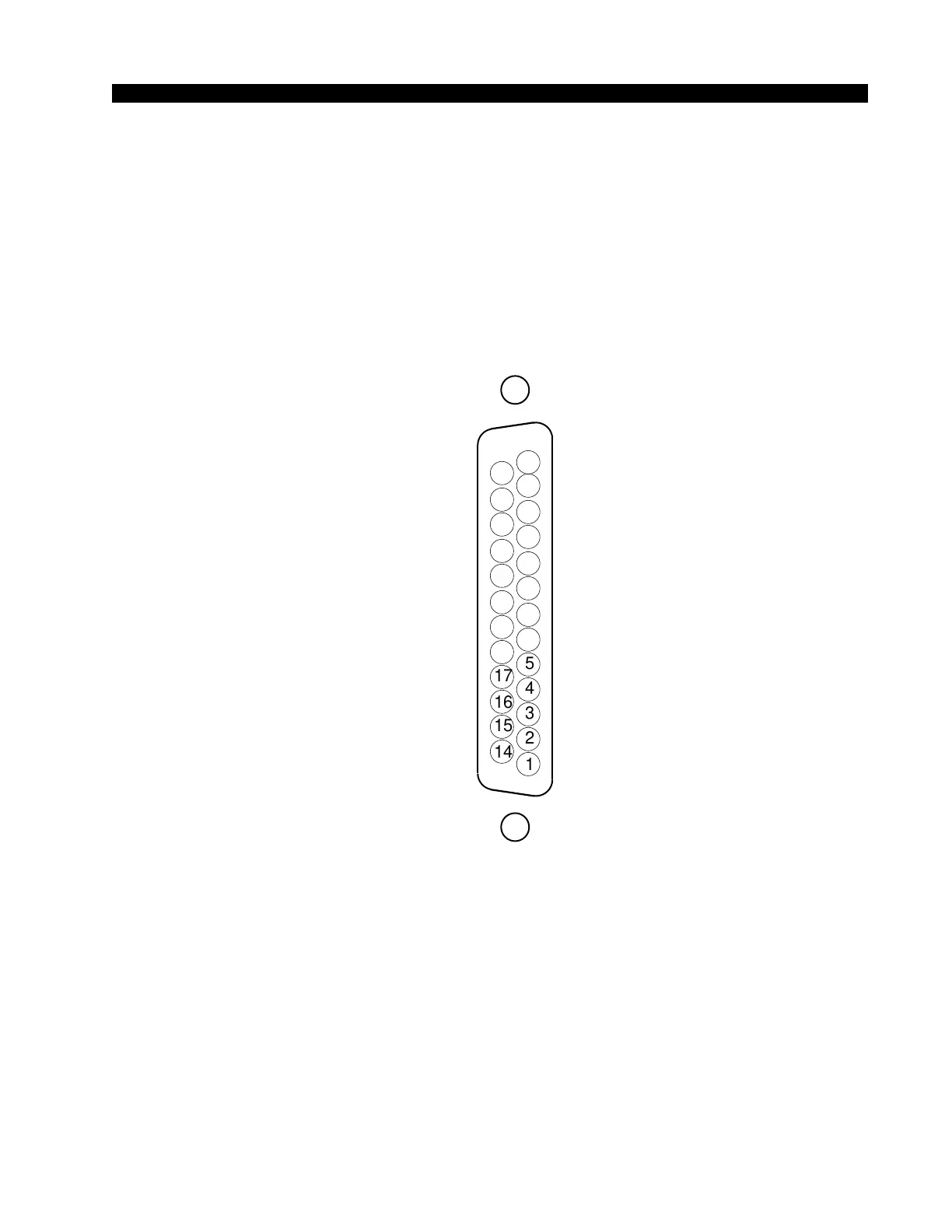

DB Connector Pinouts
I/O PORT
S
ANALOG
AND
LOGIC
LINE A LT IN HI
LINE A RT IN LO
LINE B LT IN HI
LINE B RT IN LO
DIGITAL GROUND
+5V DIGITAL
TB TO CR
REMOTE OFF
ON TALLY
REMOTE ON
AUDIO GROUND
LINE A LT IN LO
LINE A RT IN SH
LINE A RT IN HI
LINE B LT IN LO
LINE B RT IN SH
LINE B RT IN HI
TALLY B
START/STOP COMMON
STOP
START
READY
COUGH
5
4
3
2
1
17
16
15
14
8
7
6
20
19
18
10
9
23
22
21
13
12
11
25
24
LINE A LT IN SH
LINE B LT IN SH
