AudioArts Engineering D-75 - Page 44

page 4 – 5
D-75 /Sep 2004
OUTPUT MODULE
Pin 8 – AUD Rt Out SH
Pin 7 – AUD Rt Out HI
Pin 20 – AUD Rt Out LO
Pin 19 – AUX Lt Out SH
Pin 18 – AUX Lt Out HI
Pin 6 – AUX Lt Out LO
Pin 5 – AUX Rt Out SH
Pin 4 – AUX Rt Out HI
Pin 17 – AUX Rt Out LO
Pin 16 – UTIL Lt Out SH
Pin 15 – UTIL Lt Out HI
Pin 3 – UTIL Lt Out LO
Pin 2 – UTIL Rt Out SH
Pin 1 – UTIL Rt Out HI
Pin 14 – UTIL Rt Out LO

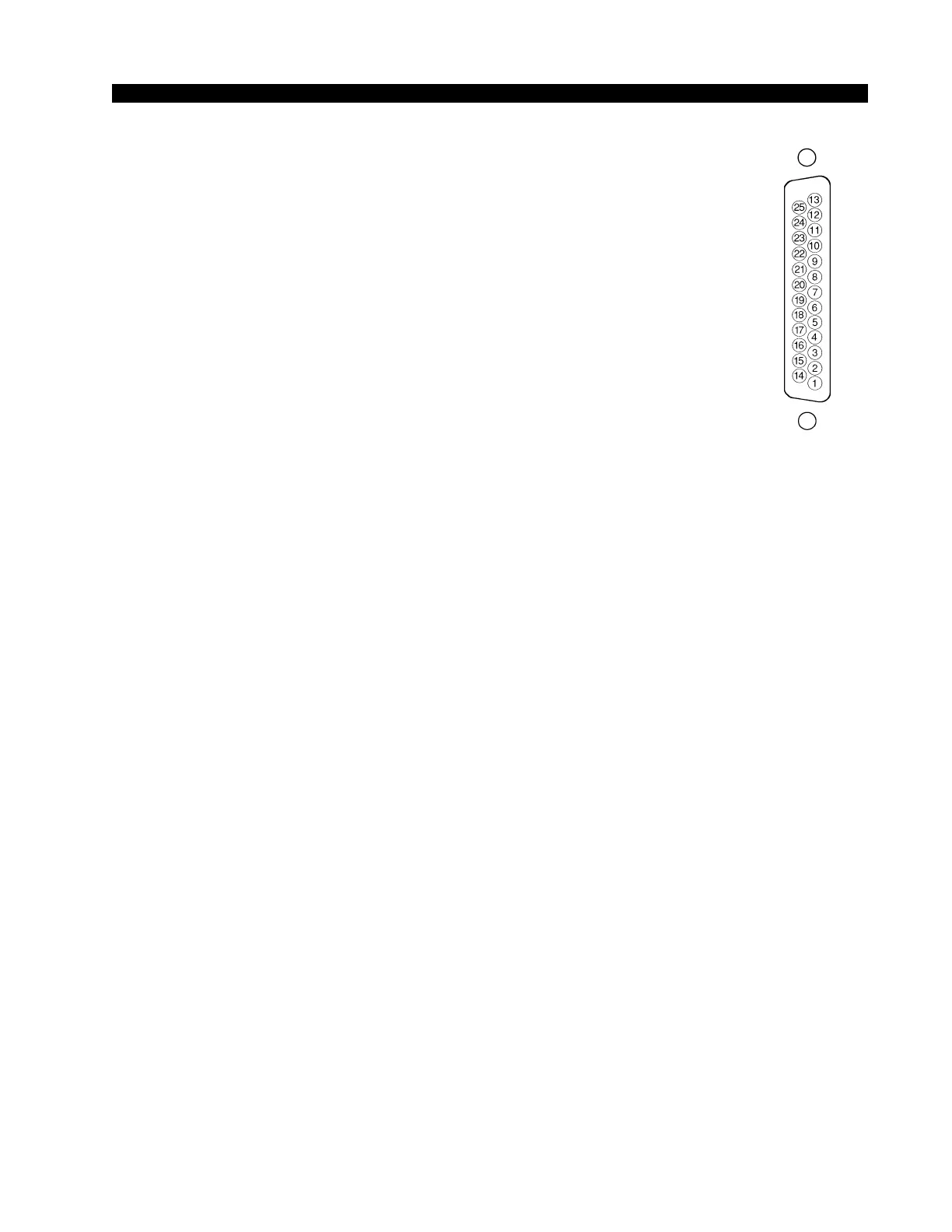

Typical DB-25
connector
