AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER4 Mounting the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

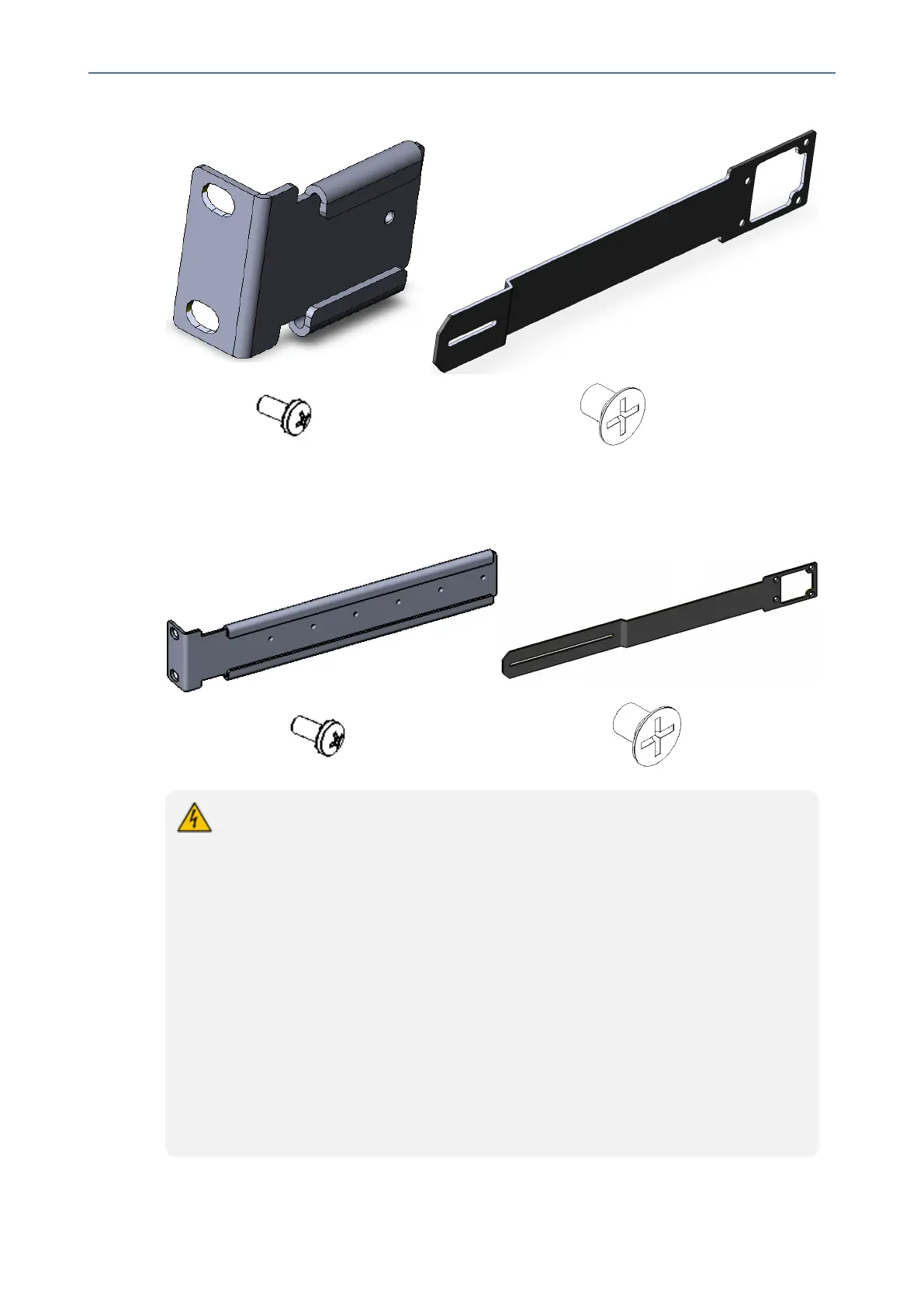

Rear-Mounting Bracket x 2
Rear-Mounting Flange x 2
x 2
x 6
■ Fixed-length rear-mounting bracket of 80 cm (31.5 in.) The CPN of this kit is M1KB-REAR-
RMK-80.
Rear-Mounting Bracket x 2
Rear-Mounting Flange x 2
x 6
x 6
● At least two people are required to mount the device in the 19-inch rack.
● When attaching the device to the rack using the rear-mounting brackets, it is
mandatory to also attach the front-mounting brackets.
● To allow extraction and insertion of modules on the rear panel, make sure that
the distance between the rear panel and the rear rack posts is at least 580 mm.
Thus, card extraction can be done without disassembling the rear-mounting
brackets.
(French) Avertissements:
● Au moins deux personnes sont nécessaires pour monter l’appareil dans le bâti
19 pouces.
● En fixant l’appareil au bâti en utilisant des supports de montage arrière, il est
impératif de fixer également les supports de montage avant.
● Pour permettre l’extraction et l’insertion des modules sur le panneau arrière,
assurez-vous que la distance entre le panneau arrière et les montants arrière du
bâti soit d’au moins 580 mm. Ainsi, l’extraction de la carte pourra être effectuée
sans démonter les supports de montage arrière.
- 27 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
