➢ To mount the device in a 19-inch rack with front- and rear-mounting brackets:
1. Open the Rear Mounting Bracket kit and remove its contents. Make sure that all the items
are included in the kit (see above).
2. Attach the two rear-mounting brackets to the two-rear rack posts, using two screws (not
supplied) per bracket. Make sure that you attach the brackets at the same height level in
the rack. See the following figure for correct orientation of the brackets when attaching
them to the posts.

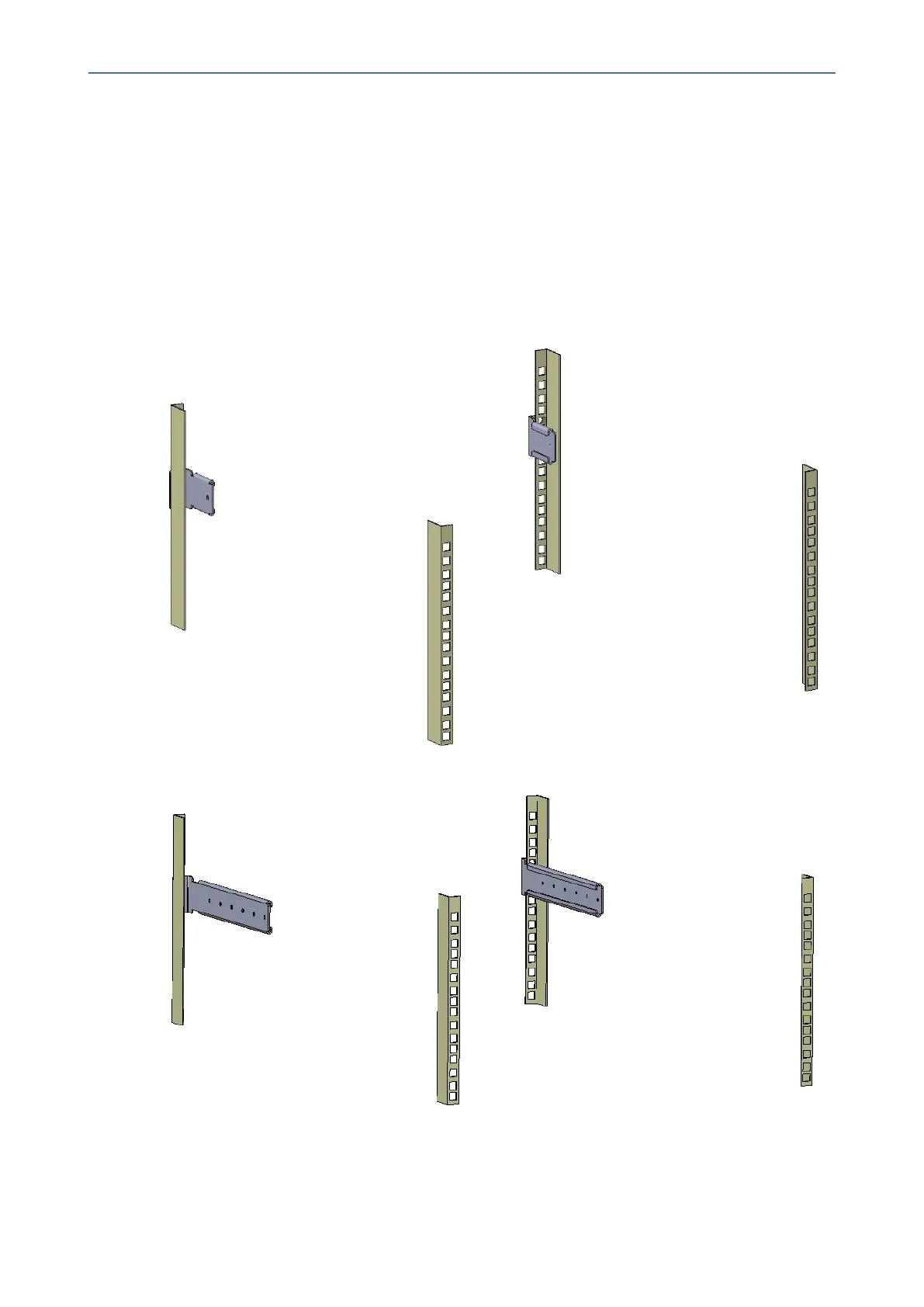

Figure 4-2: Rear-Mounting Brackets Attached to Rear-Rack Posts (60 cm)
Figure 4-3: Rear-Mounting Brackets Attached to Rear-Rack Posts (80 cm)
3. Attach the rear-mounting flanges to the rear sides of the chassis, using three screws
(supplied) per flange.
