CHAPTER4 Mounting the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

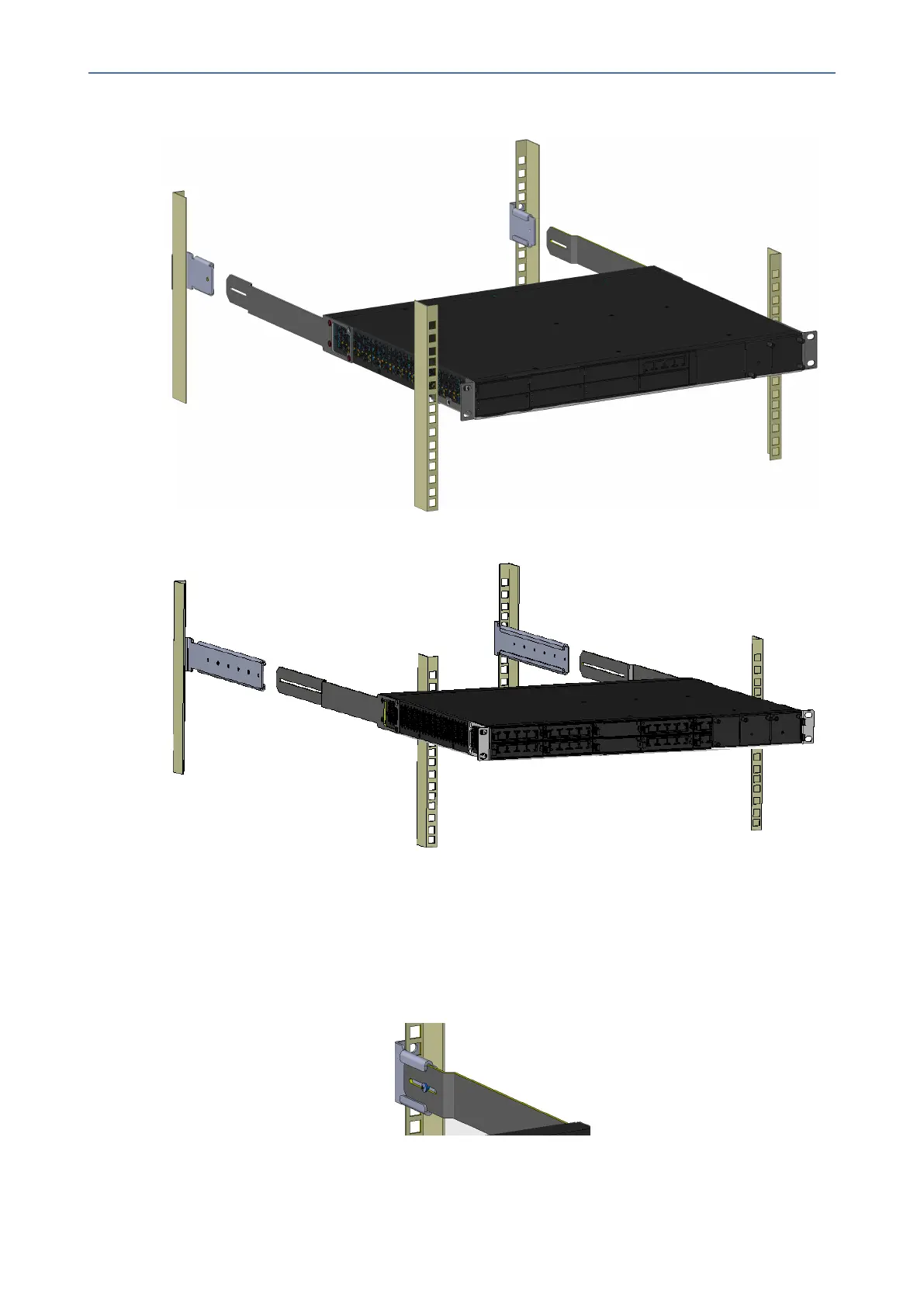

Figure 4-6: Sliding the Rear-Mounting Flanges into the Rear-Mounting brackets (60 cm)
Figure 4-7: Sliding the Rear-Mounting Flanges into the Rear-Mounting Brackets (80 cm)
6. Hold the chassis in position while the second person secures the rear-mounting flanges to
the rear-mounting brackets. Insert the supplied screws (6-32 x 5/16 inch) from the inside of
the rack, through the flange's grid and into the screw hole on the rear-mounting bracket.
Finger-tighten the screws but make sure that the screws are NOT fully tightened and that
the flange can freely move on the slide rails of the rear-mounting bracket.
Figure 4-8: Fastening Rear-Mounting Flange to Rear-Mounting Bracket (60 cm)
- 30 -
