AudioCodes Mediant 1000

CHAPTER4 Mounting the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

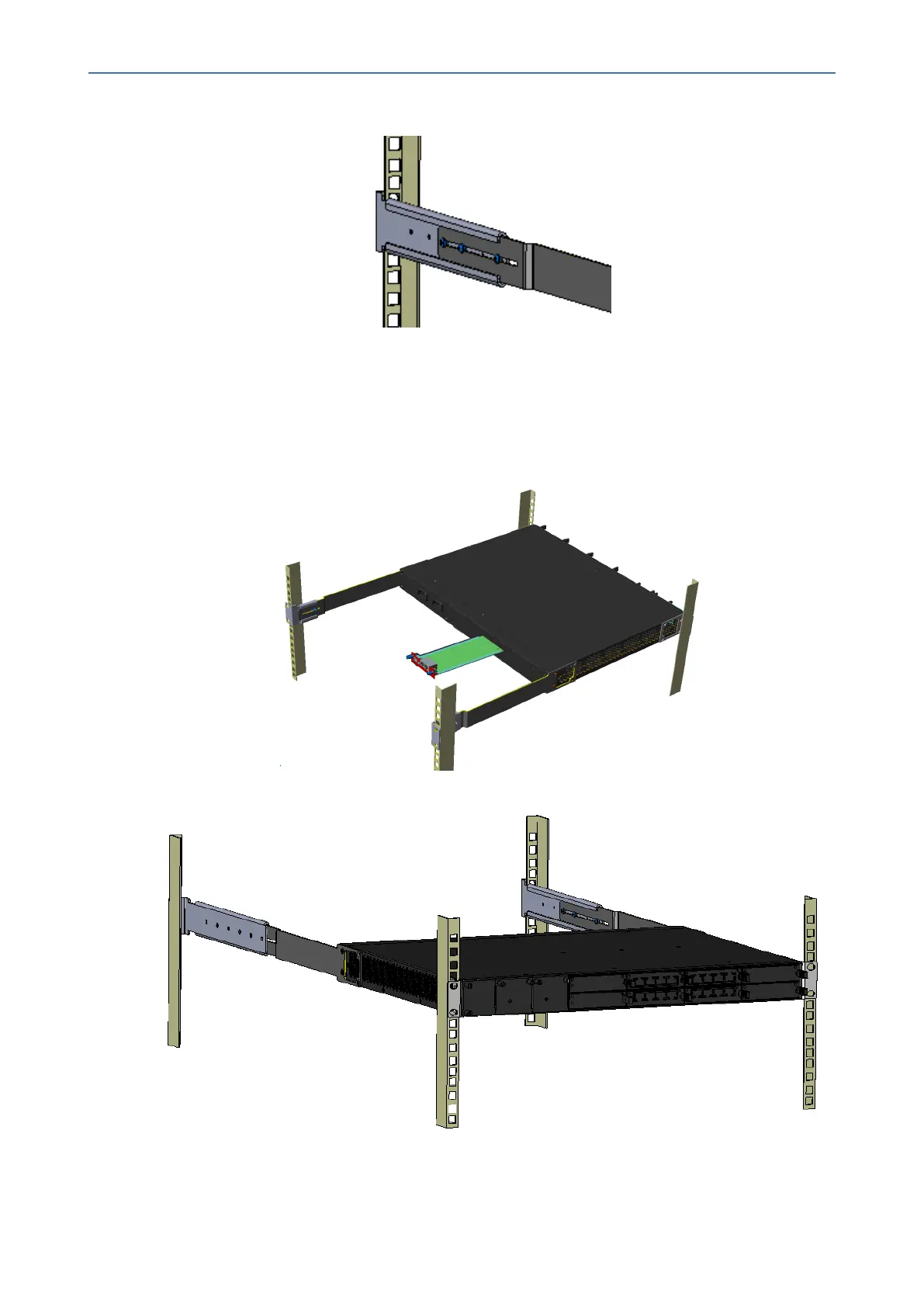

Figure 4-9: Fastening Rear-Mounting Flange to Rear-Mounting Bracket (80 cm)
7. Hold the chassis for support while the second person positions the chassis so that the front-
mounting brackets are flush against the front-rack posts and that the holes of the front-
mounting brackets align with the holes on the front-rack posts.
Figure 4-10: Front-Mounting Brackets Flush and Aligned with Front Rack Posts (60 cm)
Figure 4-11: Front-Mounting Brackets Flush and Aligned with Front Rack Posts (80 cm)
- 31 -
