AudioCodes Mediant 1000 Hardware Installation Manual

CHAPTER6 Hardware Maintenance
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
e. Click OK to confirm removal; after a few seconds, the module is software-removed, the
port status icons of the module turn gray and the name of the module is suffixed with
the word "Reserved":

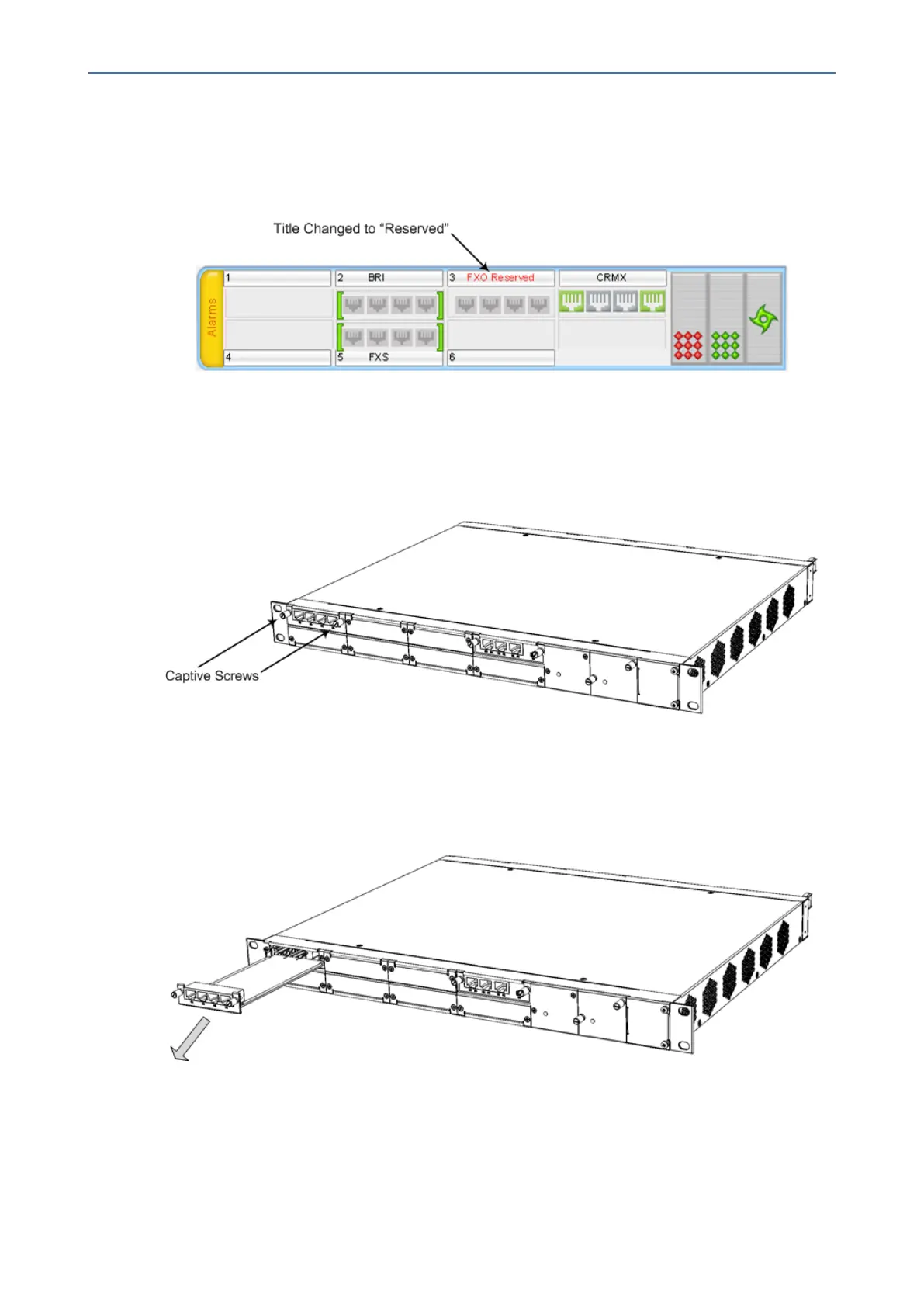

Figure 6-8: Software-Removed Module
4. Unplug all the cables from the module.
5. Physically remove the module from the slot:
a. Locate the two captive screws securing the module to the chassis:
Figure 6-9: Captive Screws on Module
b. Using a flathead screwdriver or your fingers, loosen the two captive screws.
c. Firmly grip the two captive screws and extract the module from the slot by pulling the
captive screw:
Figure 6-10: Extracting Module from Slot
6. Physically insert the new module into the same slot:
- 62 -

AudioCodes Mediant 1000 Specifications

General

Data link protocols	CAS: MF-R1: T1 CAS, ISDN PRI: ETSI/EURO ISDN, ANSI NI2, QSIG
Security algorithms	HTTPS, SRTP
Authentication method	RADIUS
Internal memory	512 MB
Built-in processor	Celeron 600 MHz
Processor frequency	600 MHz
Internal memory type	-
Number of processors installed	1
Voice codecs	G.711, G.723.1, G.726, G.729A, iLBC
Safety	UL60950-1, FCC 47 CFR
Certification	ETS 300019-2-1, ETS 300019-2-2 ETS 300019-2-3
Mounting type	Rack mounting
LED indicators	Yes
Power requirements	90-260 V AC

Weight and Dimensions

Size (imperial)	19 \
