3 Physical Description
This section provides a physical description of the device.
3.1 Physical Dimensions and Operating Environment
The device's physical dimensions and operating environment are listed in the table below:
Table 3-1: Physical Dimensions and Operating Environment
Specification Value
Dimensions (H x W x D) 51 x 296 x 165 mm (2 x 11.65 x 6.5 in.)
Weight 670 g (1.5 lbs.)
Operating Environment
 Operational: 5 to 40°C (41 to 104°F)
 Storage: -25 to 85°C (-13 to 185°F)
 Relative Humidity: 10 to 90% non-condensing
3.2 Front Panel Description
The front panel provides LEDs for indicating the status of various functionalities. The LEDs
are shown in the figure below and described in the subsequent tables.

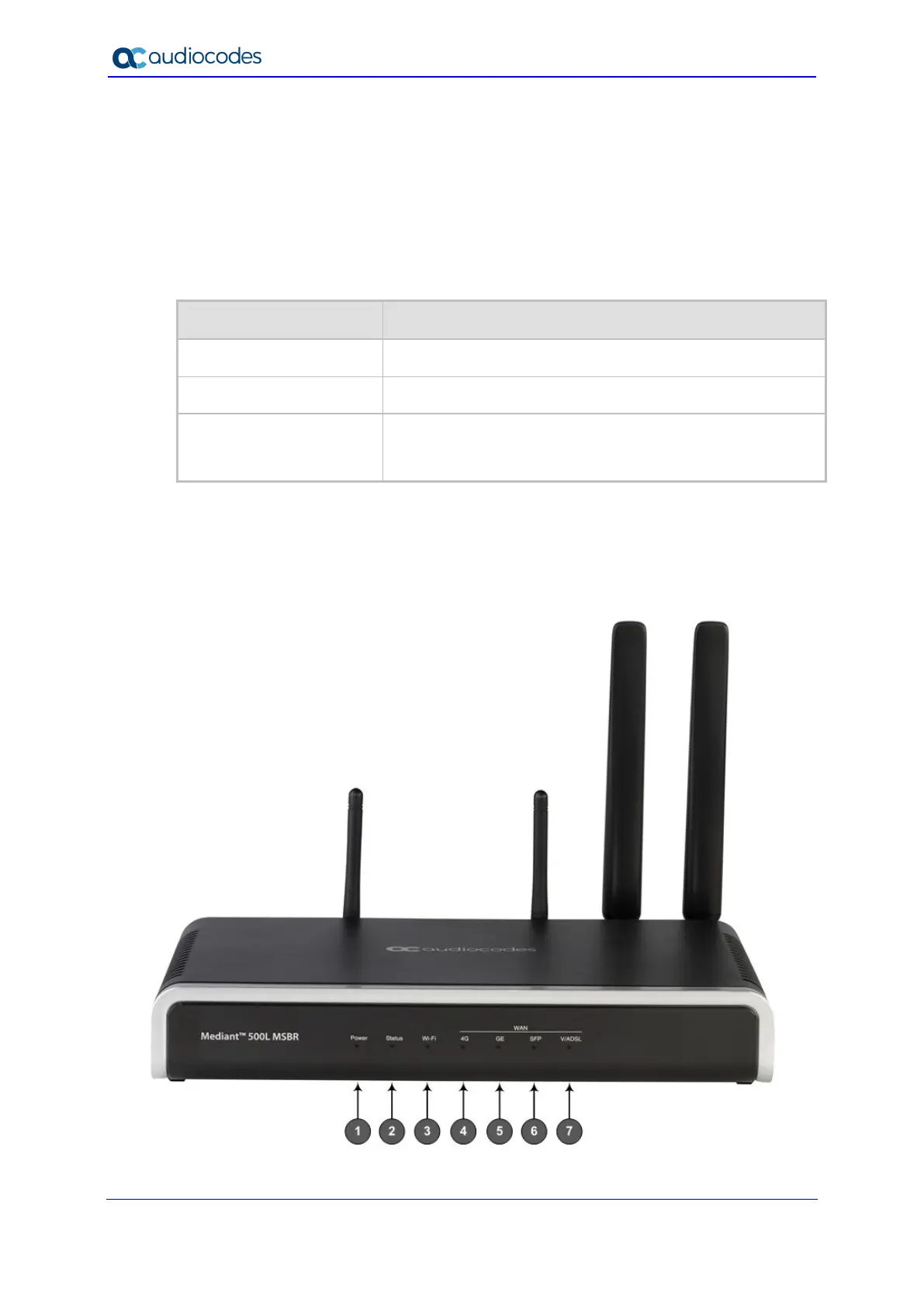

Figure 3-1: Front Panel
