3. Attach the two cellular antennas (supplied) to the antenna connectors, located on the
rear panel, by hand screwing the antennas onto the connectors. Make sure that the
antennas are securely fastened to the connectors.

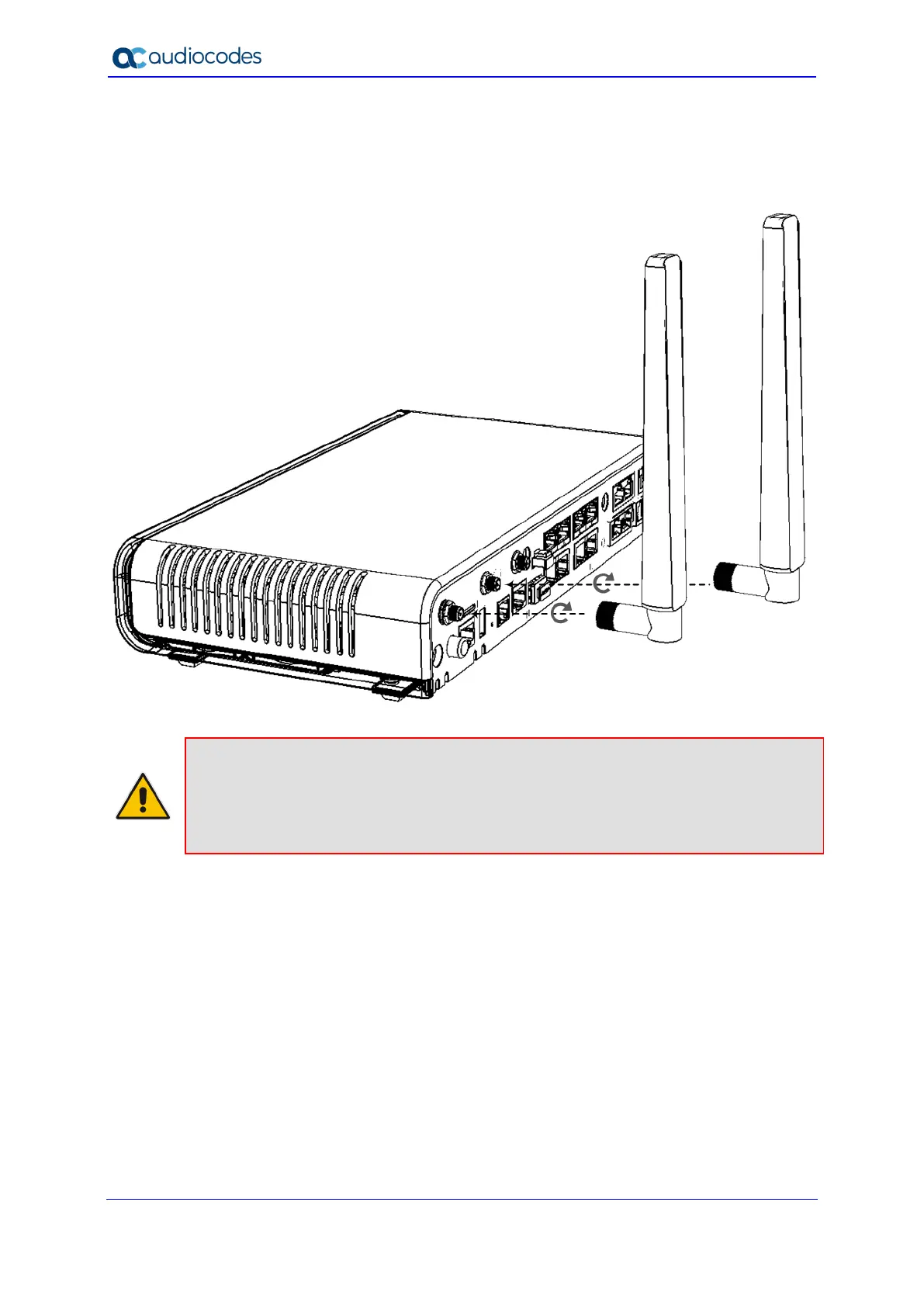

Figure 6-7: Connecting Cellular Antennas
Note:
• You must attach both antennas for LTE connectivity.
• The exact location of the second antenna post that is located to the right of the far-left
antenna post, depends on the ordered hardware configuration. For convenience, the
figure above shows the two possible locations of the second antenna post.
4. Orient the antennas as desired for optimal reception with the LTE network. The
antennas can be orientated in the vertical and horizontal planes. For best
performance, it is recommended that the antennas be perpendicular (90 degrees) to
the floor. In other words, orient the antennas straight up.
5. Mount the device in a location that receives the best LTE connection (signal).
