3.3 Rear Panel Description

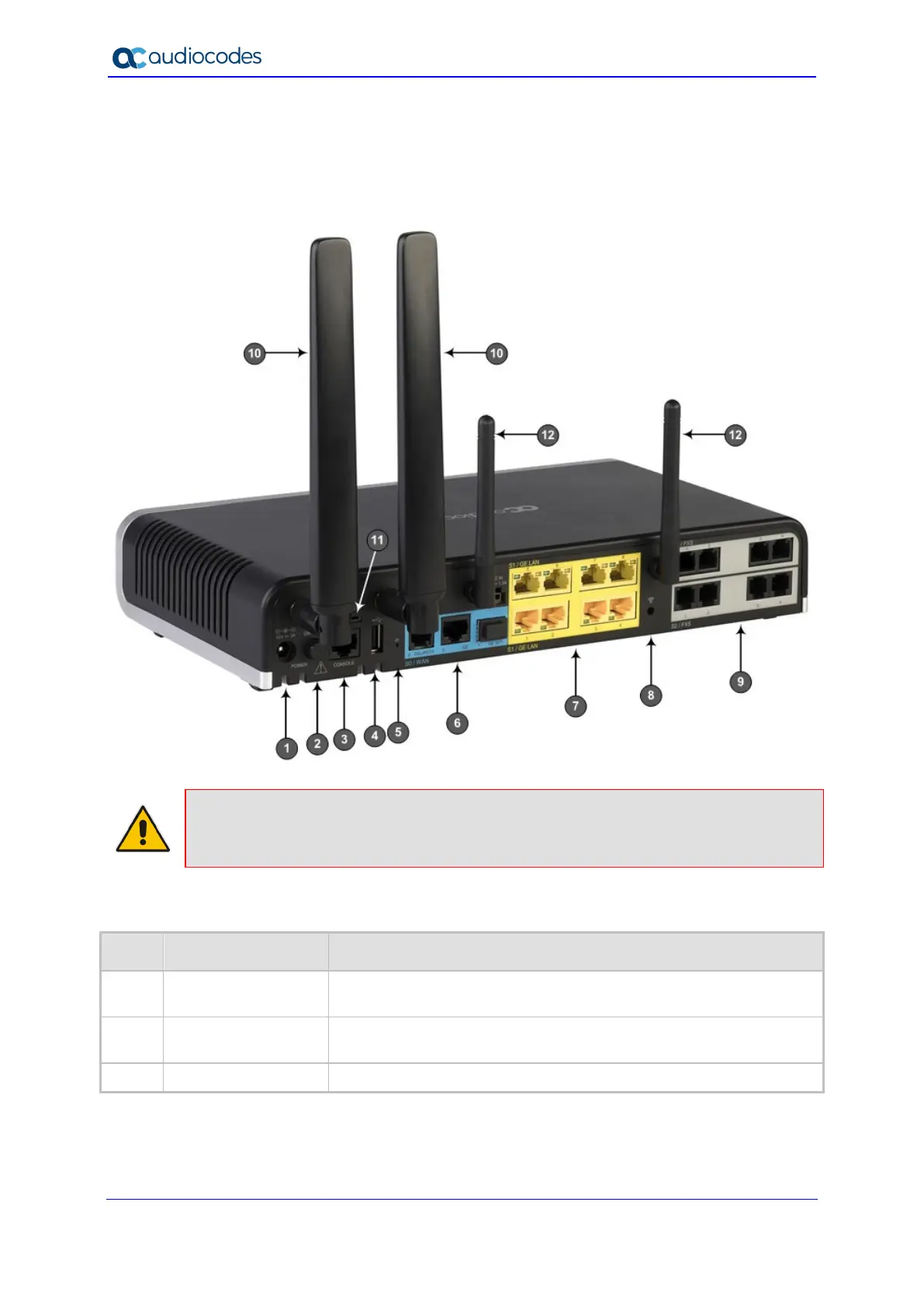

The device's rear panel is shown in the figure below and described in the subsequent table.
Figure 3-2: Rear Panel
Note: The figure above is used only as an example. The hardware configuration
depends on the ordered model.
Table 3-10: Rear Panel Description
Item # Label Description
1 POWER DC power supply plug entry for connecting the device to the external
AC/DC power supply adapter.
2 ON / OFF Power button which powers on the device when pressed in and
powers off the device when pressed again (pressed out).
3 CONSOLE RJ-45 port for RS-232 serial communication with the device.
