MSBR Series 23 MSBR Series
Hardware Installation Manual 4. Mounting the Device
4.2 Wall Mounting
You can mount the device on a wall using the keyholes on the bottom of the device.
To mount the device on a wall:
1. Drill three holes in the wall where you want to mount the device, using the distances
between the holes as shown in the figure below:
• Horizontal distance between the top two parallel holes: 89 mm (5.51 in.)
• Vertical distance between the top two parallel holes and bottom hole: 204 mm
(8.03 in.)
• Horizontal distance between a top hole and the bottom hole: 44.5 (1.75 in.)

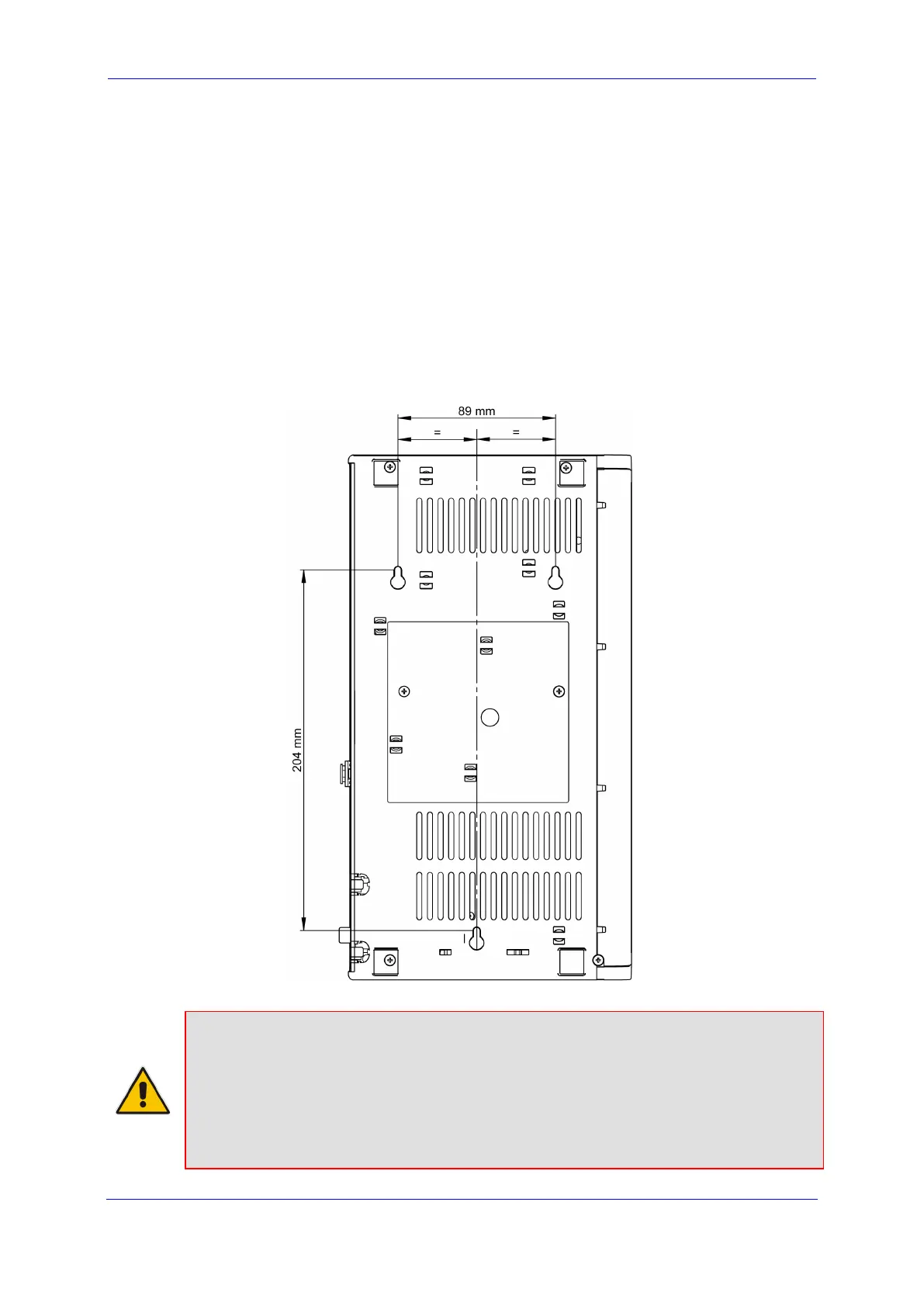

Figure 4-5: Dimensions for Drilled Holes
Note:
• When choosing the area on the wall to mount the device, make sure that sufficient
space is available for attaching cables on the rear panel.
• Make sure that you drill the holes in the same orientation as shown in the above
figure (i.e., two parallel holes on the top and the single hole on the bottom).
• Use the mounting template on the following page (print out) to mark the locations for
the mounting holes on the wall.
