MSBR Series 21 MSBR Series
Hardware Installation Manual 4. Mounting the Device
To mount the device in a 19-inch rack:
1. Position the rack mount shelf (ordered separately from AudioCodes) in the 19-inch
rack, aligning the holes of the shelf's side brackets with the holes of the rack's front
posts, as shown in the figure below.

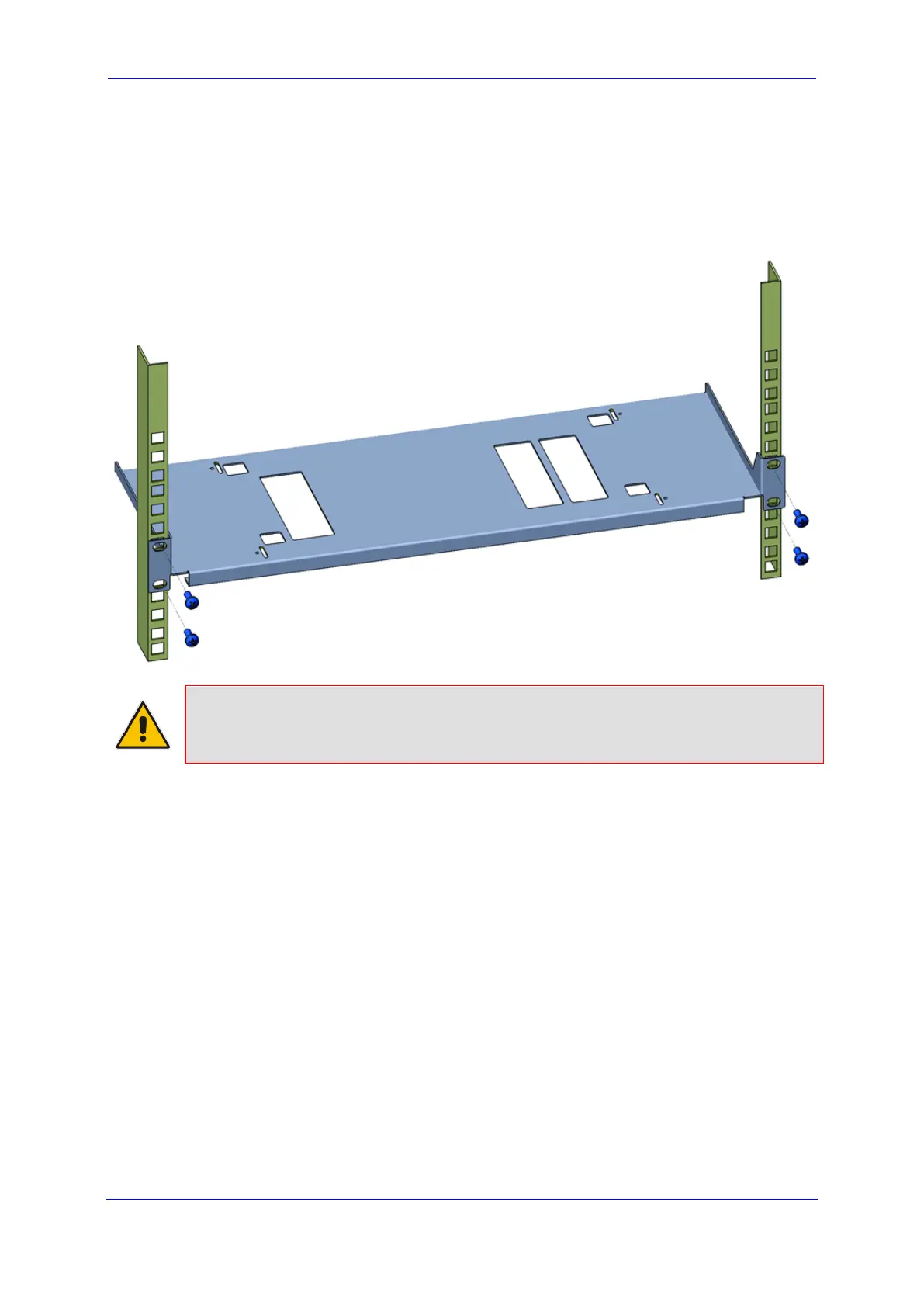

Figure 4-2: Positioning Shelf in Rack
Note: Make sure that you attach the shelf's side brackets (left and right) at the same
height level in the rack so that the shelf is in a horizontal position.
2. Attach the shelf to the rack posts using four standard 19-inch rack bolts (not supplied).
