MSBR Series 25 MSBR Series
Hardware Installation Manual 4. Mounting the Device
2. Insert wall anchors of the appropriate size into each hole.
3. Thread screws (not supplied) into each of the wall anchors. The recommended screw
type is DIN 7982 3.5x25 Phillips flat head. Make sure that the heads extend sufficiently
(about 4 mm or 0.157 in.) from the wall for the device's keyholes to hang on:

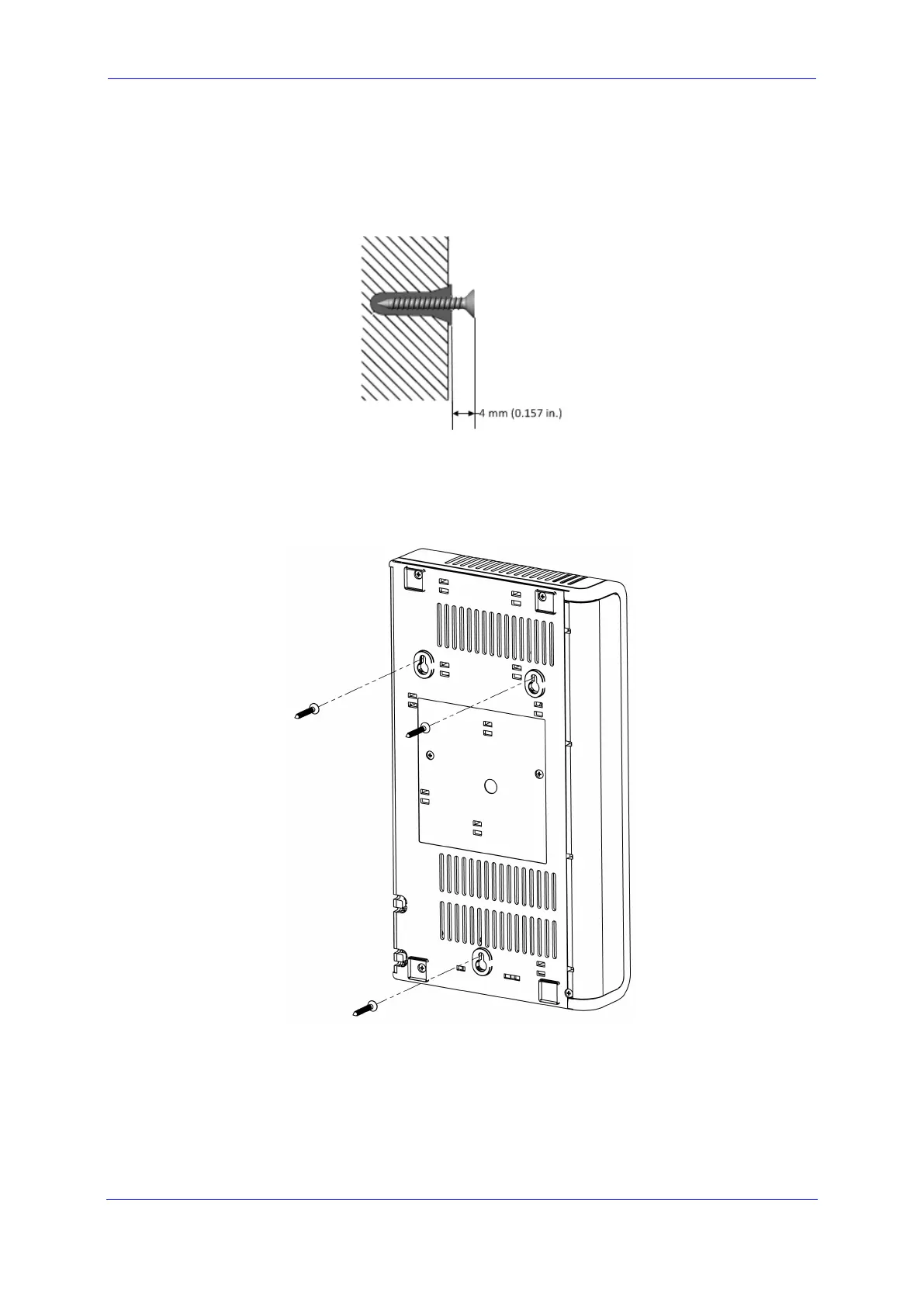

Figure 4-6: Protruded Screw Distance from Wall Surface
4. Hold the device so that it is orientated with the bottom panel with the keyholes facing
the wall and the rear panel with the ports facing your right.
5. Mount the device on the wall by hanging the device's keyholes on the screw heads:
Figure 4-7: Hanging Device on Screw Heads
