5 Wi-Fi Connection
Note: Wi-Fi functionality is a customer a separate orderable item.
5.1 Orienting the Wi-Fi Antennas
If you have ordered LAN wireless (Wi-Fi) functionality, the device is shipped with two pre-
attached, external Wi-Fi antennas. You can orient the antennas in the vertical plane, from 0
to 180 degrees for optimal wireless transmission and reception. For best performance, it is
recommended that the antennas be perpendicular (90 degrees) to the floor. In other words,
orient the antennas straight up.

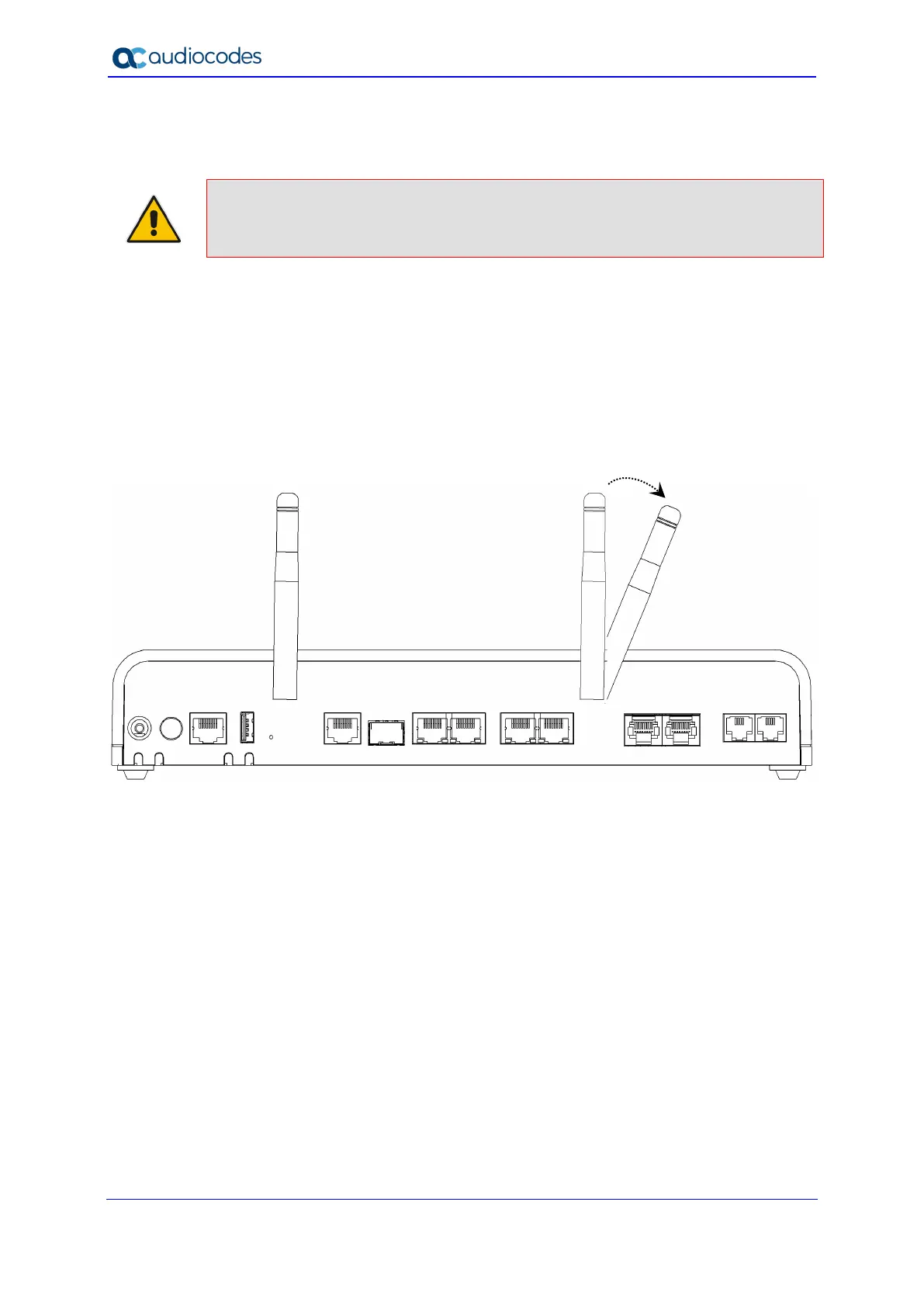

Figure 5-1: Orienting Wi-Fi Antenna
5.2 Switching Wi-Fi On and Off
The wireless LAN interface can be turned on or off by pressing the Wi-Fi pinhole button
located on the rear panel (see Section 3.3 on page 16).
