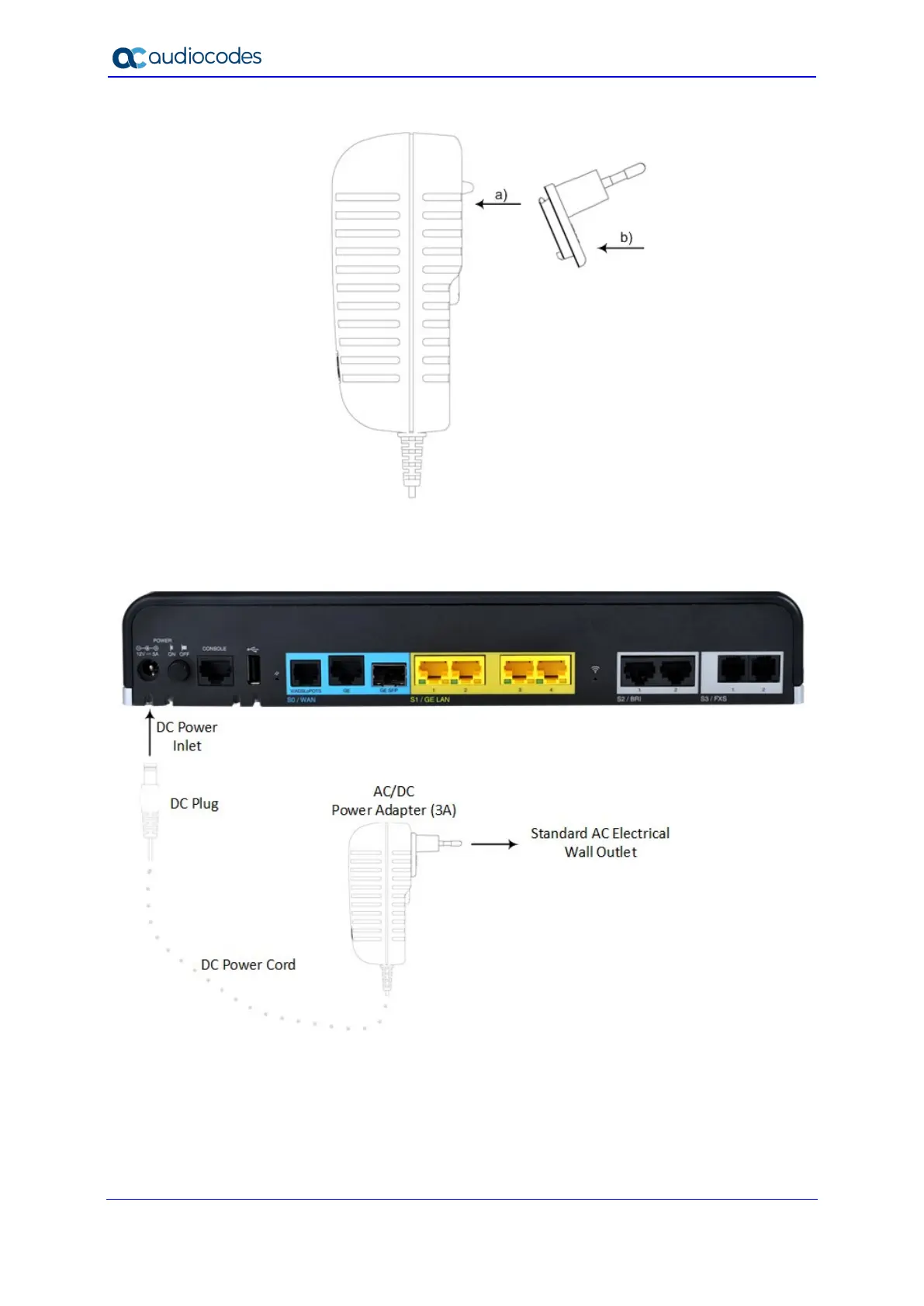

Figure 6-21: Inserting Plug into Power Adapter
2. Insert the DC plug (5) located at the end of the power cord (4) of the power adapter
into the device's power socket located on the rear panel.
Figure 6-22: Cabling to Power with 3A AC/DC Power Adapter
3. Plug the power adapter directly into a standard electrical wall outlet.
