MSBR Series 51 MSBR Series
Hardware Installation Manual 6. Cabling the Device
6.7.2 5-Amp Power Supply Cabling
For 5-Amp power supply, the device is shipped with an AC/DC power adapter that supplies
5 amps. The adapter provides an integrated DC power cord with a DC plug for attaching to
the device. For the connection to the standard AC electrical wall outlet, an AC power cord
with a female, 2-prong plug (C2) on one side for connecting to the AC/DC adapter and a
plug on the other end for connecting to electrical wall outlet
To connect the device to the power supply using the 5-Amp power adapter:
1. Connect the DC plug at the end of the DC power cord to the device's power socket,
located on the rear panel.
2. Connect the 2-prong plug at one end of the AC power cord to the power adapter.

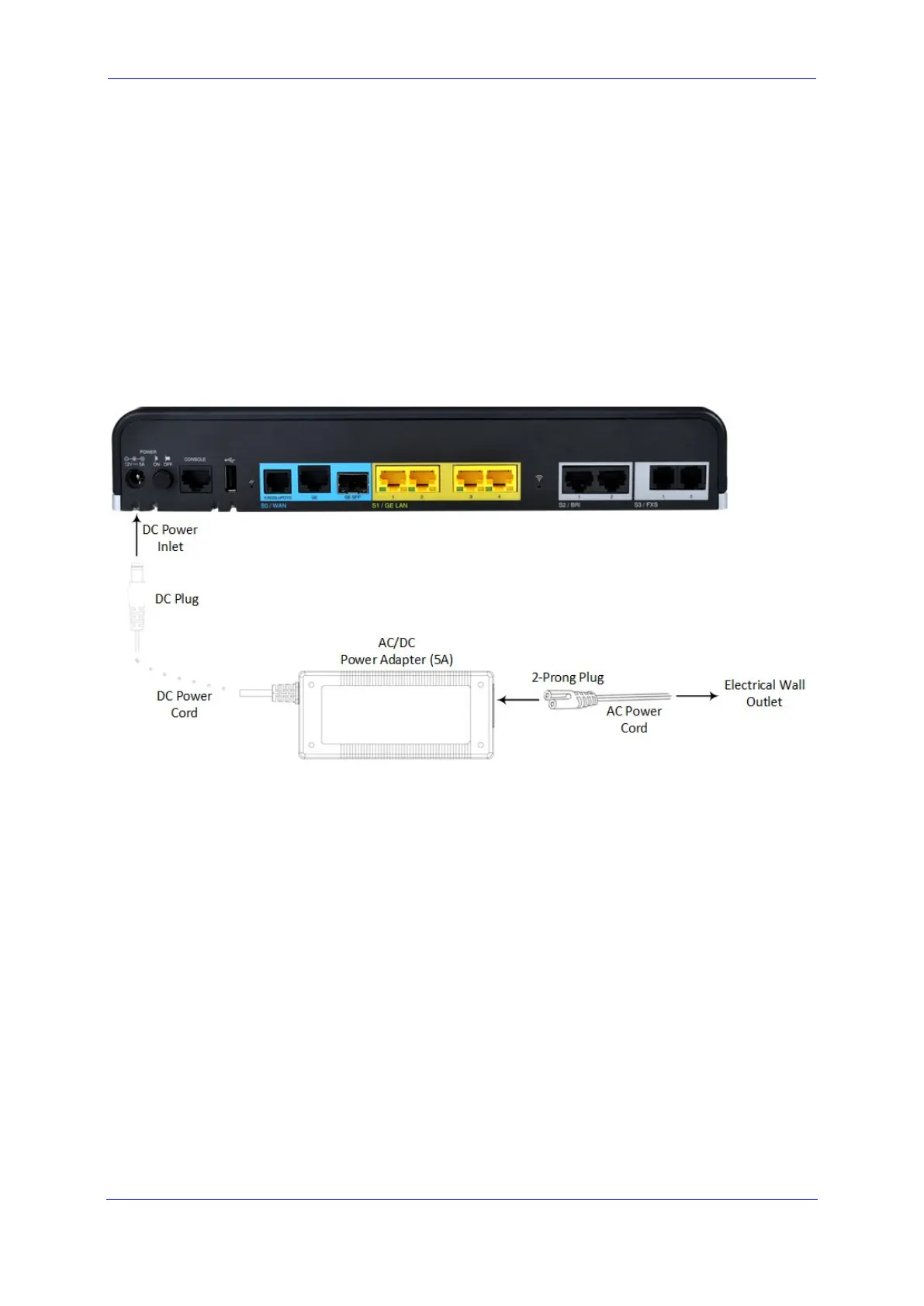

Figure 6-23: Cabling to Power with 5A AC/DC Power Adapter
3. Connect the plug at the other end of the AC power cord to a standard electrical outlet.
6.7.3 Switching Power On and Off
The device is equipped with a power switch, which is located on its rear panel (see Section
3.3 on page 16) for turning it on or off.
To power on the device:
Press in the power button; the device receives power, indicated by the lighting of the
Power LED, located on the front panel.
To power off the device:
Press out the power button; the device powers off, indicated by the Power LED going
off.
