Hardware Installation Manual 22 Document #: LTRT-10453
Mediant 500L MSBR

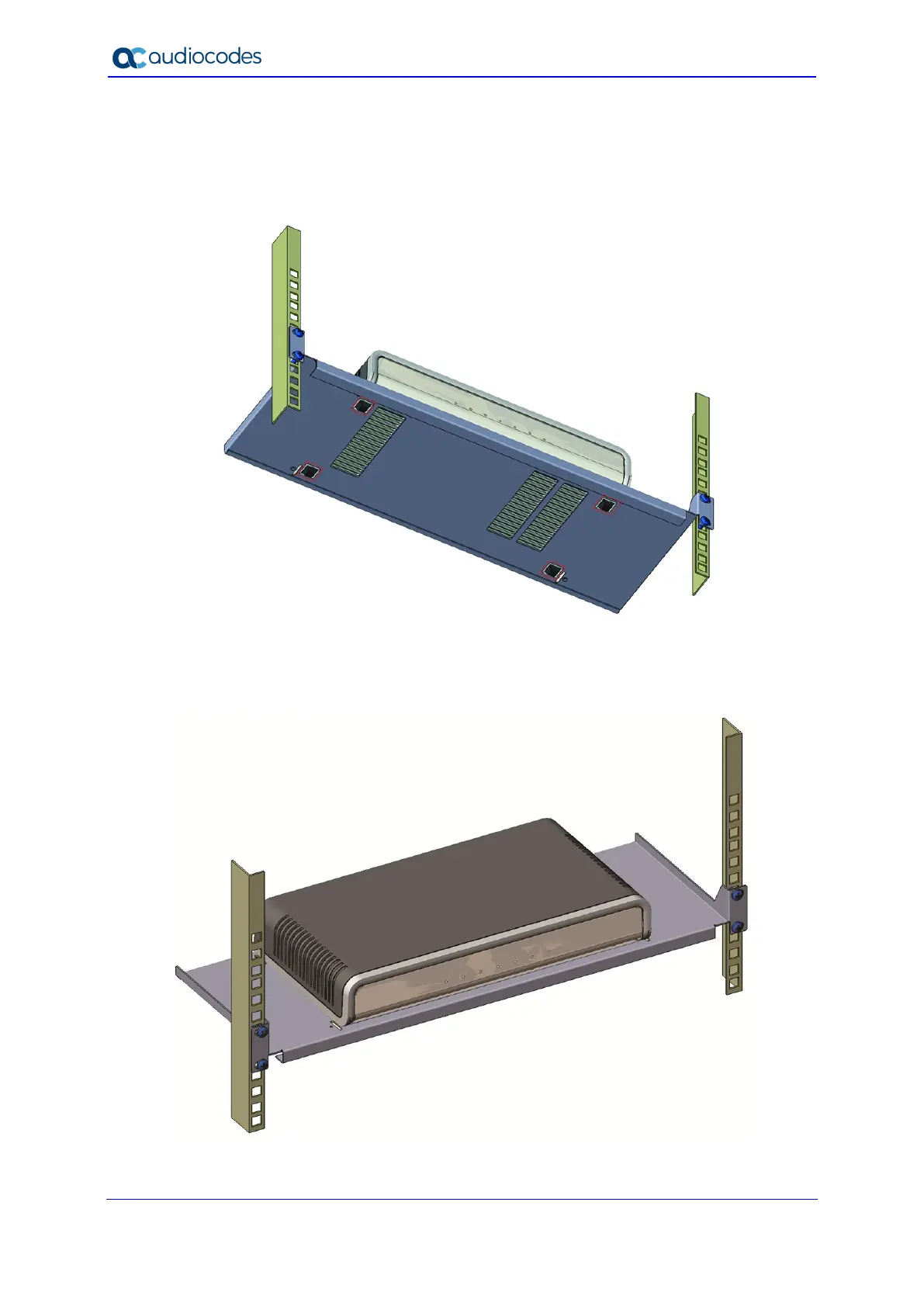

3. Place the device on the shelf so that the device's front panel faces the front of the rack
and the device's four anti-slide rubber legs (located on the bottom of the device) fit into
the four square openings on the shelf, as shown in the figure below (viewed from
underneath):
Figure 4-3: Positioning the Device's Anti-Slide Rubber Legs into Shelf's Openings
4. Make sure the device is firmly mounted on the shelf so it does not horizontally slide in
any direction:
Figure 4-4: Device Mounted on Shelf in 19-inch Rack
