To connect the device to the LAN:
1. Connect one end of a straight-through RJ-45 Cat 5e or Cat 6 cable to the LAN port,
located on the rear panel and labeled GE LAN.

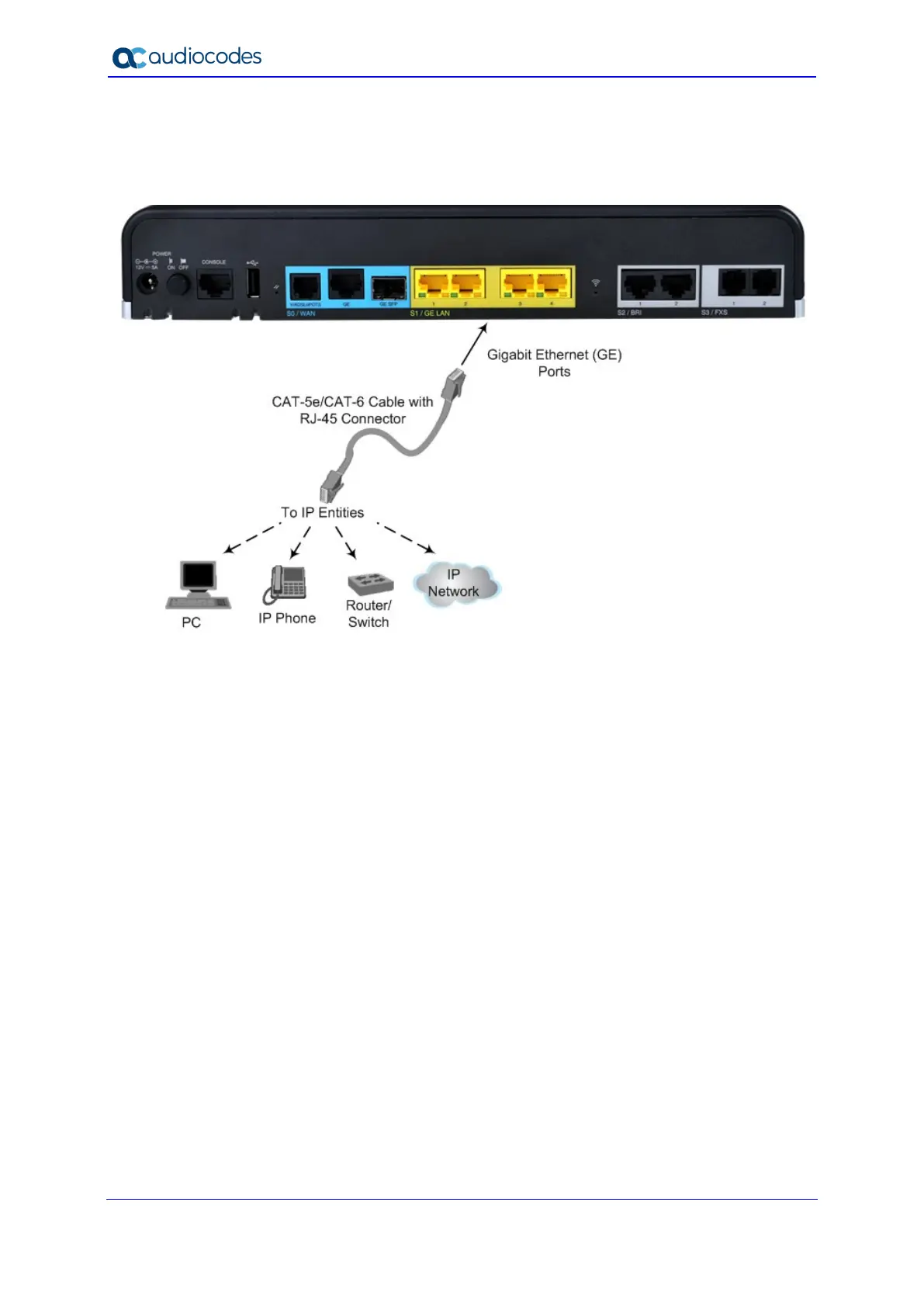

Figure 6-8: Cabling LAN Ports
2. Connect the other end of the cable to a network device or entity.
