MSBR Series 15 Mediant 500 MSBR
Hardware Installation Manual 3. Physical Description
3 Physical Description
This section provides a physical description of the device.
3.1 Physical Dimensions
The device's physical dimensions and weight are listed in the table below:
Table 3-1: Physical Dimensions
Physical Specification Value
Dimensions (H x W x D) 4.37 (1U) x 31.0 cm x 21.0 cm (1.72 x 12.2 x 8.3 in.)
Weight 2.0 kg (4.4 lbs.)
3.2 Front Panel Description
The front panel provides the telephony port interfaces, various networking ports, reset
pinhole button, and LEDs.
3.2.1 Ports and Buttons
The device's front panel is shown in the figure below and described in the subsequent
table.

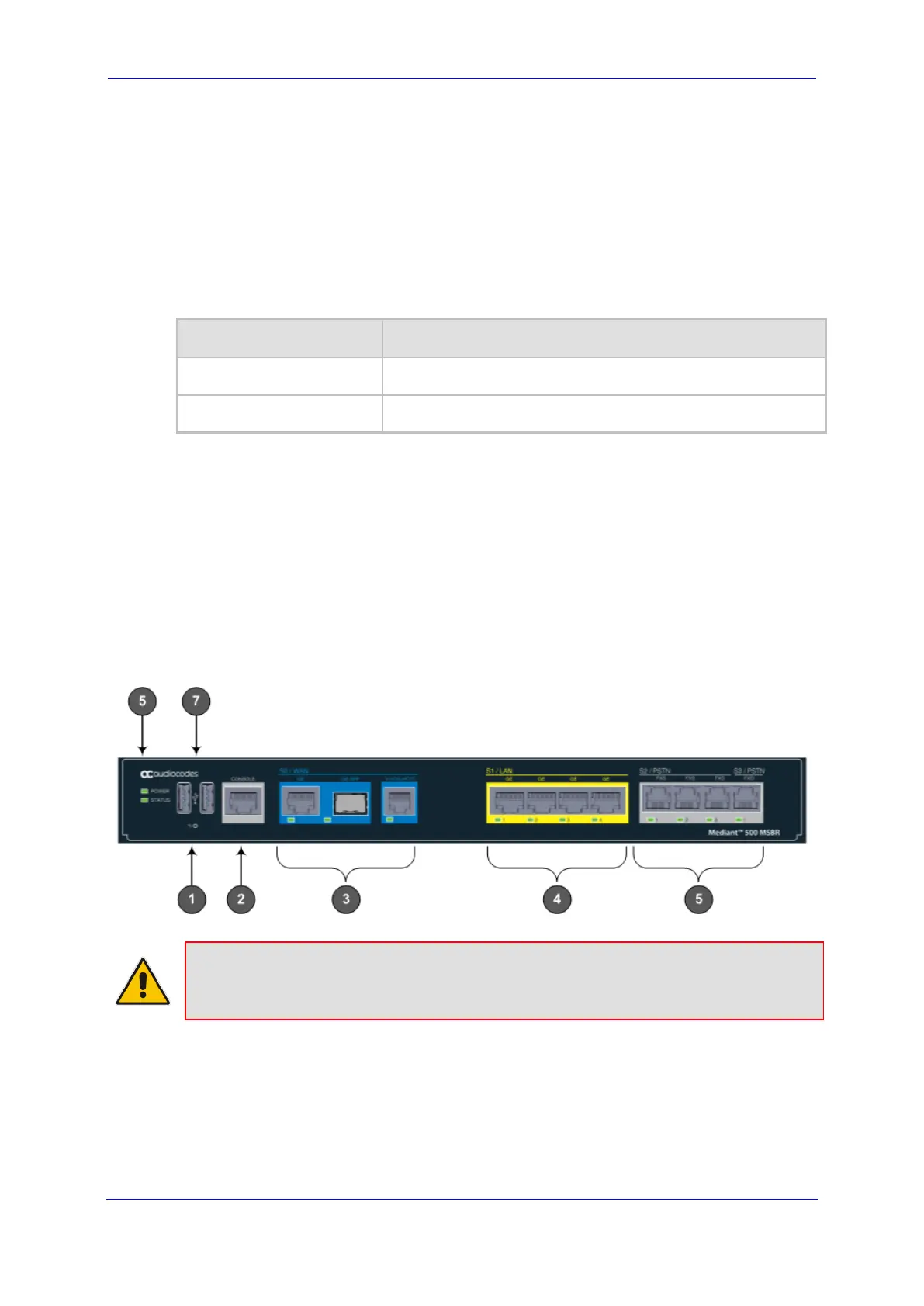

Figure 3-1: Front Panel
Note: The figure above is used only as an example. The hardware configuration
depends on the ordered model.
