MSBR Series 49 Mediant 500 MSBR
Hardware Installation Manual 5. Cabling the Device
To connect the FXO interface:
1. Connect one end of an RJ-11 cable to the FXO port (labeled FXO).

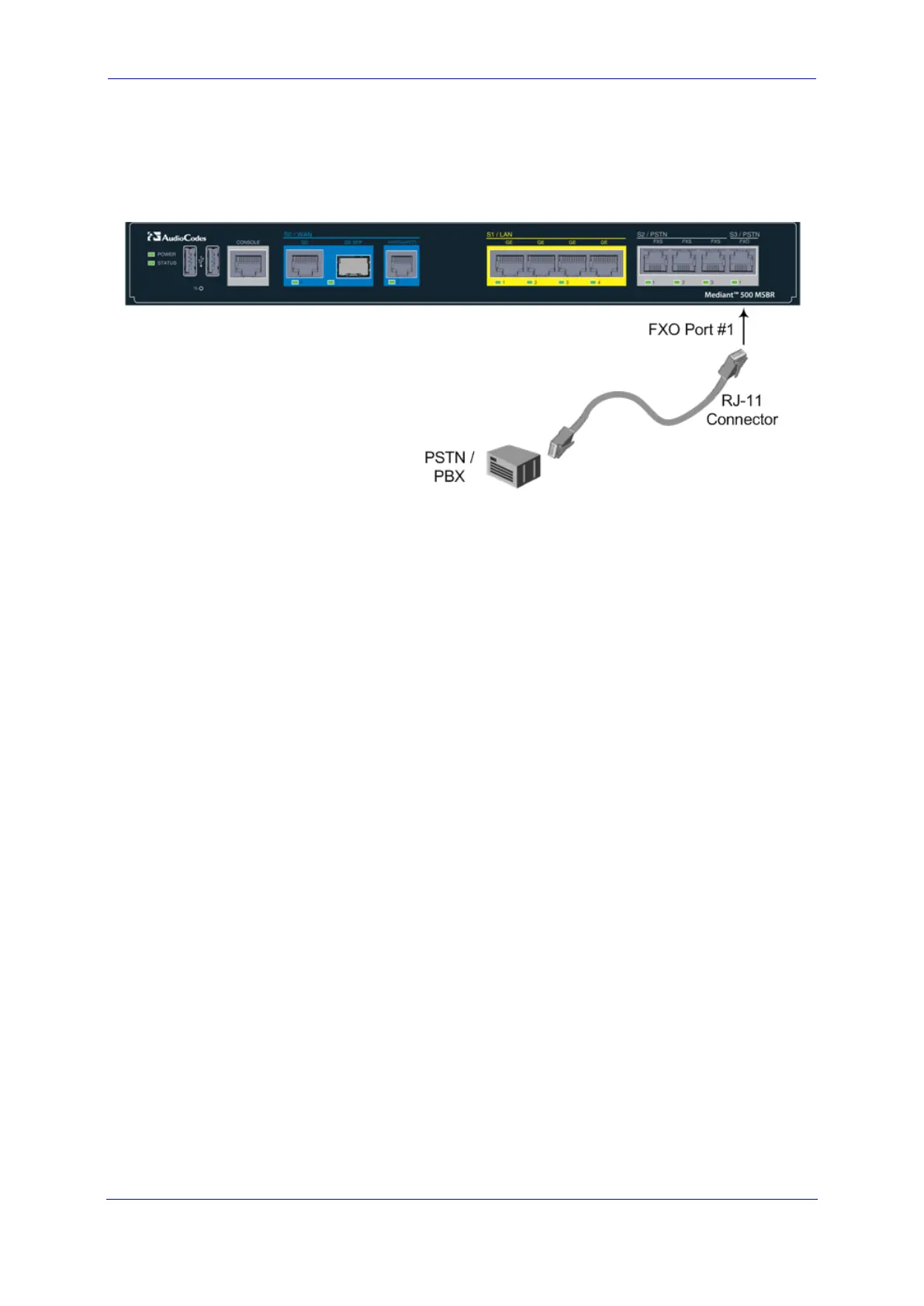

Figure 5-17: Connecting FXO Interface
2. Connect the other end of the cable to the required telephone interface: (e.g., telephone
exchange analog lines or PBX extensions).
