MSBR Series 31 Mediant 500 MSBR
Hardware Installation Manual 4. Mounting the Device
To mount the device in a 19-inch rack using mounting brackets:
1. Attach the two mounting brackets (supplied) to each side of the device's chassis, using
the supplied screws, as shown in the figure below:

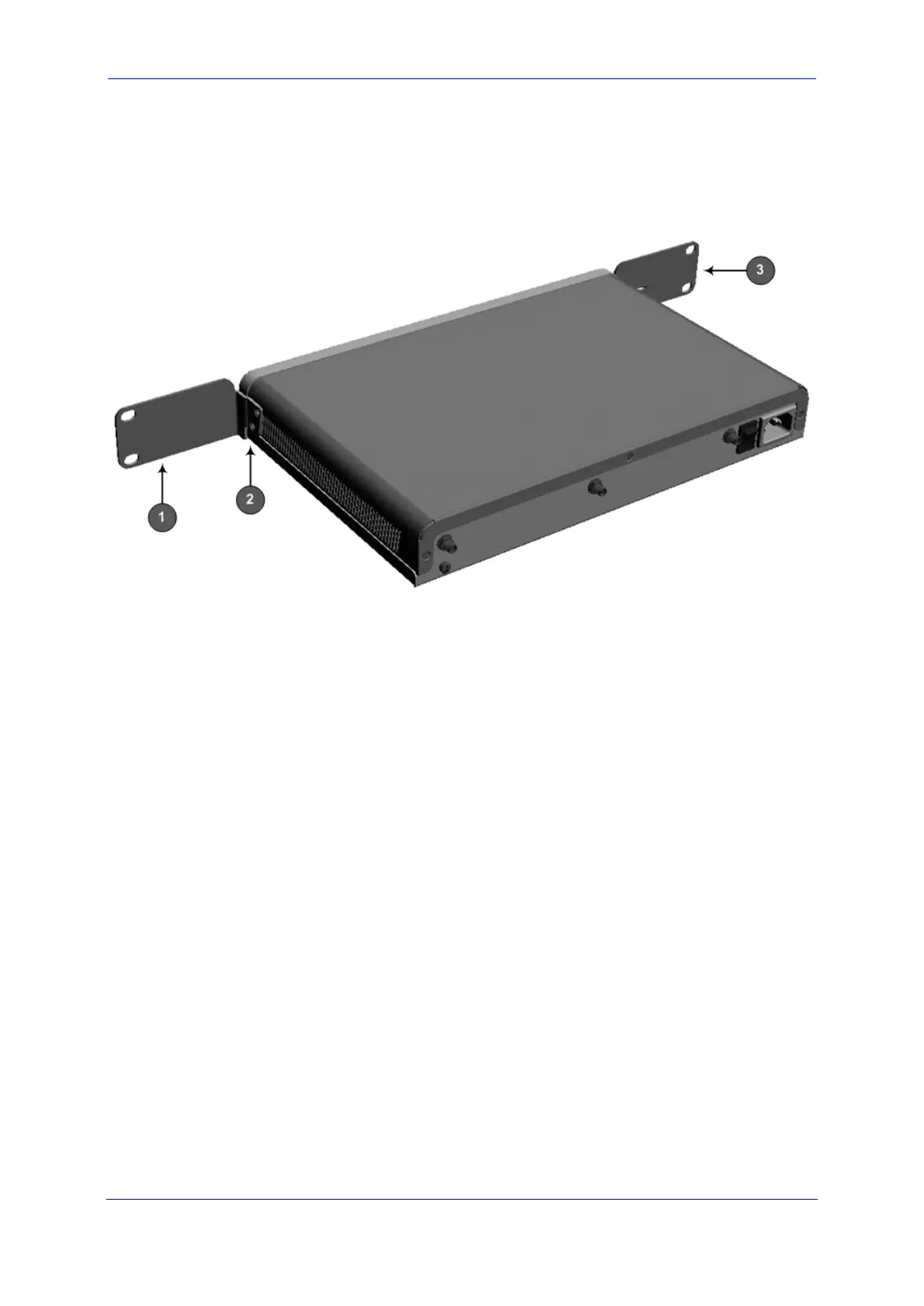

Figure 4-17: Attaching the Mounting Brackets
• 1 = Left mounting bracket
• 2 = Attached screws
• 3 = Right mounting bracket
2. Place the device on a pre-installed shelf in the rack.
3. Attach the ends of the mounting brackets (that you installed in Step 1) to the vertical
track of the rack's frame, using standard 19-inch rack bolts (not supplied).
