10. With two hands, hold the device (attached to the bracket) so that the bracket's
keyholes are facing the screw heads in the wall and that the device is orientated
according to the desired hanging position (horizontal or vertical). Gently hang the
device onto the screw heads, using the bracket's keyholes:

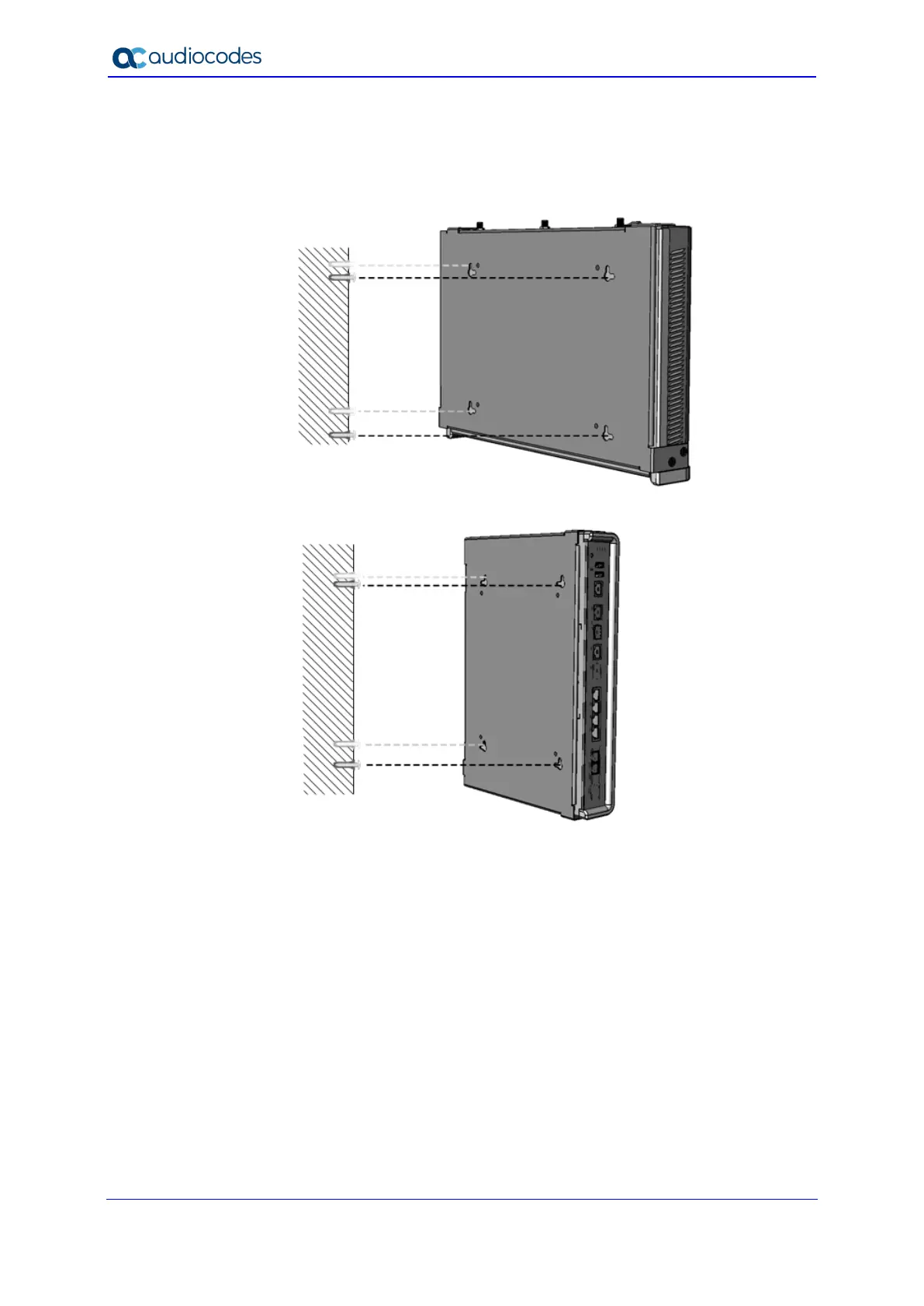

Figure 4-13: Hanging Device on Screw Heads for Horizontal Orientation
Figure 4-14: Hanging Device on Screw Heads for Vertical Orientation
