MSBR Series 25 Mediant 500 MSBR
Hardware Installation Manual 4. Mounting the Device
The distances between the keyholes depend on the orientation in which you want to
hang the device:
• Horizontal position: The horizontal distance between the keyholes is 200 mm
(7.87 in.) and the vertical distance is 135 mm (5.31 in.):

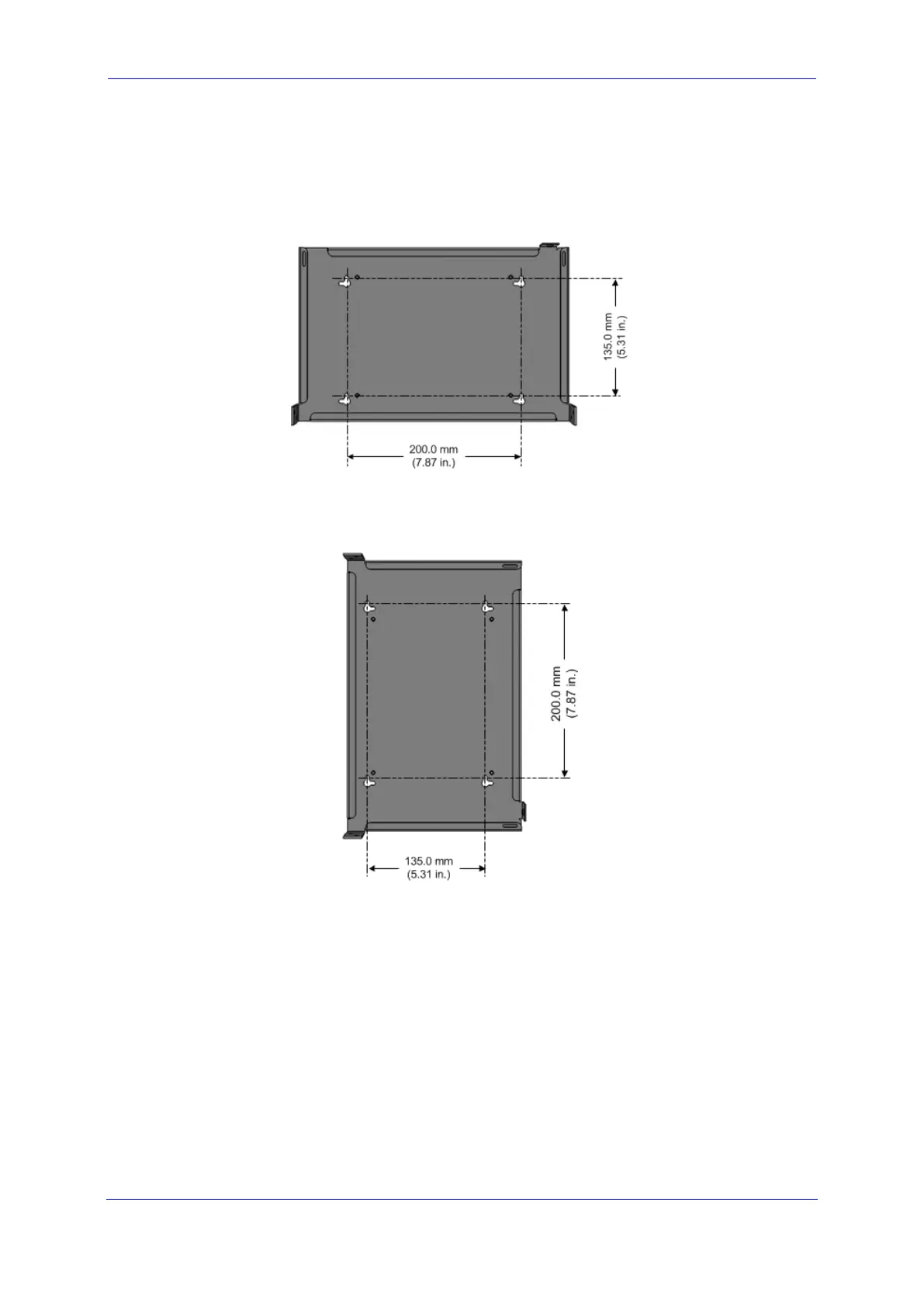

Figure 4-3: Keyhole Dimensions for Horizontal Wall-Mounting
• Vertical position: The horizontal distance between the keyholes is 135 mm (5.31
in.) and the vertical distance is 200 mm (7.87 in.):
Figure 4-4: Keyhole Dimensions for Vertical Wall-Mounting
2. Drill holes in the wall where you marked the keyholes.
3. Insert wall anchors of appropriate size into each drilled hole.
4. Thread screws (not supplied) into each of the wall anchors. The recommended screw
type is DIN 7982 3.5x25 Phillips flat head. Make sure that the heads of the screws
extend sufficiently (about 4 mm or 0.157 in.) from the wall to allow you to hang the
bracket's keyholes:
